1696140-00 Murray - 52" Mower Deck (2015)

Model: 1696140-00

Save
 Part Not Listed?Part Not Listed?
product name

52" Mower Deck - Clutch & Support Group

...
...
0080
ROD, 1/2 Dia. x 7-5/8 BS-1713578SM
...
0090
ROD, 3/8 x 8 BS-1715759SM
...
0091
PUSHNUT, CAP TYPE BS-703179
...
0092
NUT, 3/8-16 Hex Flange Esna, Black BS-703158
...
0093
SPACER, 3/8 x 3/4 x 3/4 BS-1732443SM
...
0094
SPRING, Extension, 4-1/8 BS-2156302SM
...
0095
HITCH, MOWER BS-1738040AYP
...
0100
BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2 BS-7091945YP
...
0110
CAPSCREW,3/8-16X1.75 BS-704289
...
0120
WASHER, .406X1.5X.12 BS-703591
...
0130
SPACER,1-1/2 OD BS-1714255SM
...
0200
BOLT, SQ, 3/8-16X1.75 BS-703879
...
0210
ARM, Idler, Lower BS-1735321AYP
...
0220
PULLEY, Idler BS-1736540YP
...
0240
WASHER, Flat, 3/8 x .875 BS-7091528SM
...
0320
NUT, 3/8-16 BS-703333
...
0330
ARM, Idler, Upper BS-1739585AYP
...
0340
NUT, CNTR LCK, 3/8-16 BS-703893
...
0350
SPRING, Extension, 5-1/4 BS-1715772SM
...
0370
BELT, HA SECTION 68.1 BS-1751423YP
...
0380
V-BELT, HA, 87.20 BS-1665450SM
...
0390
SPACER, 1-3/4 OD BS-1739594YP
...
0400
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
...
0410
SPACER, .39 X 1.00 X BS-5044960SM

52" Mower Deck - Height Adjust Group

...
...
0010
CAPSCREW, 3/8 x 1-3/4 G5 BS-7091553YP
...
0020
WASHER, FLAT, .406 BS-703590
...
0030
SPACER,3/8X3/4X15/16 BS-1706644SM
...
0040
NUT, Hex Flange, 3/8-16 BS-2860681SM
...
0050
NUT, 5/16-18, GR5 BS-703409
...
0060
NUT, 3/8-16 Hex Flange Esna, Black BS-703158
...
0070
BRACKET, GAUGE WHEEL BS-1736074BMYP
...
0080
GAUGE WHEEL BS-1714760SM
...
0090
BOLT-WHEEL 3/8-16X2.7 BS-2108765SM
...
0100
WASHER, 0.516IDX1OD BS-703853
...
0110
BOLT, 5/16-18X.875 BS-704065
...
0120
BRKT, GAUGE WHEEL, LH BS-1736075BMYP
...
0130
SHAFT, Rocker 52" Frame Hung BS-1751797AYP
...
0140
NUT BS-703115
...
0150
BRACKET, Frame Mount BS-1751826AYP
...
0160
ROD, ADJUSTER BS-703827
...
0170
CHAIN-LINK 06.08 - BL BS-1708088ASM
...
0180
BOLT, 5/16-18X1.25 G5 BS-703446
...
0190
STRAP, ROCKER SHAFT BS-1761690HYP
...
0200
SCREW, 5/16-18 X .75 BS-703228
...
0210
BOLT, Carriage, 3/8-16 x 1-1/4, G5 BS-1960268SM
...
0220
NUT-HEX JAM 5/16-18 BS-1920161SM
...
0230
TRUNNION, 1-11/32 LG BS-1731382SM
...
0250
CHAIN, 2 Link, 2-13/16 LG BS-1731383ASM
...
0260
WASHER, 5/16 BS-703298
...
0270
CHAIN-LINK 8.4 LG 06 BS-1708266ASM
...
0280
WASHER, 3/8" BS-1960103SM
...
0290
PIN, 3/32 X 1.6 BS-703300
...
0300
BRACKET, HOC BS-1751880AYP
...
0310
BOLT, Round Head, Short Square Neck BS-703185
...
0320
BRACKET, HOC BS-1751846AYP
...
0330
NUT, 5/16-18, GR5 BS-703409
...
0340
BOLT, SHOULDER, .255 BS-1737409YP
...
0350
BAR, Upright BS-1751799AYP
...
0360
NUT, Hex Adjusting, .990 Dia. 17/32 TH BS-1727381SM
...
0380
ARM, Pitch Adjustment, Front BS-1739691AYP
...
0390
NUT, 3/8-16 BS-703333
...
0400
NUT-HEX FLANGE 1/2-1 BS-1930644SM
...
0410
PIN, COTTER,1/16X1.31 BS-704039
...
0420
MOTOR, Electric BS-1761788YP
...
0430
PIN, SHEAR BS-703063
...
0440
SUPPORT, Rocker Shaft, 52" BS-1737011AYP
...
0450
BOLT, Round Head, Short Square Neck BS-703185
...
0460
BOLT, SQ, 3/8-16X1.75 BS-703879
...
0470
ARM, Mount, EHOC, 3/4 BS-1751801AYP
...
0480
SPACER, 5/8 OD x 13/16 L BS-7014334YP
...
0490
WASHER BS-703332
...
0500
NUT, Hex, LH Thread, 1/4-20 BS-1960757SM
...
0510
ARM, Pitch Adjustment BS-1739554AYP
...
0520
HANGER, L.H. BS-1727103ASM
...
0530
HANGER, R.H. BS-1727102ASM
...
0540
UPSTOP, Rear BS-1737219AYP

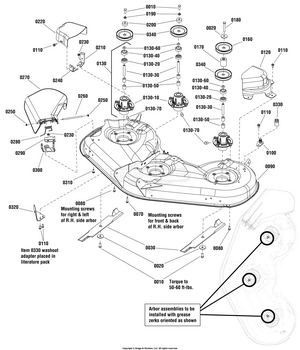

52" Mower Deck - Housing, Arbors & Blades Group

...
...
0010
CAPSCREW, Hex Head, 7/16-14 X 1 BS-1920676SM
...
0020
WASHER, SPRING 0.475I BS-1656916SM
...
0030
KIT, Mower Blade BS-1687440YP
...
0070
CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2 BS-1930600SM
...
0080
SCREW, HEX, 5/16-18X1 BS-704146
...
0090
MOWER HSG KIT, 52" BS-1687675YP
...
0100
KIT, WASHOUT PORT BS-1687721YP
...
0110
SCREW, 5/16-18 X .75 BS-703228
...
0120
COVER, Belt, L.H. BS-1736505YP
...
0130
ARBOR ASSEMBLY BS-84003175
...
0130-10
HOUSING ASSEMBLY BS-84003654
...
0130-20
BEARING, Ball, 20mm BS-1735399YP
...
0130-30
SHAFT-SPINDLE BS-1760276YP
...
0130-40
COVER, ARBOR BS-84003166
...
0130-50
SPACER, Bearing BS-1735328YP
...
0130-60
RING, SELF LOCKING BS-1960766YP
...
0130-70
ZERK, FITTING, 1/4 BS-703907
...
0160
PULLEY, 5-1/2 OD BS-1735733YP
...
0170
SPACER, Pulley, 46" Mower BS-1739567YP
...
0180
CAPSCREW-HEX HD 7/16- BS-1926110SM
...
0190
LCKWSHR,7/16,SPLIT RE BS-704007
...
0200
SPACER, Lower Drive BS-1735579YP
...
0210
BRACKET, Belt, Cover, Rear BS-1736519AYP
...
0220
COVER, Belt, R.H. BS-1735752YP
...
0230
NUT, 5/16-18, GR5 BS-703409
...
0240
BRACKET, Belt, Cover, Front BS-1736518AYP
...
0250
PUSHNUT, CAP, 5/16 BS-704028
...
0260
ROD, Deflector BS-1736366YP
...
0270
DEFLECTOR, Discharge, 46/52 BS-1687750YP
...
0280
SPRING, Torsion, Deflector, 2.16 Long BS-1736364YP
...
0290
PLATE, Deflector, Close Off BS-1737359BMYP
...
0300
HINGE, Deflector BS-1737418AYP
...
0310
BOLT, 5/16-18X.875 BS-704065
...
0320
BAFFLE BS-1737279AYP
...
0330
CONNECTOR, Washout Port BS-1756246YP
...
0340
PULLEY, Split, 4.6 OD BS-1735686YP
...
...
...
