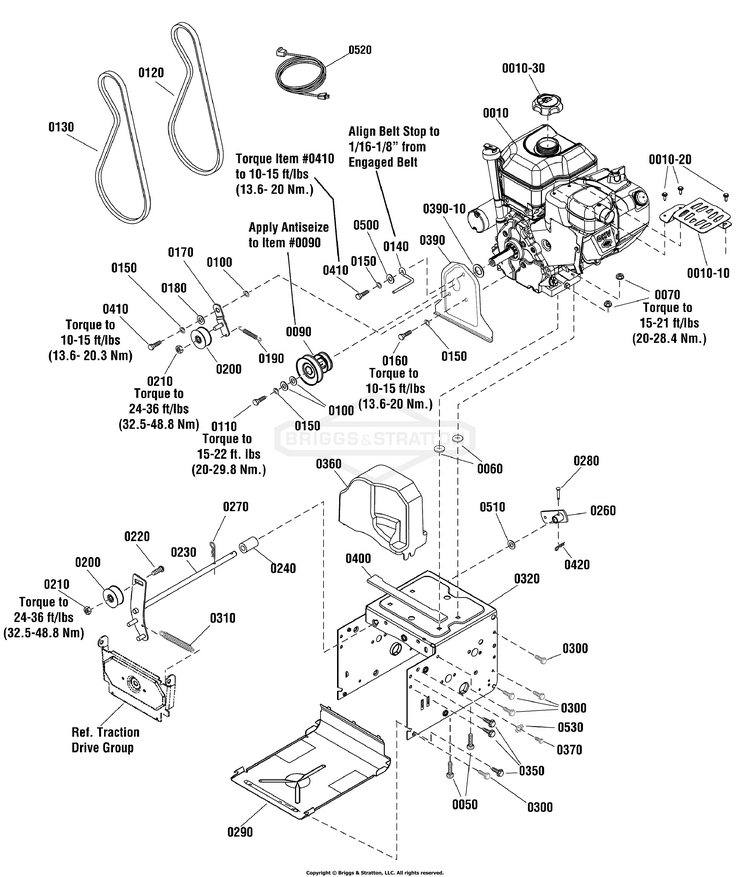

1696123 Murray - Murray 8TP 24" Dual Stage Snowthrower (2011)

Model: 1696123

Back To Assemblies

Save Part Not Listed?
product name

Engine Group

...
...
0010
* ENGINE, 8TP Briggs & Stratton, Snow Series (Engine Model: 12A113-0154-E8) BS-12A113-0154-E8
...
0010-10
GUARD, Muffler, Plate BS-797003
...
0010-20
SCREW, Hex Head, Muffler Guard BS-699234
...
0010-30
CAP, Fuel Tank BS-795027
...
0050
BOLT, 5/16-18X1.5 BS-703296
...
0060
NUT,SPEED BS-028X76MA
...
0070
NUT BS-703115
...
0090
PULLEY, Engine BS-1501109MA
...
0100
WASHER, 5/16 BS-703298
...
0110
SCREW, 5/16-24X1 3/4 BS-703299
...
0120
BELT, DRIVE BS-1733324SM
...
0130
BELT, Auger Drive, 4L 38.17 BS-1751417YP
...
0140
BELT GUIDE BS-1739070YP
...
0150
WASHER, 5/16" LOCK BS-5025170SM
...
0160
CAPSCREW, 5/16-24X.75 BS-703336
...
0170
KIT, IDLER ASEM BS-1687797YP
...
0180
BUSHING,IDLER BRKT BS-1501065MA
...
0190
SPRING,EXT IDLER 8-13 BS-165X164MA
...
0200
IDLER, Plastic Ball Bearing BS-1502120MA
...
0210
NUT, 3/18-16, GR2 BS-703230
...
0220
CARRIAGE BOLT, 3/8-16 x 1-1/4, G5 BS-1960268SM
...
0230
AUGER IDLER BS-1752397YP
...
0240
SPACER/AUGER BRKT BS-1501200MA
...
0260
ARM, Control BS-1733451SM
...
0270
PIN, 3/32 X 1.6 BS-703300
...
0280
PIN, CLEVIS, ZINC BS-703313
...
0290
COVER, Bottom BS-1753969BMYP
...
0300
SCREW, 1/4-20X0.625 BS-703054
...
0310
SPRING, Extension, Auger, 5" BS-165X159MA
...
0320
FRAME BOX BS-1751698BNYP
...
0350
SCREW, 5/16-18 X .75 BS-703228
...
0360
COVER, Belt BS-1751525YP
...
0370
SCREW, 1/4-20 X 3/4 BS-1751355YP
...
0390
PLATE, SEAL BS-1733868BMYP
...
0390-10
SEAL, Foam BS-1733898SM
...
0400
SEAL, Strip BS-1750172YP
...
0410
BOLT, HEX, 5/16-24X1 BS-703301
...
0420
PIN, Cotter, Self Locking, 1/4" BS-7023590SM
...
0500
WASHER, 5/16 BS-703302
...
0510
WASHER BS-703128
...
0520
CORD, Electric, 10FT. 110V BS-6219MA
...
0530
WASHER, Internal/External Lock 1/4" BS-7091890SM
