1696122 Murray - Murray 8TP 24" Dual Stage Snowthrower (2011)

Model: 1696122

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

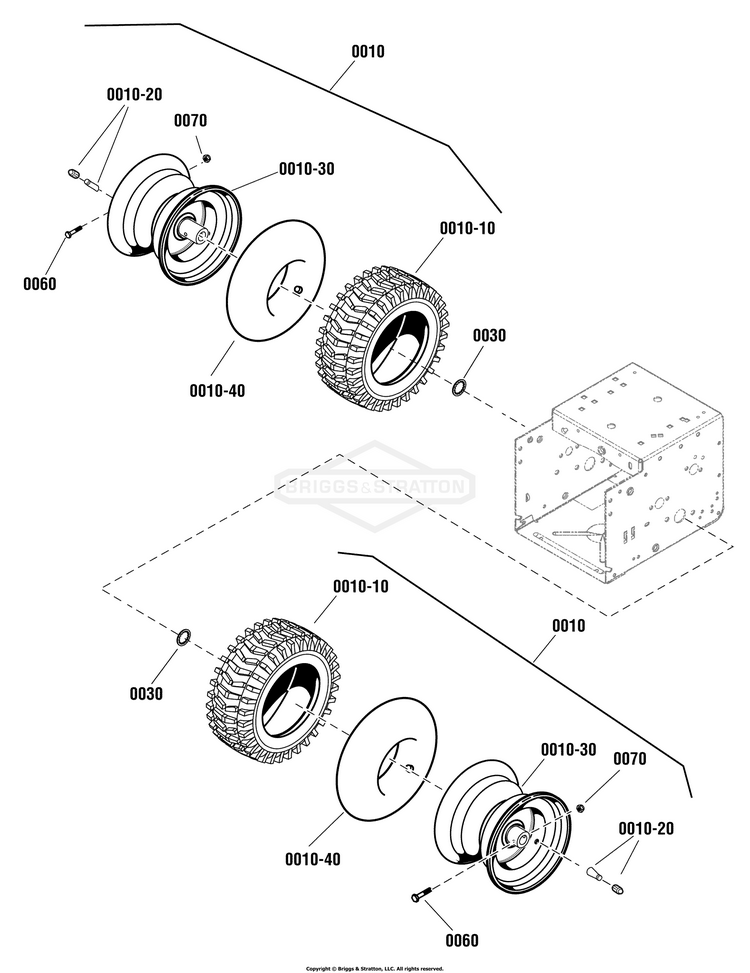

Wheel & Tire Group

...
...
0010
WHEEL & TIRE ASSEMBLY, 4.10-4, P2-407 (Includes Ref. Nos. 0010-10, 0010-20, 0010-30 & 0010-40) BS-1754488YP
...
0010-10
TIRE, 4.10-4 BS-1752426YP
...
0010-20
VALVE STM&CP,TR41 SE BS-024373MA
...
0010-40
TUBE, Tire BS-2164247SM
...
0030
RETAINING RING, Self Locking BS-1657528SM
...
0060
SCREW, SHR 1/4-20X1.7 BS-577015MA
...
0070
NUT, 1/4-20, NYLOCK BS-703232
