1696109-00 Murray - EMT17538RDF, 17.5 Gross HP 96cm Murray Rear Discharge Lawn Tractor (2012)

Model: 1696109-00

Back To Assemblies

Save Part Not Listed?
product name

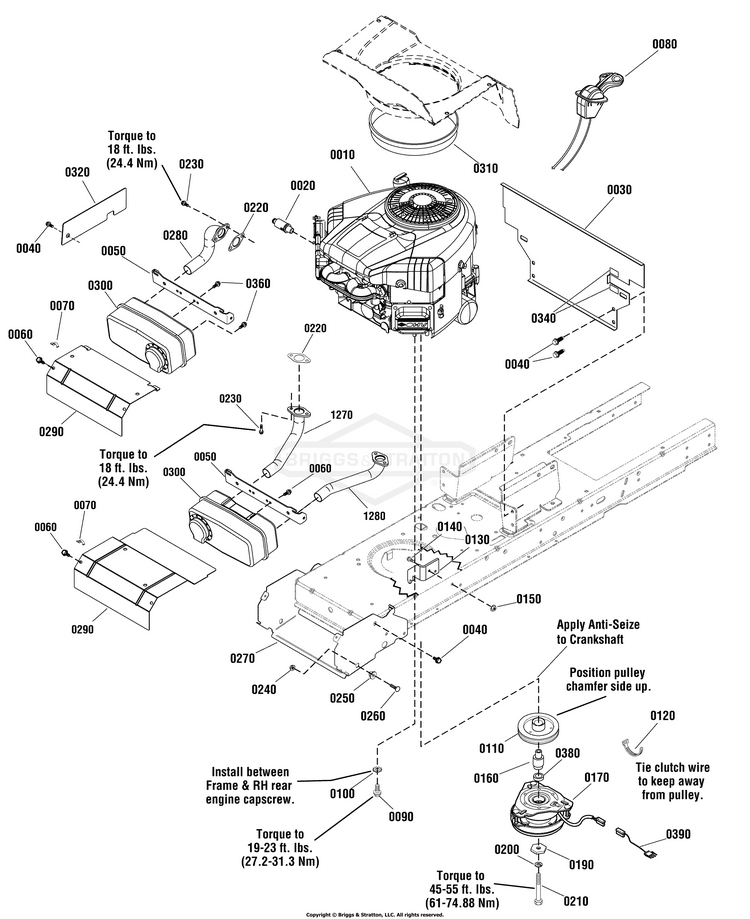

Engine Group - 17.5 Gross HP & 18 Gross HP (885676_885737)

...
...
0010
* ENGINE, 17.5 Gross HP Briggs & Stratton (Engine Model: 31G777-0194-B1) BS-31G777-0194-B1
...
0010
* ENGINE, 17.5 Gross HP Briggs & Stratton (Engine Model: 31G777-0204-B1) BS-31G777-0204-B1
...
0010
* ENGINE, 18 Gross HP Briggs & Stratton (Engine Model: 405577-0116-B1) BS-405577-0116-B1
...
0020
VALVE, Shut Off Oil Drain BS-1750159YP
...
0030
HEAT SHIELD BS-885677BMYP
...
0040
SCREW, 5/16-18.625 BS-703949
...
0050
SUPPORT, Muffler BS-1727976BMYP
...
0060
SCREW, HEX, 1/4-20X.5 (Qty 4 used on 18 Gross HP Models) BS-704130
...
0070
CLIP- WIRE DIA .390 BS-2172434SM
...
0080
THROTTLE CONTROL, Choke-A-Matic (Used on 17.5 Gross HP Models) BS-1751734YP
...
0080
THROTTLE CONTROL, Double (Used on 18 Gross HP Models) BS-1727817SM
...
0090
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1 BS-704000
...
0100
WASHER, EXT, 3/8 BS-703864
...
0110
PULLEY & HUB ASSEMBLY, Engine BS-1732576SM
...
0120
TIE, Self Locking BS-1701011SM
...
0130
BRACKET, Electric Clutch Torque BS-885535AYP
...
0140
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
0150
NUT, 5/16-18, GR5 BS-703409
...
0160
SPACER, Electric Clutch BS-885679YP
...
0170
CLUTCH, Electric (Used before Serial No. 2015765318) BS-885443YP
...
0170
CLUTCH, Electric (Used after Serial No. 2015765319) BS-885680YP
...
0190
WASHER, HEX, 0.453ID BS-1708264SM
...
0200
LCKWSHR,7/16,SPLIT RE BS-704007
...
0210
CAPSCREW, Hex Head, 7/16-20 x 5 BS-7102075YP
...
0220
GASKET, Exhaust (Qty 2 used on 18 Gross HP Models) BS-690970
...
0230
SCREW (Qty 4 used on 18 Gross HP Models) BS-690341
...
0240
NUT, 5/16-18, GR5 BS-703409
...
0250
PIVOT, Hood BS-1728086SM
...
0260
BOLT, CRRG, 5/16-18X1 BS-703800
...
0270
BRACKET, Muffler BS-1727982ASM
...
0280
EXHAUST PIPE, Single (Used on 17.5 Gross HP Models) BS-1728959SM
...
0290
HEAT SHIELD, Outer Single (Used on 17.5 Gross HP Models) BS-7300918ASM
...
0290
HEAT SHIELD, Twin (Used on 18 Gross HP Models) BS-1727997ASM
...
0300
MUFFLER, Single (Used on 17.5 Gross HP Models) BS-885615YP
...
0300
MUFFLER, Twin (Used on 18 Gross HP Models) BS-1727994SM
...
0310
EDGING, Rubber, Single (Used on 17.5 Gross HP Models) BS-1734166SM
...
0310
EDGING, Rubber, Twin (Used on 18 Gross HP Models) BS-1731970SM
...
0320
GUARD, Pulley BS-1736025BMYP
...
0340
TRIM BS-7070814SM
...
0360
SCREW, 5/16-18.625 BS-703949
...
0380
SPACER, Lower (Used before Serial No. 2015765318) BS-885810YP
...
0380
SPACER, Electric Clutch (Used after Serial No. 2015765319) BS-885427YP
...
0390
HARNESS, Ogura (Used after Serial No. 2015765319) BS-885815YP
...
1270
EXHAUST PIPE, RH (Used on 18 Gross HP Models) BS-1727979SM
...
1280
EXHAUST PIPE, LH (Used on 18 Gross HP Models) BS-1727980SM
