1696109-00 Murray - EMT17538RDF, 17.5 Gross HP 96cm Murray Rear Discharge Lawn Tractor (2012)

Model: 1696109-00

Back To Assemblies

Save Part Not Listed?
product name

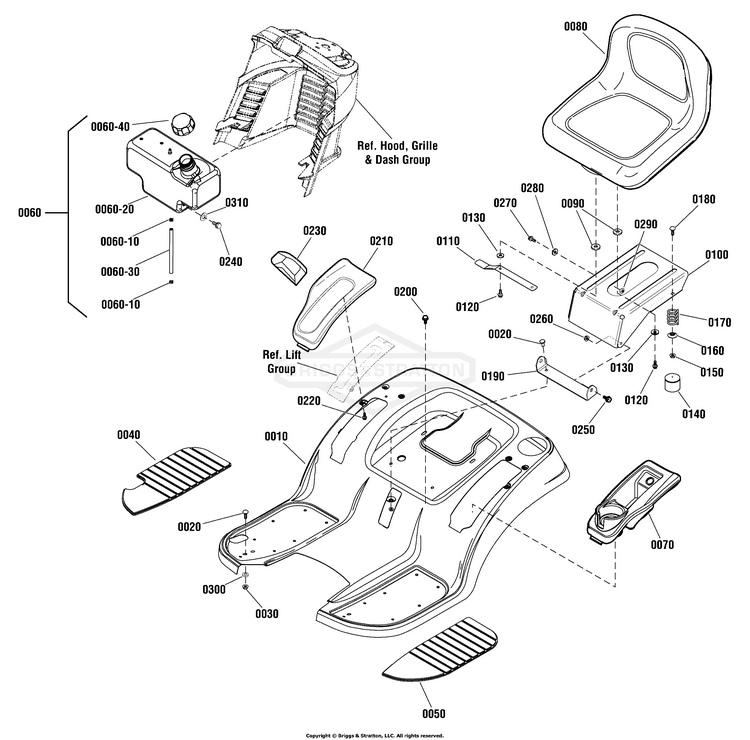

Seat Deck & Fuel Tank Group (885776)

...
...
0010
DECK, Seat BS-885687BIYP
...
0020
BOLT, Round Head, Short Square Neck BS-703185
...
0030
NUT, 5/16-18, GR5 BS-703409
...
0040
PAD, Footrest, RH BS-1739014YP
...
0050
PAD, Footrest, LH BS-1739013YP
...
0060
FUEL TANK ASSEMBLY (Includes Ref. Nos. 0060-10, 0060-20, 0060-30 & 0060-40) BS-885548YP
...
0060-10
CLAMP, Hose BS-791850
...
0060-30
HOSE, Fuel BS-7200118YP
...
0060-40
FUEL CAP BS-092317MA
...
0070
POD, LH BS-1739536YP
...
0080
SEAT, Lo Back BS-1730158SM
...
0090
SPACER, 5/16 ID x 1-1/4 OD x 5/16 BS-1731300SM
...
0100
SUPPORT, Seat BS-1727265SM
...
0110
LATCH-SEAT 20GA HUNTE BS-1727268SM
...
0120
SCREW-HEX WZ LOCK FLN BS-1960667SM
...
0130
WASHER, 5/16 BS-703298
...
0140
COVER, Spring BS-1704724SM
...
0150
NUT BS-703115
...
0160
WASHER, Spring, 5/16 x 1 1/4 BS-1709256SM
...
0170
SPRING, Compression BS-1704728SM
...
0180
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
0190
PIVOT, Seat BS-885538AYP
...
0200
SCREW, 5/16-18.625 BS-703949
...
0210
POD, RH BS-1739538YP
...
0220
SCREW, HEX WSHR HD PL BS-1960536SM
...
0230
GRIP BS-1722302SM
...
0240
CAPSCREW, 1/4-20X0.5 BS-703818
...
0250
BOLT, 5/16-18X1.15 BS-703851
...
0260
NUT BS-703115
...
0270
CAPSCREW, Hex Head, 1/2-13 x 1, G5 BS-1923114SM
...
0280
WASHER, 0.516IDX1OD BS-703853
...
0290
NUT, Hex, 1/2-13 BS-5025038SM
...
0300
WASHER, Rubber BS-885382YP
...
0310
WASHER, 1/4 BS-703229
