1696109-00 Murray - EMT17538RDF, 17.5 Gross HP 96cm Murray Rear Discharge Lawn Tractor (2012)

Model: 1696109-00

Back To Assemblies

Save Part Not Listed?
product name

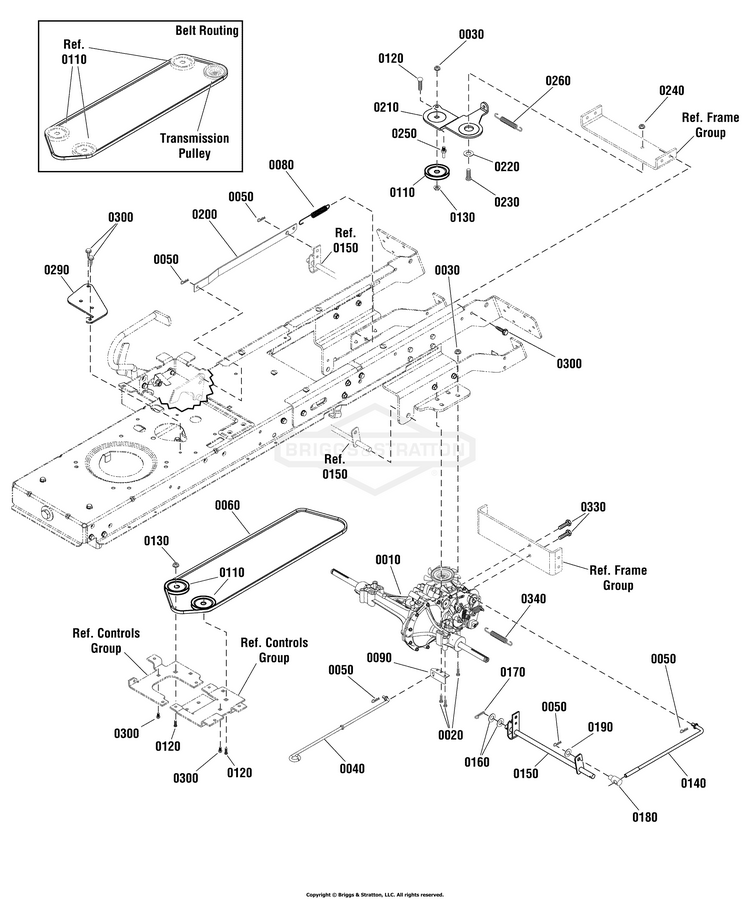

Transmission Group - Hydro Gear 324-0610 (885706)

...
...
0010
* TRANSMISSION, Hydro Gear, 610 BS-885528YP
...
0020
CAPSCREW,5/16-18X2.75 BS-703869
...
0030
NUT, 5/16-18, GR5 BS-703409
...
0040
LEVER, Roll Release BS-885436YP
...
0050
PIN, 13X1.19 BS-703430
...
0060
BELT, Secondary (81.37" EL, HA section) BS-885495YP
...
0080
SPRING, Extension BS-165X75MA
...
0090
BRACKET, Roll Release BS-7300701ZYP
...
0110
PULLEY, Idler BS-1760012YP
...
0120
BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2 BS-1931352SM
...
0130
NUT, CNTR LCK, 3/8-16 BS-703893
...
0140
SPEED CONTROL, Short Link BS-885476YP
...
0150
SPEED CONTROL ASSEMBLY BS-885477AYP
...
0160
WASHER, Flat, 13/16 BS-017X91MA
...
0170
PIN, 3/32 X 1.6 BS-703300
...
0180
NUT, Adjusting BS-021920ZMA
...
0190
WASHER, FLAT .406X.81 BS-71072MA
...
0200
LINK, Speed Control BS-885480AYP
...
0210
BRACKET, Idler, Rear BS-885409AYP
...
0220
SPACER-PIVOT 0.330ID BS-1727935SM
...
0230
BOLT, CRRG, 5/16-18X1 BS-703800
...
0240
NUT, 5/16-18, GR5 BS-703409
...
0250
BELT GUIDE BS-885077YP
...
0260
SPRING, Extension BS-1731939SM
...
0290
PLATE, Front Fixed Idler BS-885681BMYP
...
0300
SCREW, 5/16-18 X .75 BS-703228
...
0330
SCREW, 5/16-18 X .75 BS-703228
...
0340
SPRING, Extension BS-165X92MA
