1696109-00 Murray - EMT17538RDF, 17.5 Gross HP 96cm Murray Rear Discharge Lawn Tractor (2012)

Model: 1696109-00

Back To Assemblies

Save Part Not Listed?
product name

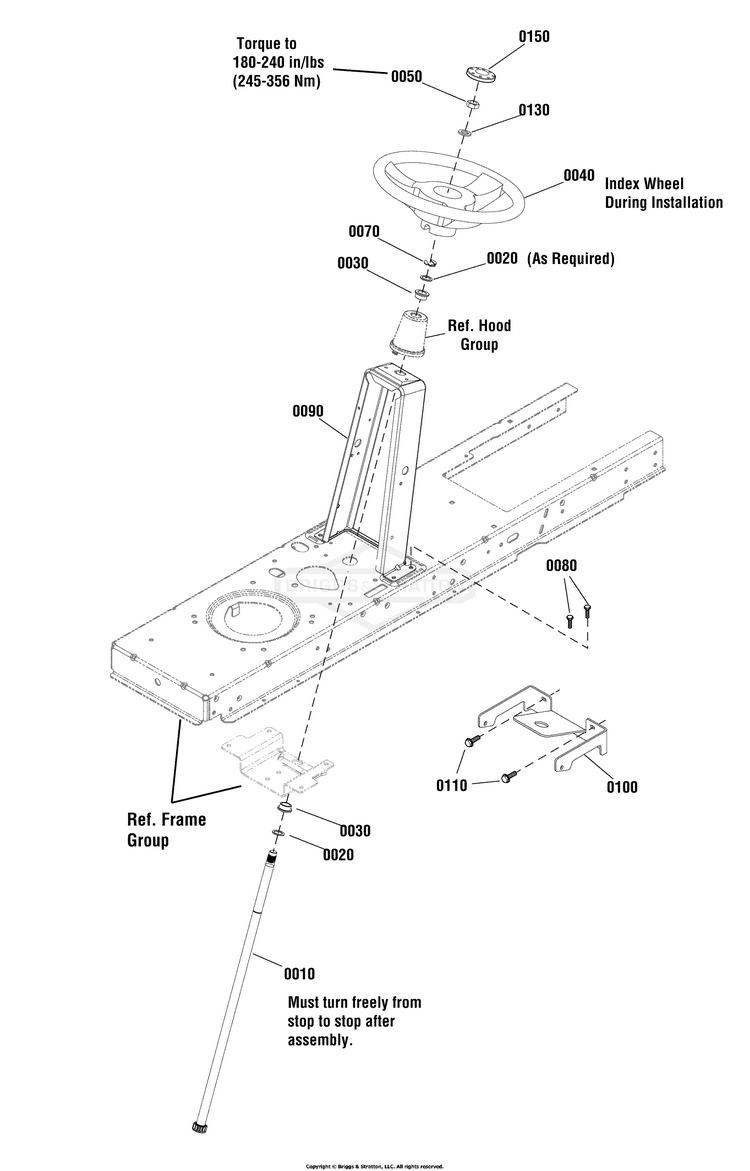

Steering Group (885553)

...
...
0010
SHAFT, Steering Gear & Spline BS-1727813SM
...
0020
WSHR BS-703151
...
0030
BUSHING, Steering BS-1729665SM
...
0040
STEERING WHEEL BS-1728069SM
...
0050
NUT, Hex Lock, ESNA Light, 5/8-18 BS-1960576SM
...
0070
RING, Klipring Extension BS-1611710SM
...
0080
SCREW, 5/16-18.625 BS-703949
...
0090
TOWER, RDLT BS-885835BMYP
...
0100
BRACKET, Tank BS-7300653ZYP
...
0110
SCREW, HEX, 1/4-20X.5 BS-704130
...
0130
WASHER, 5/8 BS-703580
...
0150
CAP, Steering Wheel BS-1725024SM
