1696109-00 Murray - EMT17538RDF, 17.5 Gross HP 96cm Murray Rear Discharge Lawn Tractor (2012)

Model: 1696109-00

Back To Assemblies

Save Part Not Listed?
product name

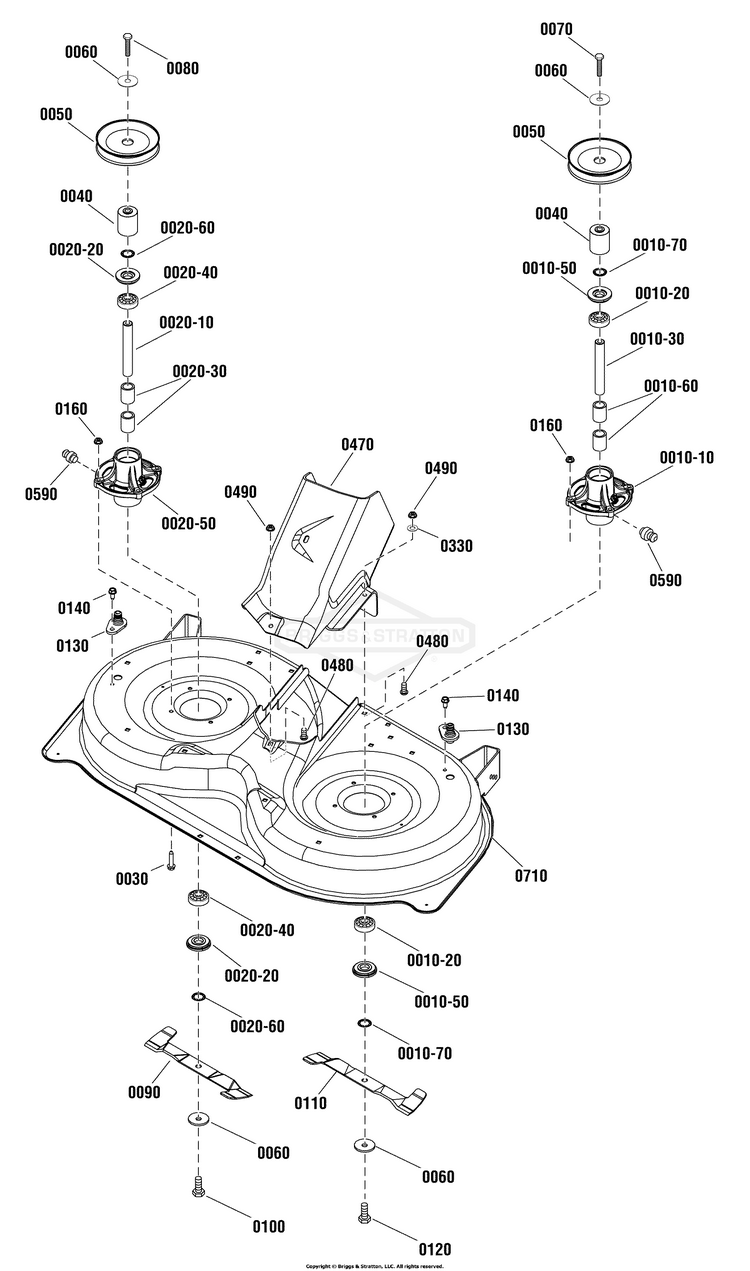

96cm Mower Deck - Housing, Arbors & Blade Group (885709a)

...
...
0010-10
HOUSING ASSEMBLY BS-84003654
...
0010-20
BEARING, Ball, 20mm BS-1735399YP
...
0010-30
SHAFT, SPINDLE BS-84003170
...
0010-50
COVER, ARBOR BS-84003166
...
0010-60
SPACER, Bearing BS-1735328YP
...
0010-70
RING, SELF LOCKING BS-1960766YP
...
0020-10
SHAFT-SPINDLE BS-1760279YP
...
0020-20
COVER, ARBOR BS-84003166
...
0020-30
SPACER, Bearing BS-1735328YP
...
0020-40
BEARING, Ball, 20mm BS-1735399YP
...
0020-50
HOUSING ASSEMBLY BS-84003654
...
0020-60
RING, SELF LOCKING BS-1960766YP
...
0030
CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2 BS-1930600SM
...
0040
SPACER, Mower Drive BS-1750338YP
...
0050
PULLEY, Deep Groove BS-1737835YP
...
0060
WASHER, SPRING 0.475I BS-1656916SM
...
0070
CAPSCREW-HEX HD 7/16- BS-1926110SM
...
0080
SCREW, 7/16-14X2.75 BS-703846
...
0090
BLADE, RH BS-1758511BMYP
...
0100
SCREW, 7/16-14X1 BS-703845
...
0110
BLADE, LH, 19.5" BS-885419BZYP
...
0120
CAPSCREW, Hex Head, 7/16-14 X 1 BS-1920676SM
...
0130
KIT, WASHOUT PORT BS-1687721YP
...
0140
SCREW, 5/16-18 X .75 BS-703228
...
0160
NUT, 5/16-18, GR5 BS-703409
...
0330
WASHER, 5/16 BS-1919326SM
...
0470
DECK, Center Cap BS-885460YP
...
0480
BOLT, Round Head, Short Square Neck BS-703185
...
0490
NUT, 5/16-18, GR5 BS-703409
...
0590
ZERK, FITTING, 1/4 BS-703907
...
0710
KIT-MOWER DECK BS-709692
