1696109-00 Murray - EMT17538RDF, 17.5 Gross HP 96cm Murray Rear Discharge Lawn Tractor (2012)

Model: 1696109-00

Back To Assemblies

Save Part Not Listed?
product name

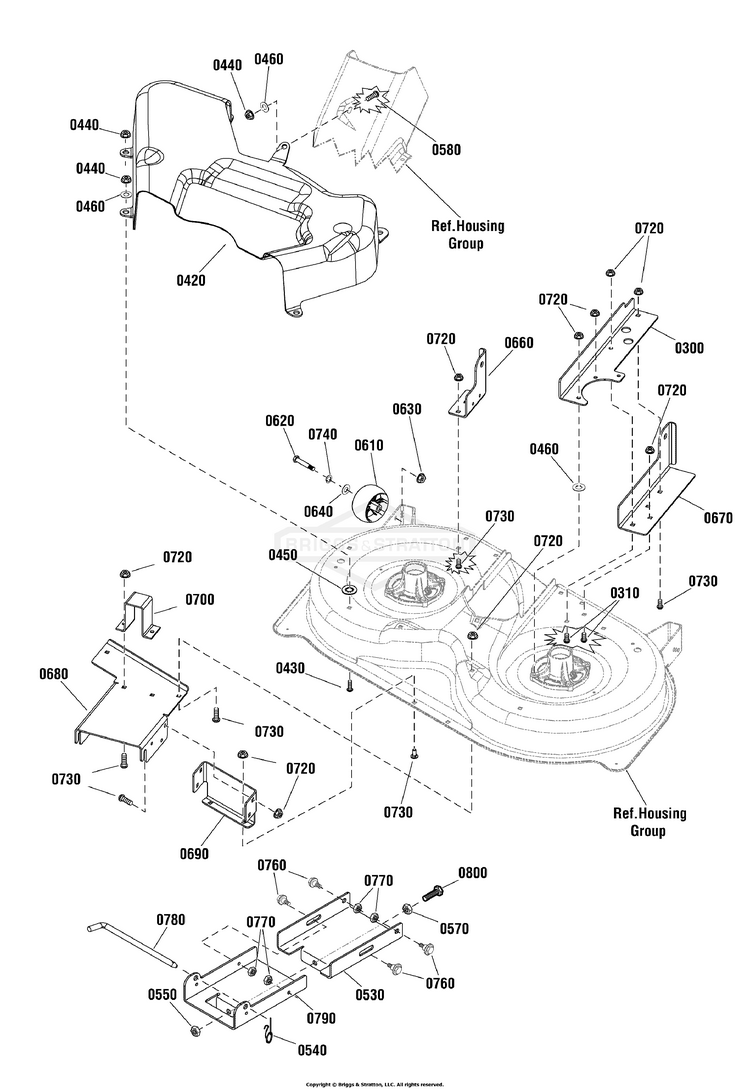

96cm Mower Deck - Support Group (885709c)

...
...
0300
BRACKET, Rear Lift, LH BS-885526AYP
...
0310
BOLT, Round Head, Short Square Neck BS-703185
...
0420
COVER, Pulley BS-885543YP
...
0430
BOLT, Round Head, Short Square Neck BS-703185
...
0440
NUT, 5/16-18, GR5 BS-703409
...
0450
RETAINER, GR5, 5/16 BS-703297
...
0460
WASHER BS-703332
...
0530
BRACKET, Front Connector BS-885734BMYP
...
0540
PIN, 5/16 X 0.375 BS-703852
...
0550
NUT, Hex Lock, 1/2-13 BS-1960379SM
...
0570
NUT, Hex Jam, 1/2-13 BS-1913744SM
...
0580
BOLT BS-703159
...
0610
GAUGE WHEEL BS-1714760SM
...
0620
BOLT-WHEEL 3/8-16X2.7 BS-2108765SM
...
0630
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
0640
WASHER, 0.516IDX1OD BS-703853
...
0660
BRACKET, Deck, Rear BS-885462AYP
...
0670
BRACKET, Rear Lift, LH BS-885463AYP
...
0680
SUPPORT, Deck Front BS-885738BMYP
...
0690
BRACKET, Front Support BS-885740BMYP
...
0700
BRACKET, Front Upstop BS-885519AYP
...
0720
NUT, 5/16-18, GR5 BS-703409
...
0730
BOLT, Round Head, Short Square Neck BS-703185
...
0740
WASHER,SPRING .52X.99 BS-0020X3MA
...
0760
BOLT-SHLDR 5/16-18 0. BS-1732426SM
...
0770
NUT, 5/16-18, GR5 BS-703409
...
0780
ROD, Latch BS-1731414SM
...
0790
BRACKET, Front Hanger BS-885699BMYP
...
0800
BOLT, 1/2 x 3 BS-885710YP
