1696109-00 Murray - EMT17538RDF, 17.5 Gross HP 96cm Murray Rear Discharge Lawn Tractor (2012)

Model: 1696109-00

Back To Assemblies

Save Part Not Listed?
product name

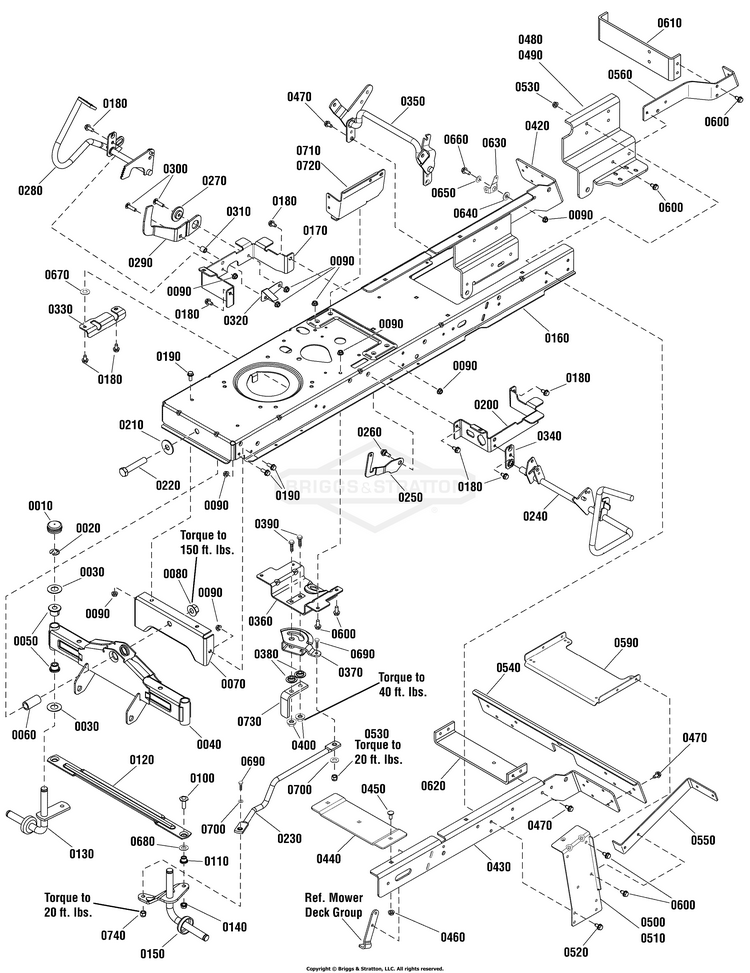

Frame & Front Axle Group (885707)

...
...
0010
HUB CAP BS-094618MA
...
0020
RING, E .750D .050T BS-0011X3MA
...
0030
WASHER, Flat 1-3/4 BS-17X195MA
...
0040
AXLE, Front BS-885693YP
...
0050
BUSHING-0.765IDX BS-2176440SM
...
0060
SPACER, 5/8 ID x 1 OD x 2" BS-1738193YP
...
0070
PLATE, Axle Support BS-1727902SM
...
0080
NUT, Hex Flange, 5/8-11 BS-2860646SM
...
0090
NUT, 5/16-18, GR5 BS-703409
...
0100
SCREW, Hex Head, 3/8-16 x 1 1/4 BS-1960032SM
...
0110
SPACER-0.385IDX0 BS-1611705SM
...
0120
TIE ROD, 1/4" extrusion BS-1751964BMYP
...
0130
SPINDLE & CUP ASSEMBLY, R.H. BS-1727872ASM
...
0140
NUT, Hex, Flange, Locking, 3/8-16 BS-1930645
...
0150
SPINDLE & ARM ASSEMBLY, L.H. BS-1751922YP
...
0160
FRAME BS-885656BMYP
...
0170
SUPPORT, Front Footrest, RH BS-1759842BMYP
...
0180
SCREW, 5/16-18.625 BS-703949
...
0190
SCREW, 5/16-18 BS-703354
...
0200
SUPPORT, Front Footrest L.H. BS-885536AYP
...
0210
WASHER-0.625(0.64IDX1 BS-1960035SM
...
0220
CAPSCREW, Hex Head, 5/8-11 x 3 1/4 BS-2860744SM
...
0230
LINK, Drag BS-1738051YP
...
0240
PEDAL ASSEMBLY, Brake BS-885694YP
...
0250
LATCH, Brake Lock BS-1735595ASM
...
0260
BOLT, 5/16-18X1.15 BS-703851
...
0270
SPACER-PIVOT 0.330ID BS-1727935SM
...
0280
PEDAL ASSEMBLY, Forward BS-1736714AYP
...
0290
PEDAL, Reverse BS-1727246SM
...
0300
BOLT, 5/16-18X1.25 G5 BS-703446
...
0310
SPACER, Foot Pedal BS-1728024SM
...
0320
ACTUATOR, RMO Switch BS-1728025BMYP
...
0330
BRACKET, PEDAL PIVOT BS-885591YP
...
0340
PLATE, Bearing BS-1727911ASM
...
0350
LIFT SHAFT ASSEMBLY BS-1758772YP
...
0360
BRACKET, Sector Support BS-1727940SM
...
0370
GEAR, Steering BS-1751110YP
...
0380
SPACER, Sector Gear BS-1728122SM
...
0390
SCREW, Hex Head, 3/8-16 x 1 1/4 BS-1960032SM
...
0400
NUT, Hex Flange, Two Way Lock, 3/8-16 BS-1930645
...
0420
BRACKET, Rear Frame, RH BS-885508AYP
...
0430
BRACKET, Rear Frame, LH BS-885509AYP
...
0440
BRACE, Middle Cross BS-885532AYP
...
0450
BOLT, Round Head, Short Square Neck BS-703185
...
0460
NUT, 5/16-18, GR5 BS-703409
...
0470
SCREW, 5/16-18 X .75 BS-703228
...
0480
BRACKET, Transaxle, RH BS-885474AYP
...
0490
BRACKET, Transaxle, LH BS-885475AYP
...
0500
SUPPORT, Deck, R.H. BS-885411AYP
...
0510
SUPPORT, Deck, L.H. BS-885412AYP
...
0520
BOLT BS-5025011X8FS
...
0530
NUT, 5/16-18, GR5 BS-703409
...
0540
BRACKET, Middle Back Plate BS-885469AYP
...
0550
SUPPORT, Upper, Back Plate BS-885466AYP
...
0560
SUPPORT, Lower, Back Plate BS-885467AYP
...
0590
BRACE, Cross Deck Support BS-885503AYP
...
0600
SCREW, 5/16-18 X .75 BS-703228
...
0610
BRACKET, Torque BS-885441AYP
...
0620
BRACKET, Idler Mount BS-885486AYP
...
0630
CLEVIS, Lift BS-1728990ASM
...
0640
SPACER-PIVOT 0.330ID BS-1727935SM
...
0650
WASHER-0.312(0.33IDX1 BS-1960044SM
...
0660
BOLT BS-5025011X8FS
...
0670
WASHER BS-703332
...
0680
WASHER, 5/8 BS-1960703SM
...
0690
CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G5 BS-1921977
...
0700
WASHER, 5/16 BS-703302
...
0710
BRACKET, Tower Support, LH BS-885695BMYP
...
0720
BRACKET, Tower Support, RH BS-885696BMYP
...
0730
UPSTOP BS-885791YP
...
0740
NUT, HEX FLNG,5/16-18 BS-704067
