1696109-00 Murray - EMT17538RDF, 17.5 Gross HP 96cm Murray Rear Discharge Lawn Tractor (2012)

Model: 1696109-00

Back To Assemblies

Save Part Not Listed?
product name

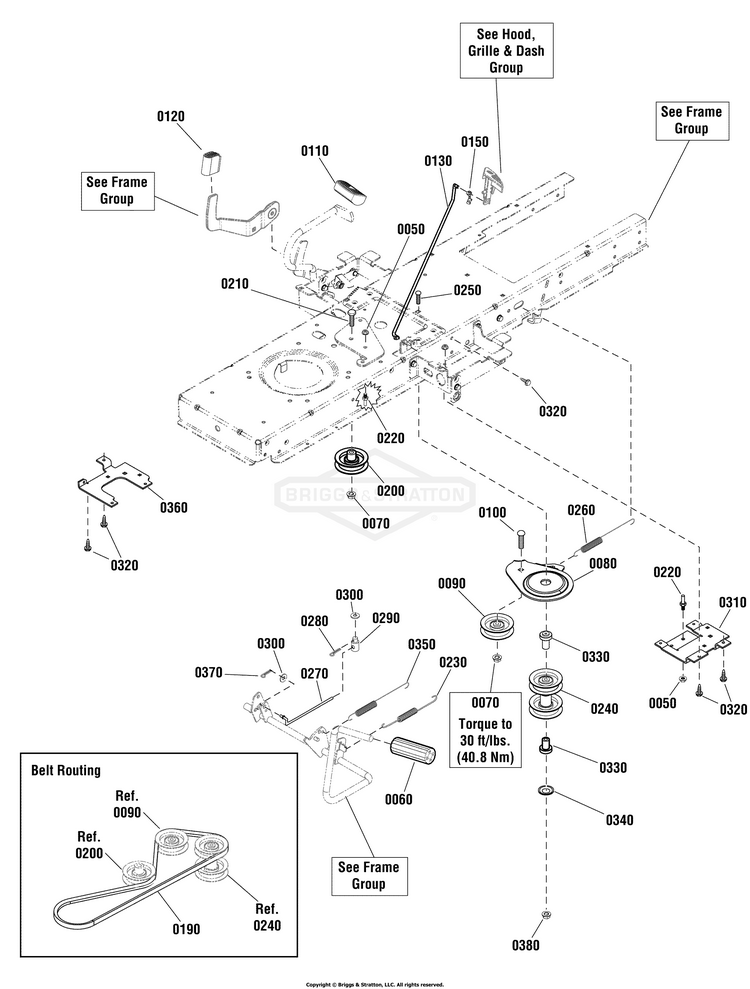

Controls Group (885682)

...
...
0050
NUT, 5/16-18, GR5 BS-703409
...
0060
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
0070
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
0080
BRACKET, Idler Front Movable BS-885410AYP
...
0090
PULLEY, Idler BS-1760012YP
...
0100
BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2 BS-1931352SM
...
0110
PAD, Foot Pedal Forward BS-1721675SM
...
0120
PAD, Foot Pedal, Reverse BS-1727259SM
...
0130
ROD, Parking Brake, 16-3/8" BS-1727267SM
...
0150
CLIP, Linkage, Black BS-1728111SM
...
0190
BELT, Primary, M/D BS-885484YP
...
0200
IDLER, Backside BS-885565YP
...
0210
CAPSCREW, Hex Head, 3/8-16 x 1-3/4, G5 BS-1921971
...
0220
BELT GUIDE BS-885534YP
...
0230
SPRING, Extension BS-885421YP
...
0240
PULLEY, Secondary Stack BS-885426YP
...
0250
BOLT, Carriage, 3/8-16 x 5 BS-885577YP
...
0260
SPRING, Extension 7-1/2" BS-1729620SM
...
0270
ROD, Clutch BS-885683YP
...
0280
PIN, COTTER 1/8 X 1.2 BS-7091809YP
...
0290
NUT, Adjusting BS-021920ZMA
...
0300
WASHER, 3/8" BS-1960103SM
...
0310
BRACKET, Stack Pulley, Left BS-885684BMYP
...
0320
SCREW, 5/16-18 X .75 BS-703228
...
0330
SPACER BS-885575YP
...
0340
RETAINER, PUSHNUT,3/8 BS-703986
...
0350
SPRING, Extension, 5/8 x 6-5/8 BS-1721995SM
...
0360
BRACKET, Stack Pulley, Right BS-885685BMYP
...
0370
PIN, COTTER, 3/32X.75 BS-703312
...
0380
NUT, CNTR LCK, 3/8-16 BS-703893
