1696092 Murray - 42" Snow Blade

Model: 1696092

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

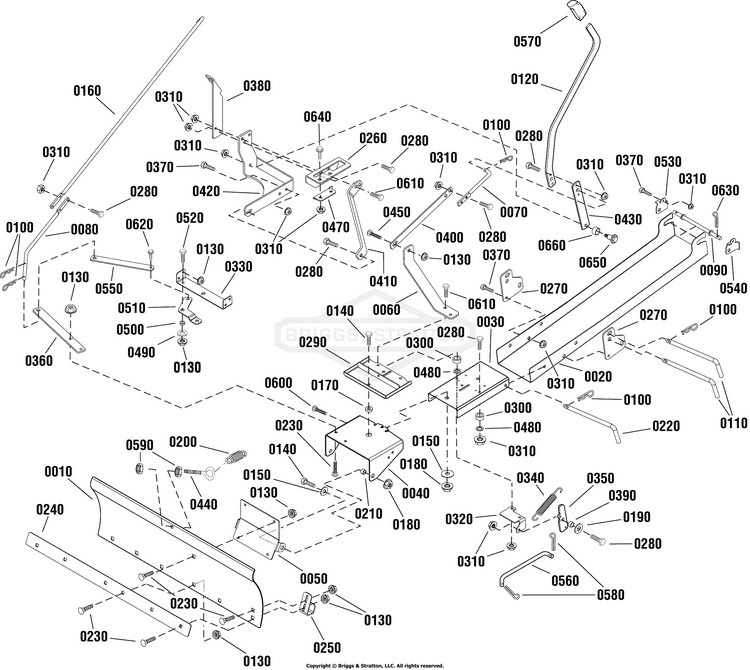

42" Snow Blade (1696092)

...
...
0010
BLADE, Snow BS-1730075ASM
...
0020
SUBFRAME BS-1752376AYP
...
0030
HITCH, Lift 12GA BS-1730077ASM
...
0040
HITCH, Pivot BS-1730078ASM
...
0050
PLATE, Backer BS-1730079ASM
...
0060
SUPPORT, Blade Lift BS-1752421AYP
...
0070
ROD, Lift BS-1752607YP
...
0080
ROD, Angle Lift BS-1752418YP
...
0090
ROD, Rear Support BS-1752371YP
...
0100
PIN, HAIR, .0915 X 1-7/8 BS-5025210YP
...
0110
ROD, Latch BS-1731414SM
...
0120
ARM, Lift BS-1752360AYP
...
0130
NUT, 3/8-16 BS-703333
...
0140
CAPSCREW, Hex Head, 1/2-13 x 1-1/4, G5 BS-1921176SM
...
0150
WASHER, Plain, 1/2 x 1-3/8 OD BS-1918431
...
0160
ROD, Blade Angle BS-1753678YP
...
0170
SPACER BS-1719683SM
...
0180
NUT, HEX FLNG, 1/2-13 BS-703918
...
0190
WASHER, 5/16 BS-703298
...
0200
SPRING BS-2101126SM
...
0210
SPACER BS-1709235SM
...
0220
ROD, Latch BS-1715758SM
...
0230
BOLT, RD SQ 3/8-16X1 BS-703815
...
0240
BAR, Scraper BS-1731351ASM
...
0250
SHOE, Skid BS-1731352ASM
...
0260
QUADRANT, Lift BS-1752362AYP
...
0270
SUBFRAME, Front Mounting BS-1752417AYP
...
0280
BOLT BS-5025011X8FS
...
0290
BRACKET/BRACE ASSEMBLY, 42" Blade BS-1732454ASM
...
0300
SPACER BS-1666697SM
...
0310
NUT BS-703115
...
0320
BRACKET, Latch BS-1731360ASM
...
0330
BRACKET, Cross, 42" Snow Blade, 10GA BS-1732594ASM
...
0340
SPRING, Extension, 4-1/8 BS-2156302SM
...
0350
LATCH, Blade BS-1732756ASM
...
0360
PLATE, Blade Mounting BS-1752419AYP
...
0370
CAPSCREW, 5/16-18X.75 BS-704287
...
0380
SUPPORT, Blade Angling BS-1752662AYP
...
0390
SPACER BS-1703900SM
...
0400
BAR, Lift BS-1752610AYP
...
0410
BRACE, Lift Support BS-1752609AYP
...
0420
SUPPORT ASSEMBLY, Lift BS-1752448AYP
...
0430
ARM, Blade Lift BS-1752412AYP
...
0440
EYEBOLT BS-1675198SM
...
0450
SHOULDER BOLT, 3/8-16 BS-7014981SM
...
0470
WEAR BRACKET BS-1752801AYP
...
0480
RETAINER, GR5, 5/16 BS-703297
...
0490
WASHER, .406X1.5X.12 BS-703591
...
0500
SPACER, 25/64 x 5/8 x 3/16 BS-1663752SM
...
0510
LEVER, Latch 7GA 42" Snow Blade BS-1732147ASM
...
0520
CAPSCREW, 3/8-16 x 7/8 BS-1921966SM
...
0530
HITCH BRACKET, Rear RH BS-1752369AYP
...
0540
HITCH BRACKET, Rear LH BS-1752370AYP
...
0550
BAR BS-1761858CKYP
...
0560
LINK BS-1732355SM
...
0570
GRIP BS-1722302SM
...
0580
PIN, COTTER, 3/32X.75 BS-703312
...
0590
HN, 5/16C GR5 YZ BS-7091511SM
...
0600
BOLT, 3/8-16X.75 G5 BS-703448
...
0610
SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5, Black BS-1921977
...
0620
BOLT-SHLDR 5/16-18 0. BS-1732426SM
...
0630
PIN, COTTER, 1/8X1 BS-703795
...
0640
BOLT, 5/16-18X.625 G5 BS-703447
...
0650
BOLT, Shoulder 5/16-18, G5 BS-1732412SM
...
...
...
