1696028 Murray - Murray 9TP 27" Dual Stage Snowthrower (2011)

Model: 1696028

Save Part Not Listed?

Popular Parts

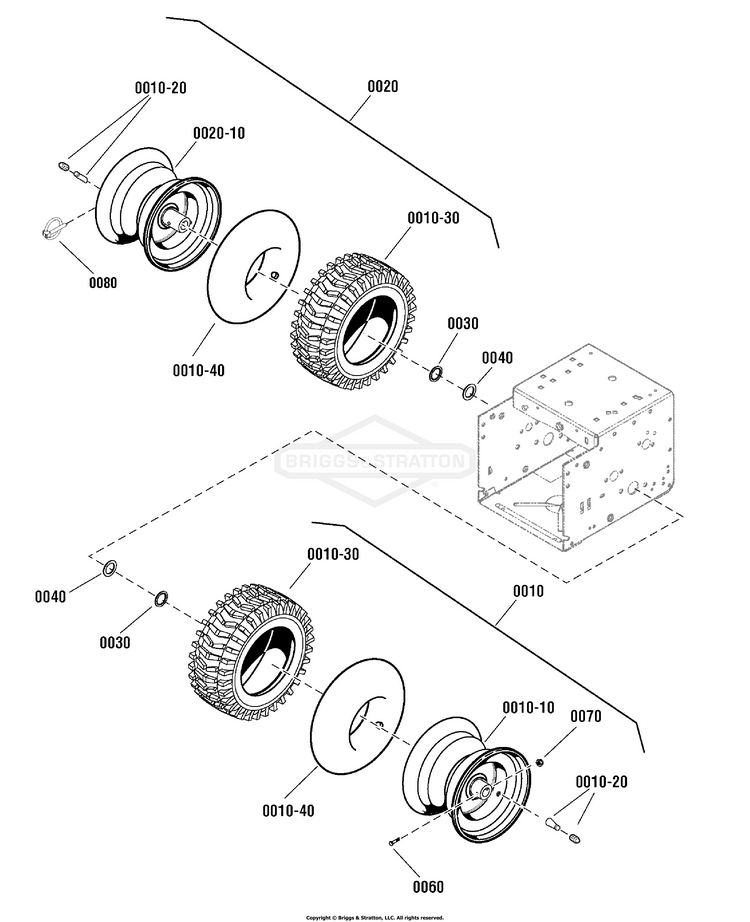

0010

WHEEL & TIRE ASSEMBLY, 16 x 4.8-8, LH (Includes Ref. Nos. 0010-10, 0010-20, 0010-30 & 0010-40) BS-1751296YP

0010-20

VALVE STM&CP,TR41 SE BS-024373MA

0010-30

TIRE, 4.80 - 8 BS-1751298YP

0010-40

TUBE, Tire BS-2164247SM

0020

WHEEL & TIRE ASSEMBLY, 16 x 4.8-8, RH (Includes Ref. Nos. 0020-10, 0010-20, 0010-30 & 0010-40) BS-1751297YP

0030

RING, Retaining BS-1657528SM

0040

WASHER, Flat, 3/4 BS-712120MA

0060

SCREW, SHR 1/4-20X1.7 BS-577015MA

0070

NUT, 1/4-20, NYLOCK BS-703232

0080

KLIK PIN ASSY BS-500016MA
