1695979 Murray - Murray 8TP 24" Dual Stage Snowthrower (2011)

Model: 1695979

Back To Assemblies

Save Part Not Listed?
product name

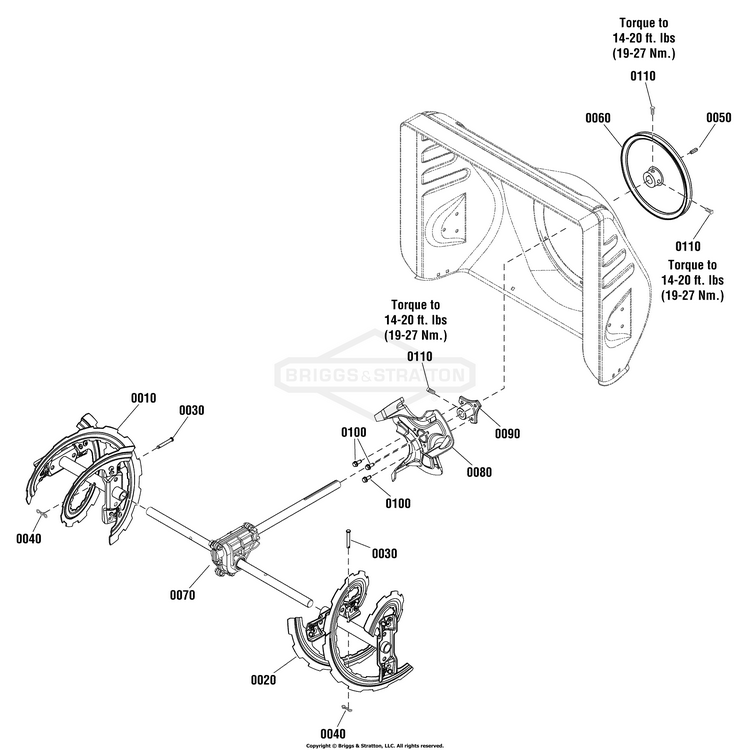

Auger Drive Group

...
...
0010
AUGER ASSEMBLY, RH BS-1752081BJYP
...
0020
AUGER ASSY - LH, VL B BS-1752067BMYP
...
0030
PIN, SHEAR BS-703063
...
0040
PIN, BOW TIE, 3/16 BS-703060
...
0050
KEY,SQUARE 3/16 X 3/4 BS-2001022MA
...
0060
PULLEY, AUGER BS-1752220YP
...
0070
GEAR CASE ASSEMBLY, 24" BS-1753221YP
...
0080
Impeller BS-1751348BMYP
...
0090
HUB, Impeller BS-1739073YP
...
0100
SCREW, 5/16-18X.5 BS-703985
...
0110
SETSCREW, Square Head, 5/16-18 x 5/8, G8 BS-1930540SM
...
0120
SPACER,FRICTION PULLE BS-1501158MA
