1695969 Murray - Snowthrower, Single Stage, 42"

Model: 1695969

Save Part Not Listed?
product name

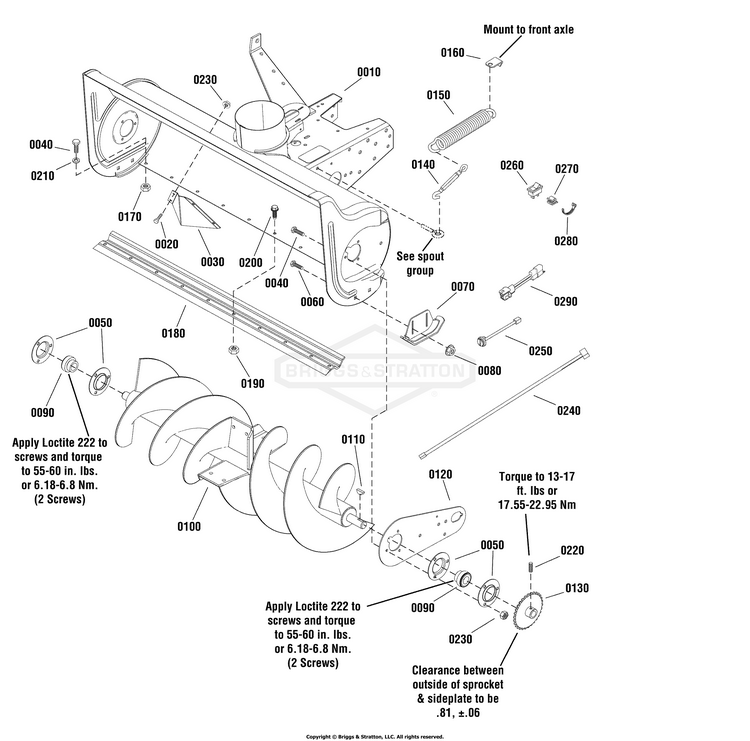

Body & Rotor Group

...
...
0010
BODY & FRAME ASSEMBLY, 42" BS-1732806ASM
...
0020
CAPSCREW,5/16-18X.625 BS-703822
...
0030
DEFLECTOR BS-2106774ASM
...
0040
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
0050
FLANGE, Bearing, (SN 1200 and above) BS-2172278ASM
...
0060
BOLT, 3/8-16X.75 G5 BS-703448
...
0070
SKID ASSEMBLY, with Wear Strip BS-1713424ASM
...
0080
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
0090
BEARING, Ball 1.002ID 2.049OD 1.09 LG BS-1733105SM
...
0100
ROTOR ASSEMBLY, 42" BS-1721840ASM
...
0110
KEY, Hi-Pro, HP-608 BS-2151040SM
...
0120
PLATE, Side BS-1676632ASM
...
0130
Rotor Sprocket BS-2106653SM
...
0140
TURNBUCKLE, 5/16 - 19 x 9-1/4 BS-1733145SM
...
0150
SPRING,COMPRESSION BS-1675232SM
...
0160
CLIP, Spring BS-1732992ASM
...
0170
NUT BS-703164
...
0180
SCRAPER, Body (1690513 Only) 42" BS-2106746ASM
...
0190
NUT, 1/4-20 BS-703251
...
0200
BOLT, Hex, 1/4-20 x 5/8 BS-001X38MA
...
0210
WASHER BS-703332
...
0220
SCREW, Square Head Set, 5/16-18 x 1/2 G8 BS-1928721SM
...
0230
NUT, 5/16-18, GR5 BS-703409
...
0240
HARNESS, Wiring Spout Rotate, 42" BS-1733262SM
...
0250
HARNESS, Wiring Motor/Trailer, 42" BS-1733276SM
...
0260
SWITCH, Rocker, Chute Rotator BS-1724210SM
...
0270
CLIP- WIRE DIA .390 BS-2172434SM
...
0280
TIE, Self Locking BS-1701011SM
...
0290
HARNESS, Spout Rotator to Tractor BS-1751630YP

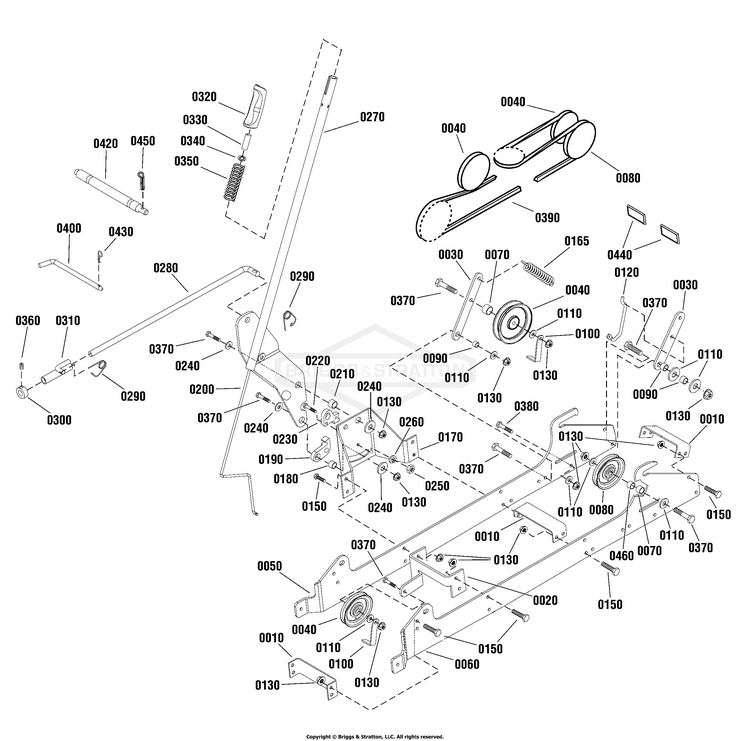

Drive & Hitch Group

...
...
0010
BRACE BS-1733050ASM
...
0020
FRONT CROSS RAIL BS-1732629ASM
...
0030
ARM, Pivot BS-1731341ASM
...
0040
PULLEY, IDLER-V BS-5103788YP
...
0050
SIDE PLATE, RH BS-1732508ASM
...
0060
SIDE PLATE, LH BS-1732507ASM
...
0070
SPACER BS-1667812SM
...
0080
PULLEY & BEARING ASMY BS-1666287ASM
...
0090
SPACER-0.385IDX0 BS-1611705SM
...
0100
STOP, Belt BS-2162115ASM
...
0110
WASHER BS-704128
...
0120
StOP, Belt BS-1732562SM
...
0130
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
0150
HHCS,3/8-16X1.250,GR8 BS-703969
...
0165
SPRING, Extension BS-1716853SM
...
0170
BRACKET, Handle BS-1733010ASM
...
0180
SPACER-0.390IDX0.750O BS-1733068SM
...
0190
LOCK, Lift, Powdered Metal BS-1722112SM
...
0200
ROD, Latch BS-1733018SM
...
0210
SPACER, Pivot .39 ID BS-1733031SM
...
0220
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
0230
QUADRANT, Lift, Powdered Metal BS-1721581SM
...
0240
WASHER, .406X1.5X.12 BS-703591
...
0250
HN, 5/16C GR5 YZ BS-7091511SM
...
0260
WASHER, 5/16" LOCK BS-5025170SM
...
0270
HANDLE, Weldment BS-1733061ASM
...
0280
ROD, Lift BS-1733088SM
...
0290
PIN, 5/16 X 0.375 BS-703852
...
0300
COLLAR BS-703150
...
0310
TUBE & PIN ASSEMBLY BS-1723115SM
...
0320
GRIP,LIFT LEVER BS-1722291SM
...
0330
BUTTON, Red Nylon, for 1/4 Rod BS-1723124SM
...
0340
BOLT, PUSHNUT 1/4 BS-703826
...
0350
SPRING-COMP 0.715ODX BS-1723321SM
...
0360
SETSCREW, Square Head, 5/16-18 x 1/2, G8 BS-1928721SM
...
0370
SCREW BS-703872
...
0380
CAPSCREW,3/8-16X1.5 BS-703406
...
0390
V-BELT BS-771999
...
0400
ROD, Latch, 9" BS-1731414SM
...
0420
ROD, 1"Diameter, 12.50 LG, Frame Latch BS-1732420SM
...
0430
PIN, Hair BS-703796
...
0440
REFLECTOR, Rear Red 1-3/8 x 3 BS-1701600SM
...
0450
PIN, COTTER, 1/8X1 BS-703795
...
0460
SPACER, .385 ID x .6697 OD x .455 Long BS-1666294SM

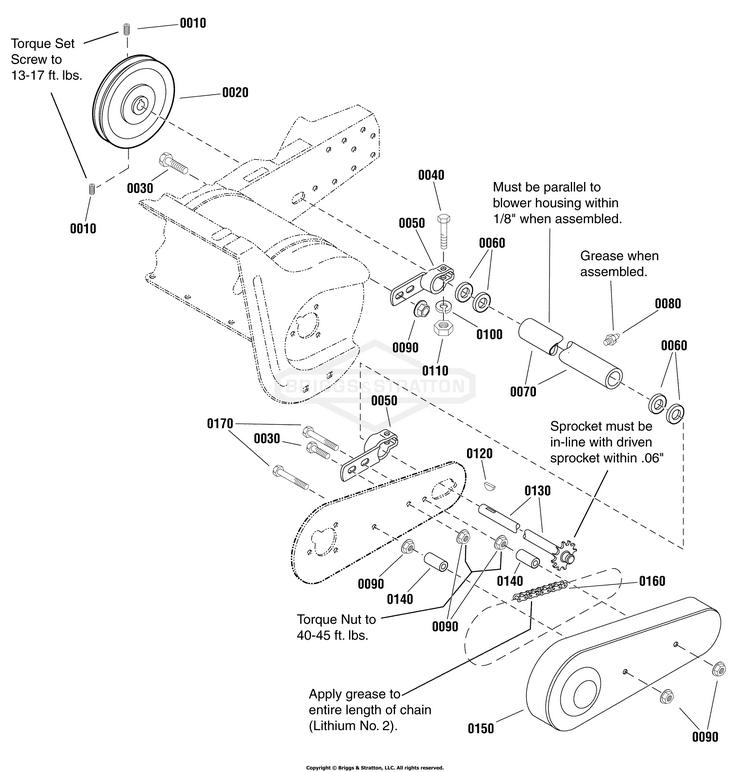

Drive Group

...
...
0020
PULLEY, 7 O.D. 3/4 x 7/8 with Hub BS-2171248SM
...
0030
SCREW BS-704038
...
0040
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
0050
CLAMP, Housing, 1-1/4 DIA Shaft BS-1666145ASM
...
0060
WASHER, Special, 1 1/4 BS-1729259SM
...
0070
HOUSING ASSEMBLY, with Bearings BS-1650955SM
...
0080
ZERK, FITTING, 1/4 BS-703907
...
0090
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
0100
WASHER, 5/16" LOCK BS-5025170SM
...
0110
HN, 5/16C GR5 YZ BS-7091511SM
...
0120
KEY, WOODRUFF, #9 BS-7010211YP
...
0130
SHAFT & SPROCKET ASSEMBLY, Snow BS-2106757SM
...
0140
SPACER BS-1669105SM
...
0150
CHAIN, Guard BS-1676738ASM
...
0160
Chain w/Conn. Link BS-2171242SM
...
0170
BOLT, 3/8-16 X 3" GD5 BS-5025013X24SM

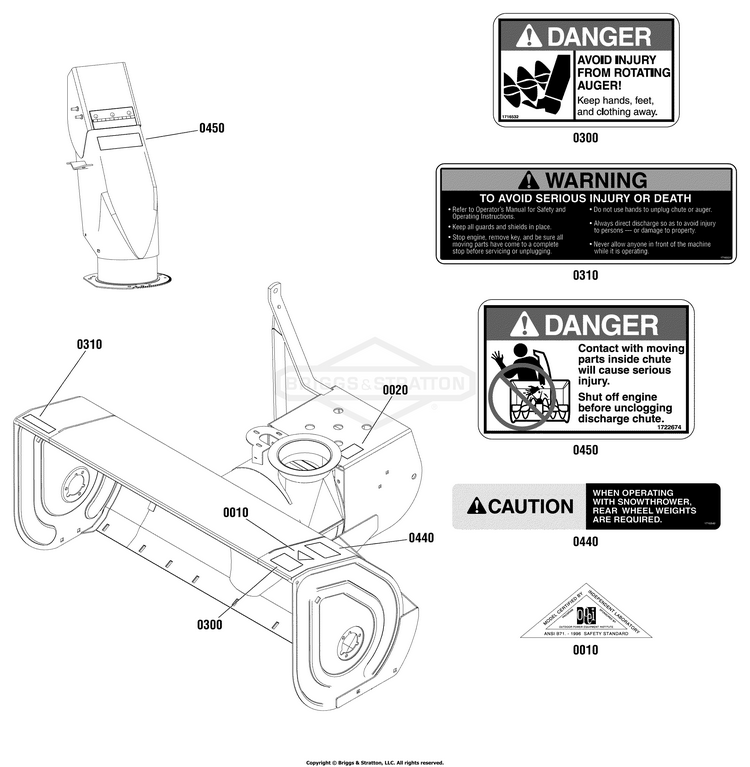

Miscellaneous Group

...
...
0300
DECAL, Danger Avoid Injury from Auger BS-1716532SM
...
0310
DECAL, Caution BS-1716531SM
...
0440
DECAL, Caution, Rear Wheel Weights BS-1716540SM
...
0450
DECAL, Warning-Chute BS-1722674SM

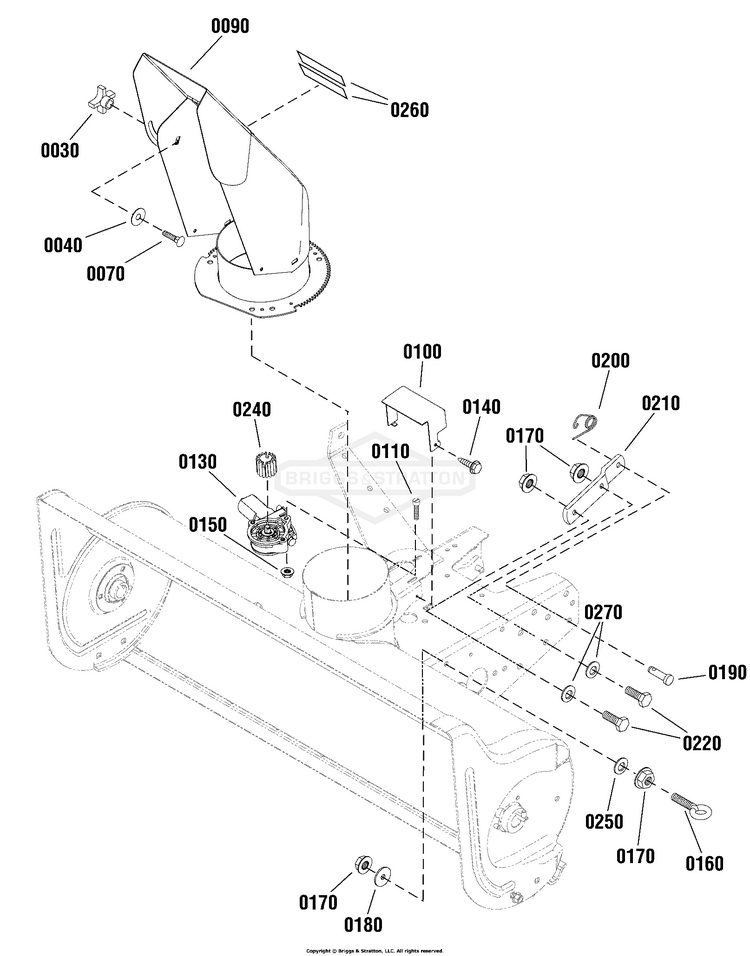

Spout Group

...
...
0030
KNOB-INT THR .312-18 BS-1670578SM
...
0040
WASHER, Nylon BS-2860210SM
...
0070
BOLT, Round Head, Short Square Neck BS-703185
...
0090
CHUTE & DEFL ASMY BS-1736482AYP
...
0100
GEAR COVER BS-1733934ASM
...
0110
SCREW, 10 - 24 BS-2860604SM
...
0130
ELECTRIC MOTOR BS-1728965SM
...
0140
SCREW, 1/4-20X.375 BS-703583
...
0150
NUT, HEX FLNG, 10-24 BS-703917
...
0160
EYE BOLT, 3/8 - 16 BS-1733143SM
...
0170
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
0180
WASHER, .406X1.5X.12 BS-703591
...
0190
PIN-RND HD DRILLED .3 BS-2156306SM
...
0200
PIN, 5/16 X 0.375 BS-703852
...
0210
CLIP FRAME BS-2177565ASM
...
0220
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
...
0240
PINION GEAR BS-1728967SM
...
0250
WASHER BS-704128
...
0260
DECAL, Hinge BS-1733600SM
...
0270
WASHER, FLAT BS-703878
