product name

1695967 Murray - 42" Mower Deck (2011)

Model: 1695967

Save
 Part Not Listed?Part Not Listed?
product name

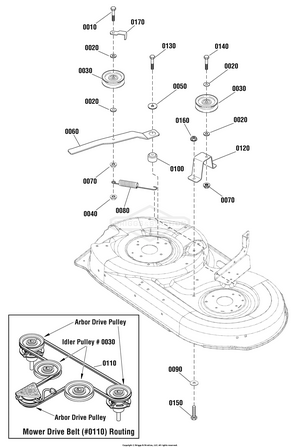

42" Mower Deck - Clutch Group

...
...
0010
SCREW BS-703872
...
0020
WASHER BS-704128
...
0030
IDLER, Flat, 4 1/8 BS-7018574SM
...
0040
NUT, Hex Flange, Two Way Lock, 3/8-16 BS-1930645
...
0050
WASHER, .406X1.5X.12 BS-703591
...
0060
ARM, Idler BS-1731944ASM
...
0070
NUT, 3/8-16 BS-703333
...
0080
SPRING, Extension, 1-1/32 OD x 7-3/4 BS-1731311SM
...
0090
WASHER, 5/16 x 1-1/4 OD BS-1933468SM
...
0100
SPACER, Powdered Metal BS-1729007SM
...
0110
V-BELT, A Wedge Deep-Groove, .44" BS-1732955SM
...
0120
SUPPORT, Idler BS-1731911ASM
...
0130
SCREW, Hex Washer Head, Taptite 3/8-16 x 2 BS-2860361SM
...
0140
CAPSCREW, Hex Head, 3/8-16 x 1-3/4, G5 BS-1921971
...
0150
CAPSCREW, 5/16-18 BS-703408
...
0160
NUT, 5/16-18, GR5 BS-703409
...
0170
GUARD, Spring BS-1732884ASM

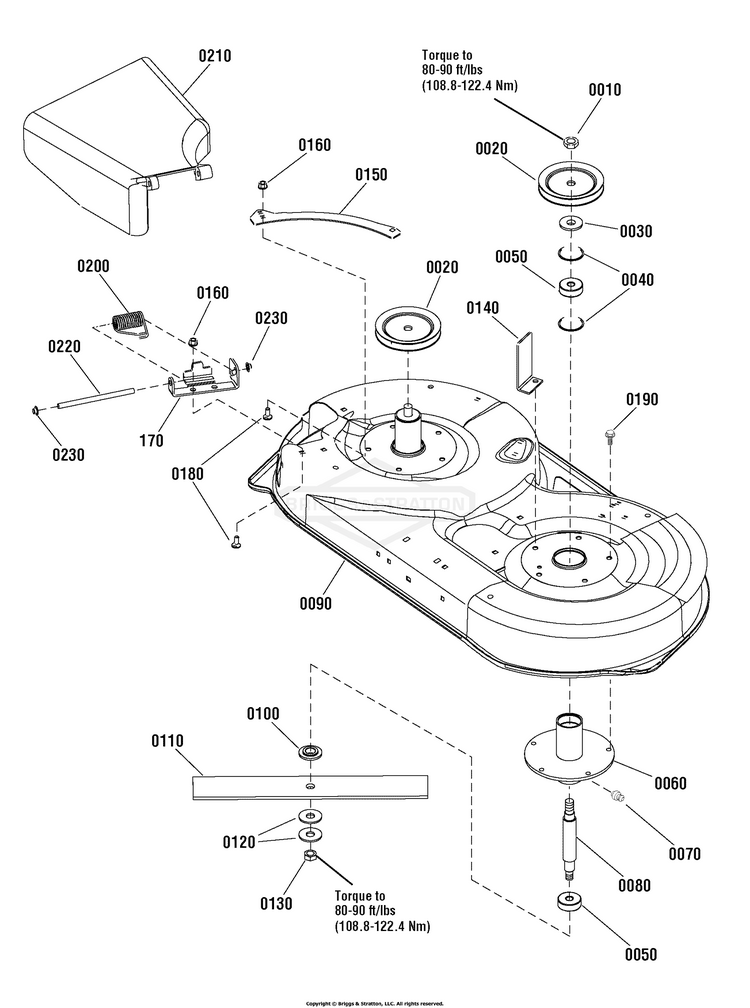

42" Mower Deck - Housing, Arbors & Blades Group

...
...
0010
NUT, HEX, 5/8-18 BS-703904
...
0020
PULLEY- 5.50DIA SPIND BS-1732354SM
...
0030
SPACER, Pulley BS-7072440SM
...
0040
RING, Retaining BS-7012491SM
...
0050
BEARING, BALL BS-2108202SM
...
0060
TUBE & PLATE ASSEMBLY, Spindle BS-1731372BMYP
...
0070
ZERK, FITTING, 1/4 BS-703907
...
0080
SHAFT, Spindle BS-7072537SM
...
0090
KIT, MOWER DECK, 42 BS-1687791YP
...
0100
WASHER, Spindle Blade BS-1731917SM
...
0110
BLADE 42 IN BS-1731898BZYP
...
0120
WASHER, Belleville, 1-3/4" Dia. BS-7024467SM
...
0130
NUT, Hex, 9/16F BS-7091633SM
...
0140
UPSTOP BS-1731209ASM
...
0150
PLATE, Rear BS-092426E701MA
...
0160
NUT, 5/16-18, GR5 BS-703409
...
0170
BRACKET - HINGE BS-094956E701MA
...
0180
BOLT, Round Head, Short Square Neck BS-703185
...
0190
SCREW, 3/8-16X.75 BS-703950
...
0200
SPRING, Torsion BS-0166X4MA
...
0210
DEFLECTOR & SUPPORT ASSEMBLY, Chute BS-094707MA
...
0220
ROD, Deflector BS-094957ZMA
...
0230
PUSHNUT, 3/8 BS-703948
...
0240
WASHER, Internal Tooth, 5/8 BS-7090880YP

42" Mower Deck - Support Group

...
...
0010
HITCH, Front BS-1731966BMYP
...
0020
ROD, Bail BS-1730097SM
...
0030
HANGER, Front BS-1730221ASM
...
0040
SPACER, 1/2 x 7/8 x 1 3/16 BS-1679166SM
...
0050
NUT, Hex Lock, 1/2-13 BS-1960379SM
...
0060
PIN, 5/16 X 0.375 BS-703852
...
0070
ROD, Latch BS-1731414SM
...
0080
NUT, 3/8-16 Hex Flange Esna, Black BS-703158
...
0090
SUPPORT, Gauge Wheel, RH BS-1731402ASM
...
0100
SUPPORT-GAUGE WHEEL L BS-1731403ASM
...
0110
BOLT-WHEEL 3/8-16X2.7 BS-2108765SM
...
0120
WASHER, 0.516IDX1OD BS-703853
...
0130
GAUGE WHEEL BS-1714760SM
...
0140
NUT, 5/16-18, GR5 BS-703409
...
0150
BOLT, Round Head, Short Square Neck BS-703185
...
0160
SUPPORT, Mower, LH BS-1753662BMYP
...
0170
SUPPORT, MOWER RH 38/ BS-1753663BMYP
...
...
...
