product name

1695965 Murray - Sleeve Hitch

Model: 1695965

Save
 Part Not Listed?Part Not Listed?
product name

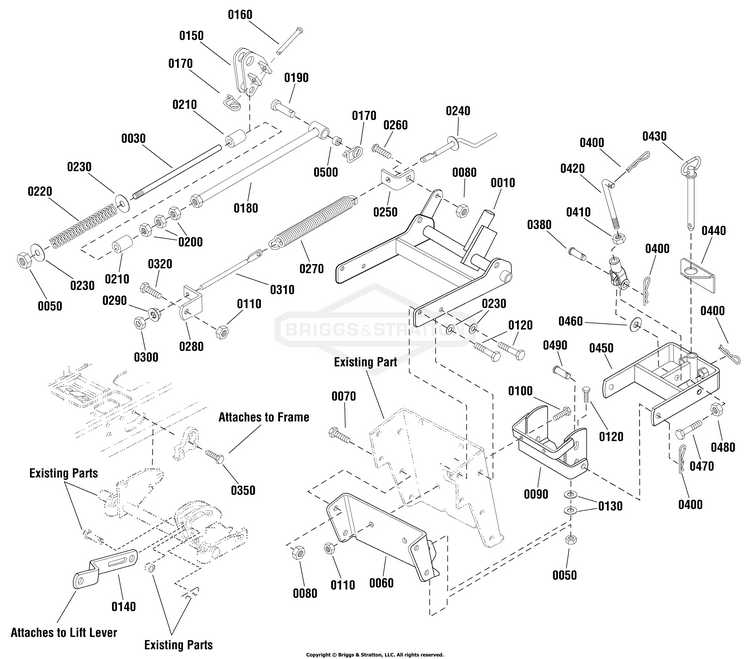

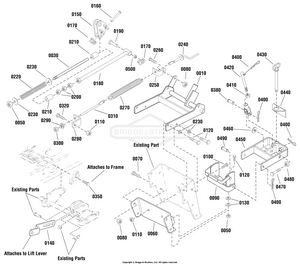

Sleeve Hitch Assembly (1695965)

...
...
0010
HITCH ASSEMBLY BS-1723107ASM
...
0030
ROD, 1/2 -3/4 x .44 BS-1723836SM
...
0050
NUT, LOCK, 1/2-13 BS-703567
...
0060
HITCH SUPPORT BS-1722608ASM
...
0070
SCREW BS-703407
...
0080
NUT BS-703117
...
0090
LOWER HITCH ASSY. BS-1707470ASM
...
0100
CAPSCREW, Hex Head, 1/2-13 x 1-1/4 BS-1921977
...
0110
NUT, HEX, 5/16-18 BS-703902
...
0120
CAPSCREW, 1/2-13X1.5 BS-703571
...
0130
WASHER, 0.516IDX1OD BS-703853
...
0140
BAR, Lift, 9-7/8 Long BS-1723795ASM
...
0150
LEVER ASSEMBLY, Rear Hitch BS-1723790ASM
...
0160
PIN, Hitch BS-2105249SM
...
0170
PIN, 5/16 X 0.375 BS-703852
...
0180
LIFT ROD ASSEMBLY BS-1724358ASM
...
0190
PIN, Yoke BS-1960277SM
...
0200
NUT,1/2-13,GR5,HEX,ZC BS-703340
...
0210
SPACER BS-1668662SM
...
0220
SPRING BS-2171011SM
...
0230
WASHER, 1/2 BS-1918431
...
0240
CRANK ASSEMBLY BS-1723840ASM
...
0250
BRACKET, Crank BS-1723841ASM
...
0260
BOLT, RD SQ 3/8-16X1 BS-703815
...
0270
SPRING, Extension BS-1723412SM
...
0280
BRACKET BS-1723842ASM
...
0290
NUT, Large Flange, 1/2-13 BS-1960515SM
...
0300
NUT, Hex, Jam Centerlock, 1/2-13 BS-1924650SM
...
0310
ROD, Threaded BS-1723844SM
...
0320
CAPSCREW, 5/16-18X1 BS-703585
...
0350
CAPSCREW, Hex Head, 5/16-18 x 1, G8, Black BS-1926149SM
...
0380
CLEVIS PIN, 1/2 X 1.3 BS-5025479YP
...
0400
CLIP, Hair Pin BS-1960033SM
...
0410
NUT BS-703903
...
0420
ROD, Lift BS-1604349SM
...
0430
PIN, Hitch BS-1716179SM
...
0440
PLATE, Stabilizer BS-1603816SM
...
0450
CLEVIS ASSY. BS-1675373SM
...
0460
WASHER, FLAT BS-703451
...
0470
CAPSCREW, Hex Hd., 5/8-11 x 2-1/4 BS-1927430SM
...
0480
NUT, GRA, HEX, 5/8-11 BS-703912
...
0490
PIN, Round Head Drilled, 7/16 x 1-3/4 BS-1753526
...
0500
SPACER BS-2175647SM
...
...
...
