1695960 Murray - 54" Mower Deck (2011)

Model: 1695960

Save
 Part Not Listed?Part Not Listed?
product name

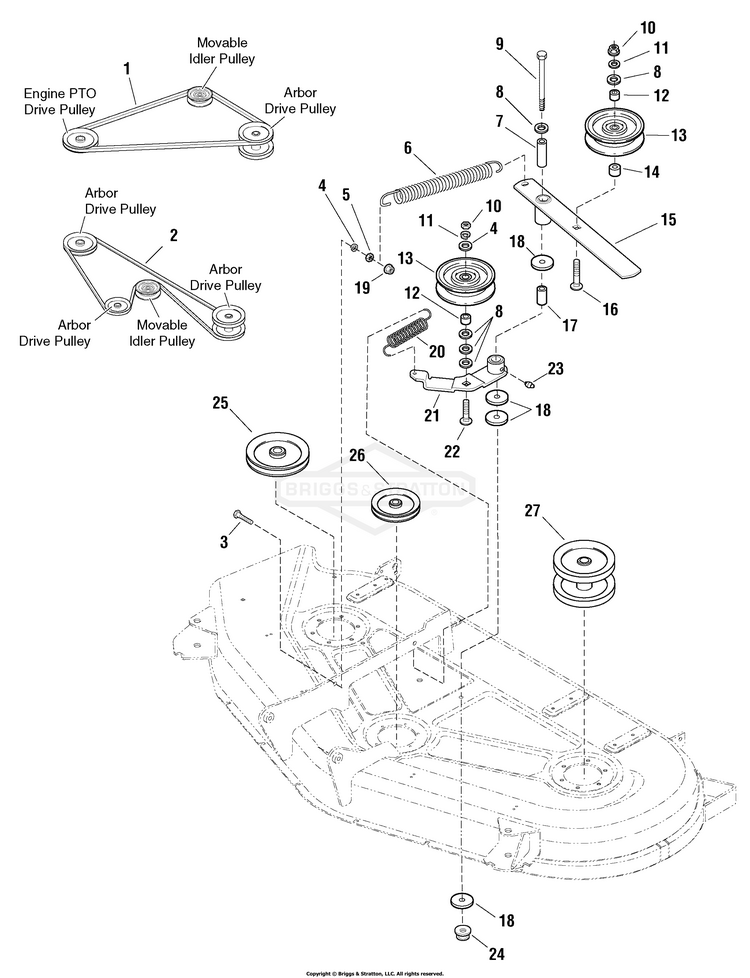

54" Mower Deck - Arbor Drive Group

...
...
1
V-BELT, Engine PTO BS-1722039SM
...
2
V-BELT, 54 Mower Deck BS-1671076SM
...
3
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
4
LCKWSHR BS-703116
...
5
HN, 5/16C GR5 YZ BS-7091511SM
...
6
SPRING, EXTENSION, 1. BS-1715435SM
...
7
SPACER, 25/64 x 5/8 x 1-55/64 BS-1657242SM
...
8
WASHER, FLAT BS-703878
...
9
CAPSCREW, Hex Head, 3/8-16 x 4-1/2 BS-1960246SM
...
10
NUT, HEX, 3/8-16 BS-703577
...
11
LOCKWASHER, SPLIT 3/8 BS-703454
...
12
HUB, 25/64 x 3/4 x 63/64, Powder Metal BS-1716553SM
...
13
PULLEY, Idler (Includes Ref. No. 12) BS-1685150SM
...
14
SPACER BS-2157081SM
...
15
ASSEMBLY, Lever BS-1720379SM
...
16
CARRIAGE BOLT, 3/8-16 x 2 BS-1960315SM
...
17
SPACER-0.39 IDX0.625O BS-1674669SM
...
18
WASHER, .406X1.5X.12 BS-703591
...
19
NUT BS-703164
...
20
SPRING, Extension, 4" Long BS-1656936SM
...
21
LEVER ASSEMBLY (Includes Ref. No. 23) BS-1718561SM
...
22
BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2 BS-1931352SM
...
23
FITTING, Lube BS-2812808SM
...
24
NUT, Hex Flange, 3/8-16 BS-1960339SM
...
25
PULLEY ASSEMBLY, R.H. BS-1720182ASM
...
26
PULLEY & HUB ASM-PLAI BS-1679161SM
...
27
PULLEY ASSEMBLY, L.H. BS-1720183ASM

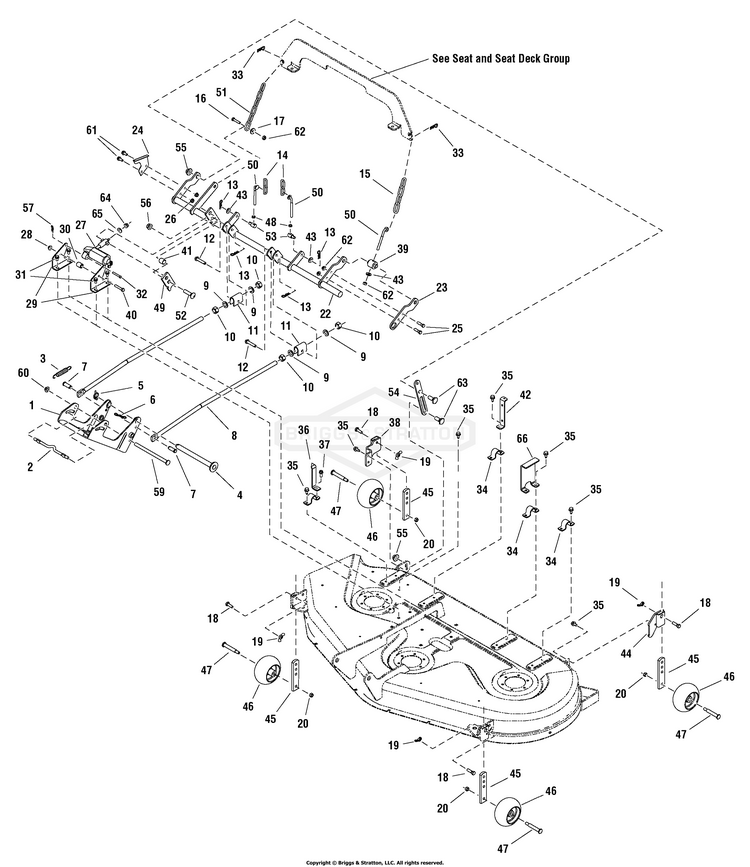

54" Mower Deck - Electric Height Adjust Group

...
...
1
HITCH & ROD ASSEMBLY, 54" BS-1733229ASM
...
2
ROD, 3/8 x 8 BS-1715759SM
...
3
SPRING, Extension BS-2156302SM
...
4
ASSEMBLY, Hitch Pin BS-1734011SM
...
5
PIN, Klik, 3/16 x 1-5/8 BS-1709189SM
...
6
PIN, Cotter Locking BS-1722320SM
...
7
CLEVIS PIN, 1/2 X 1.3 BS-5025479YP
...
8
ROD, 5/8 x 29-5/8 Long BS-1722995SM
...
9
WASHER, 5/8 BS-703580
...
10
NUT, GRA, HEX, 5/8-11 BS-703912
...
11
TRUNNION BS-84003858
...
12
PIN, 0.375 X 2.00 BS-704241
...
13
PIN, 3/32 X 1.6 BS-703300
...
14
CHAIN, 2-Link BS-1731383ASM
...
15
CHAIN-LINK 06.08 - BL BS-1708088ASM
...
16
CAPSCREW, 5/16-18X1.5 BS-703906
...
17
WASHER, 5/16 BS-703298
...
18
SCREW BS-703871
...
19
NUT-WING .375-16 NYLO BS-7091049SM
...
20
NUT, CNTR LCK, 3/8-16 BS-703893
...
22
ROCKER SHAFT, Frame Hung, 54" BS-1750759AYP
...
23
ARM BS-1720637ASM
...
24
BRKT, HEIGHT OF CUT E BS-1704116BMYP
...
25
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
26
NUT, 5/16-18, GR5 BS-703409
...
27
MOTOR, Linear Actuator Deck Lift BS-1754504YP
...
28
NUT, Hex Flange Whiz Lock Large, 5/16-18 BS-1927557SM
...
29
BRACKET, Mounting BS-1733831ASM
...
30
SPACER-0.390IDX0.750O BS-1733068SM
...
31
SCREW, 5/16-18.625 BS-703949
...
32
PIN, SHEAR BS-703063
...
33
CLIP, Hair Pin BS-1960033SM
...
34
STRAP, 1 IN. DIA BS-1720147BZYP
...
35
SCREW, 5/16-18 X .75 BS-703228
...
36
INDICATOR, Height of Cut BS-1720643ASM
...
37
SCREW BS-703167
...
38
GAGE, Wheel Assembly, R.H. BS-1727612ASM
...
39
TRUNNION BS-1724009SM
...
40
SCREW BS-704288
...
41
SPACER, .66 ID BS-1602946SM
...
42
UPSTOP, Rear BS-1737219AYP
...
43
WASHER, FLAT BS-703878
...
44
GAUGE WHEEL ASSEMBLY BS-1727613ASM
...
45
POST, Anti-Scalp BS-7035835SM
...
46
WHEEL, Gauge BS-1700184SM
...
47
BOLT, Shoulder, 3/8-16 BS-7029265SM
...
48
NUT-HEX JAM 5/16-18 BS-1920161SM
...
49
ARM, Rocker BS-1733520ASM
...
50
ROD, ADJUSTER BS-703827
...
51
CHAIN-LINK 8.4 LG 06 BS-1708266ASM
...
52
BOLT, Carriage, Short Neck, 1/2-13 x 2 BS-1960706SM
...
53
TRUNNION, 5/8 OD x 1-11/32 Long BS-1731382SM
...
54
STOP, Height Adjusting BS-1727143ASM
...
55
NUT-HEX FLANGE 1/2-1 BS-1930644SM
...
56
NUT, Hex, Toplock Flange,1/2-13 BS-1960689SM
...
57
PIN, COTTER,1/16X1.31 BS-704039
...
59
ROD, Mower Hitch BS-1713578SM
...
60
PUSHNUT, CAP TYPE BS-703179
...
61
SCREW, 5/16-18 BS-703354
...
62
NUT BS-703115
...
63
BOLT, SHOULDER, .255 BS-1737409YP
...
64
NUT, Hex, 1/4-20, L.H. Thread BS-1960757SM
...
65
WASHER BS-703332
...
66
UPSTOP BS-1737075ASM

54" Mower Deck - Housing & Arbor Group

...
...
1
MOWER HSG KIT, 54 BS-1687676YP
...
2
HHCS, 7/16-14X1.25 BS-703579
...
3
WASHER, SPRING 0.475I BS-1656916SM
...
4
WASHER, Splined BS-1679711SM
...
5
BLADE, Mower 20.56 BS-1736043AYP
...
6
BLADE, Mower 16.00 BS-1736044AYP
...
7
RETAINING RING, Self Locking BS-1657528SM
...
8
ADAPTER, Blade BS-1655777SM
...
9
WASHER, Shim BS-1700230SM
...
10
SHIELD, Bearing BS-1700229SM
...
11
HOUSING & FITTING ASSEMBLY, Lower (Incl. Ref. 26) BS-1703273ASM
...
12
GASKET, Foam BS-1707335SM
...
13
CAPSCREW,5/16-18X.625 BS-703822
...
14
ARBOR SHAFT & BEARINGS ASSEMBLY BS-1676278SM
...
15
HOUSING-ARBOR TOP - B BS-1655729ASM
...
16
SHIELD, Bearing, Mower Arbor, Upper BS-1657969SM
...
17
WASHER, .45X1.25X.25 BS-703990
...
18
LCKWSHR,7/16,SPLIT RE BS-704007
...
19
BOLT, Round Head, Short Square Neck BS-703185
...
20
BAFFLE, Front BS-1720962ASM
...
21
NUT, Hex KEPS, Conical Washer, 5/16-18 BS-703222
...
22
SCREW, 1/4-20X.375 BS-703583
...
23
COVER ASSEMBLY, Upper BS-1720621BTYP
...
24
COVER, Arbor R.H. 54" BS-1733373ZYP
...
25
NUT, 1/4-20, NYLOCK BS-703232
...
26
ZERK, FITTING, 1/4 (Included with Ref. No. 11) BS-703907
...
27
WASHER, 1/4 BS-703229
...
28
ROD-.283DIA 11.65LG D BS-1706709SM
...
29
BOLT, PUSHNUT 1/4 BS-703826
...
30
CARRIAGE BOLT, 1/4-20 x 1 G5 BS-1960698SM
...
31
CLIP, Spring BS-1720623SM
...
33
DEFLECTOR BS-1705449SM
...
34
SPRING BS-1759750YP
...
35
CAP, Spring End BS-1723323SM
...
36
WASHER, 5/16 BS-1919326SM
...
37
CLAMP, WIRE, .312DIA BS-1704873SM
...
38
BAFFLE, Discharge BS-1724976ASM
...
39
SCREW, 5/16-18 X .75 BS-703228
...
44
ARBOR SHAFT & BEARINGS ASSEMBLY, 40" BS-1676278SM
...
45
NUT, Hex Flange 9/16-18 BS-1714419SM
...
46
WASHER, Bellville .56ID x 1.34 OD x .05T BS-1713675SM
...
47
WASHER,.562IDX1.375OD BS-704011
...
48
CAPSCREW, Hex Head 7/16-14 x 2-1/4 G8 BS-2827120SM
...
49
PLUG, Hole BS-1705115SM
...
50
WASHER, 1/4 BS-703229
...
...
...
