1695857 Murray - MH61900, 9TP 24" Dual Stage Snowthrower, CE (2010)

Model: 1695857

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

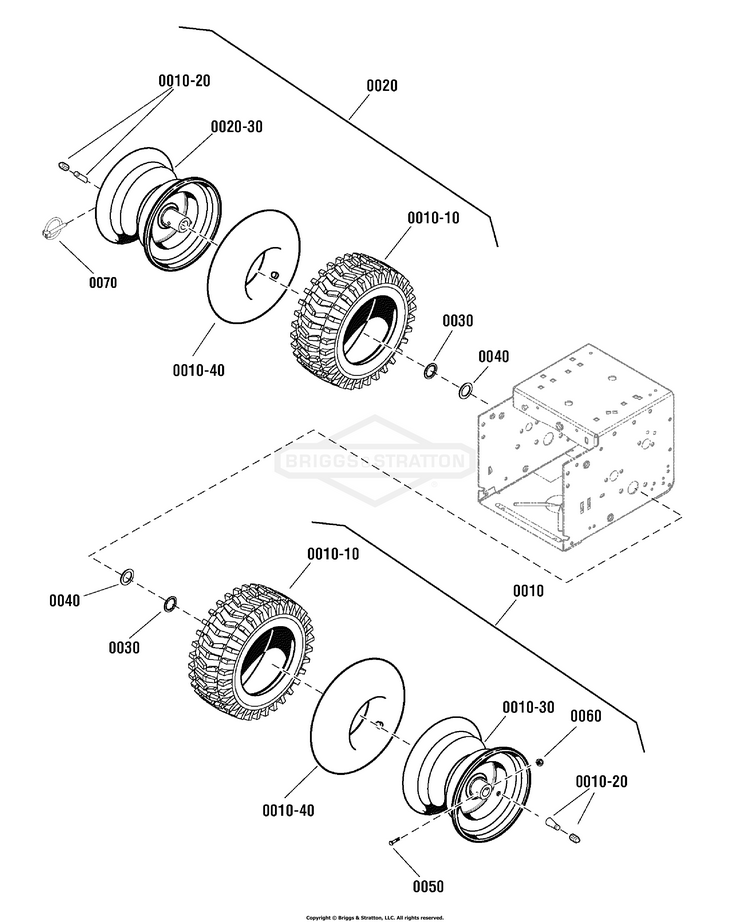

Wheels and Tires Group

...
...
0010
TIRE & RIM, L.H. (Includes Ref. Nos. 0010-10, 0010-20 & 0010-30) BS-1750448YP
...
0010-10
TIRE, 13 X 5.00-6 2PLY K478 BS-1737121YP
...
0010-20
VALVE STM&CP,TR41 SE BS-024373MA
...
0010-40
TUBE, Tire 4.10/3.50-6 BS-1664090SM
...
0020
TIRE & RIM, R.H. (Includes Ref. Nos. 0020-10, 0010-20 & 0010-30) BS-1750449YP
...
0010-10
TIRE, 13 x 5.00-6 2PLY K478 BS-1737121YP
...
0010-20
VALVE STM&CP,TR41 SE BS-024373MA
...
0010-40
TUBE, Tire 4.10/3.50-6 BS-1664090SM
...
0030
RING, Retaining BS-1657528SM
...
0040
WASHER, Flat, 3/4 BS-712120MA
...
0050
SCREW, SHR 1/4-20X1.7 BS-577015MA
...
0060
NUT, 1/4-20, NYLOCK BS-703232
...
0070
KLIK PIN ASSY BS-500016MA
