1695857 Murray - MH61900, 9TP 24" Dual Stage Snowthrower, CE (2010)

Model: 1695857

Back To Assemblies

Save Part Not Listed?
product name

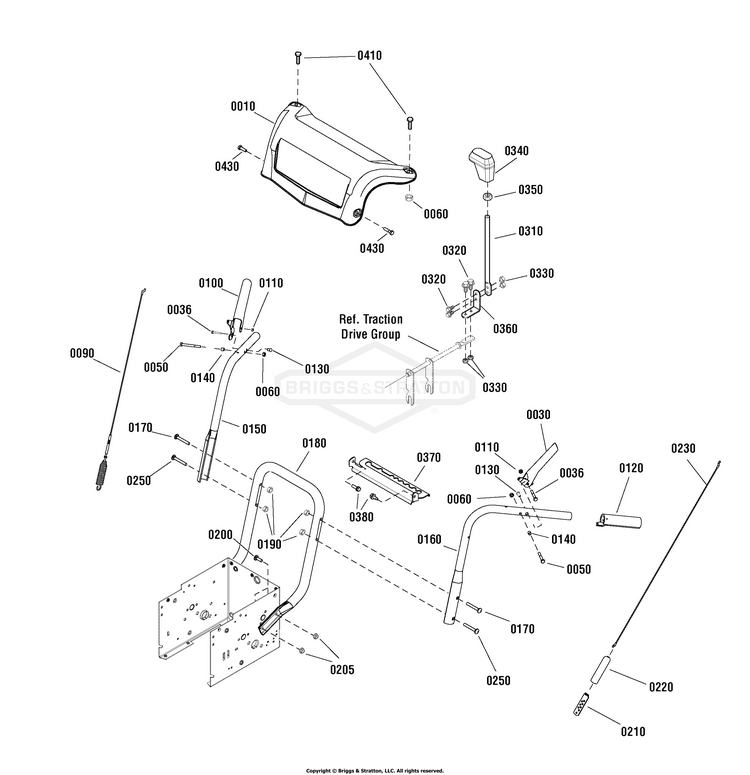

Handles & Controls Group

...
...
0010
PANEL, Dash BS-1738089BIYP
...
0030
LEVER, CLUTCH, L.H. BS-1739782AYP
...
0036
BOLT, Shoulder, Hex Washer Head, 1/4 x 1-1/2 BS-1753529YP
...
0050
TIE, SELF LOCKING BS-703586
...
0060
NUT, 1/4-20, NYLOCK BS-703232
...
0090
CABLE & SPRING ASSSEMBLY, Auger Drive, R.H. BS-1732471SM
...
0100
LEVER, CLUTCH, R.H. BS-1739783AYP
...
0110
NUT, NYLOCK, 10-24 BS-703412
...
0120
GRIP BS-1726317SM
...
0130
SPACER, Stepped BS-703223
...
0140
SPACER BS-703137
...
0150
HANDLE, Upper, R.H. BS-1734587ASM
...
0160
HANDLE, Upper, L.H. BS-1734586ASM
...
0170
SCREW, 5/16 X 2.25 BS-704421
...
0180
HANDLE, Lower BS-1737274AYP
...
0190
NUT BS-703115
...
0200
BOLT, Round Head, Short Square Neck BS-703185
...
0205
NUT, Hex KEPS, Conical Washer, 5/16-18 BS-703222
...
0210
BRACKET, CABLE ADJ BL BS-313441MA
...
0220
BOOT, Spring BS-308146MA
...
0230
CABLE, Front Drive BS-1502113MA
...
0250
BOLT,RD SH SQ BS-703175
...
0310
ROD,SHIFT P1-2-3 .50- BS-581631E701MA
...
0320
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
0330
NUT, 1/4-20 BS-703251
...
0340
SHIFT KNOB 1/2-13 BLA BS-304438MA
...
0350
NUT, 1/2-13 HEXJAM BS-318486MA
...
0360
LEVER,SPRING SHIFT BS-760564MA
...
0370
BRACKET, Gear Select BS-1737760BIYP
...
0380
SCREW, 1/4-20X0.625 BS-703054
...
0410
BOLT, CARRIAGE BS-703178
...
0430
SCREW, Pan Head Torx, 1/4-20 x 3/4 BS-1960556SM
