1695857 Murray - MH61900, 9TP 24" Dual Stage Snowthrower, CE (2010)

Model: 1695857

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

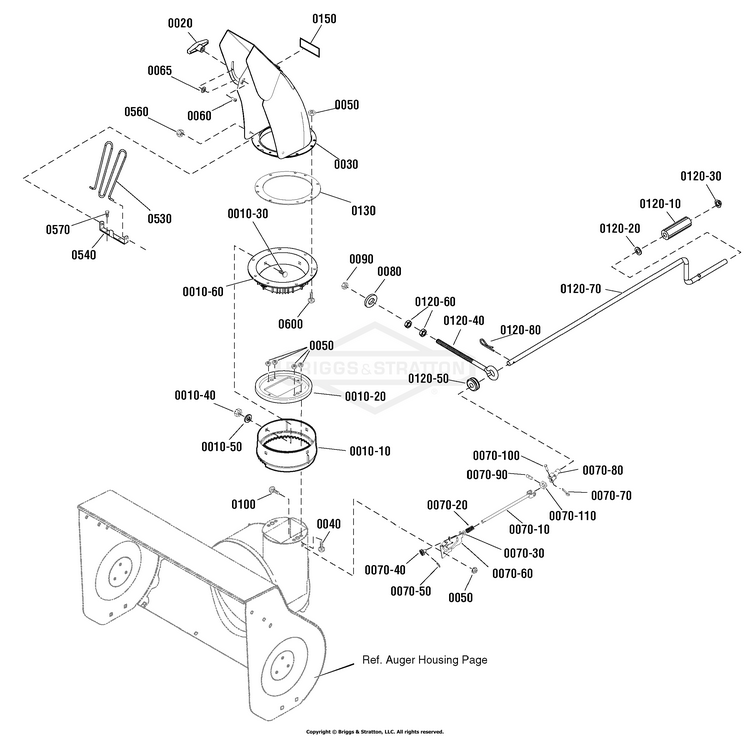

Discharge Chute Group

...
...
0010-10
RING,OUTER CHUTE BS-1501282MA
...
0010-20
COLLAR, Chute Rotate BS-1501932YZMA
...
0010-30
BOLT, 5/16-18X1 BS-704217
...
0010-40
NUT, HEX, 5/16-18 BS-703902
...
0010-50
WASHER BS-703350
...
0010-60
RING, Inner Chute BS-1741917YP
...
0020
KNOB, Wing, 5/16-18 BS-1501260MA
...
0030
CHUTE ASSEMBLY BS-1736313YP
...
0040
BOLT, 1/4-20 X 3/4 BS-703440
...
0050
NUT BS-5025391FS
...
0060
BOLT, 5/16-18X1.50 BS-704210
...
0065
WASHER, Nylon BS-2860210SM
...
0070-10
ROD 4.72YOKE ASY,CRAN BS-1501533YZMA
...
0070-20
SPRING, COMPRESSION BS-164X37MA
...
0070-30
WASHER, Flat, 3/8 BS-017X48MA
...
0070-40
GEAR,9 TOOTH 8DP BS-1501067MA
...
0070-50
PIN-HAIR, CHUTE GEAR BS-1501293MA
...
0070-60
BRACKET, Chute Gear BS-1740591AYP
...
0070-70
PIN, COTTER .06X .50 BS-579493MA
...
0070-80
YOKE ADAPTER ASY BS-1501075YZMA
...
0070-90
PIN,UNIV JOINT 3/8X1. BS-578060MA
...
0070-100
LF PIN, CLEVIS .25DX BS-578309MA
...
0070-110
BLOCK,UNIVERSAL PIVOT BS-578063MA
...
0080
WASHER, FLAT .406X.81 BS-71072MA
...
0090
NUT BS-703117
...
0100
BOLT, 1/4-20 X 3/4 BS-703440
...
0120-10
KNOB, SLEEVE STD BLK BS-51443MA
...
0120-20
WASHER, FLAT .39 X .7 BS-309312MA
...
0120-30
NUT, Push, 3/8 BS-73664MA
...
0120-40
EYEBOLT.38-16X6.50 .6 BS-1501456MA
...
0120-50
GROMMET, Eyelet BS-148MA
...
0120-60
NUT 3/8-16 HEX JAM BS-71045MA
...
0120-70
CRANK, Chute Turn BS-1501074YZMA
...
0120-80
PIN, 3/32 X 1.6 BS-703300
...
0130
RING, Chute BS-1736435AYP
...
0150
DECAL, Hinge BS-1733601SM
...
0530
GUARD, Chute BS-1733475SM
...
0540
BRACKET, Chute Guard BS-1737683AYP
...
0560
NUT, Push, For 1/8 Stud BS-1960140SM
...
0570
SCREW, HEX, 1/4-20X.5 BS-704130
...
0600
CAPSCREW-HEX WSHR HD BS-1935450SM
