1695857 Murray - MH61900, 9TP 24" Dual Stage Snowthrower, CE (2010)

Model: 1695857

Save Part Not Listed?

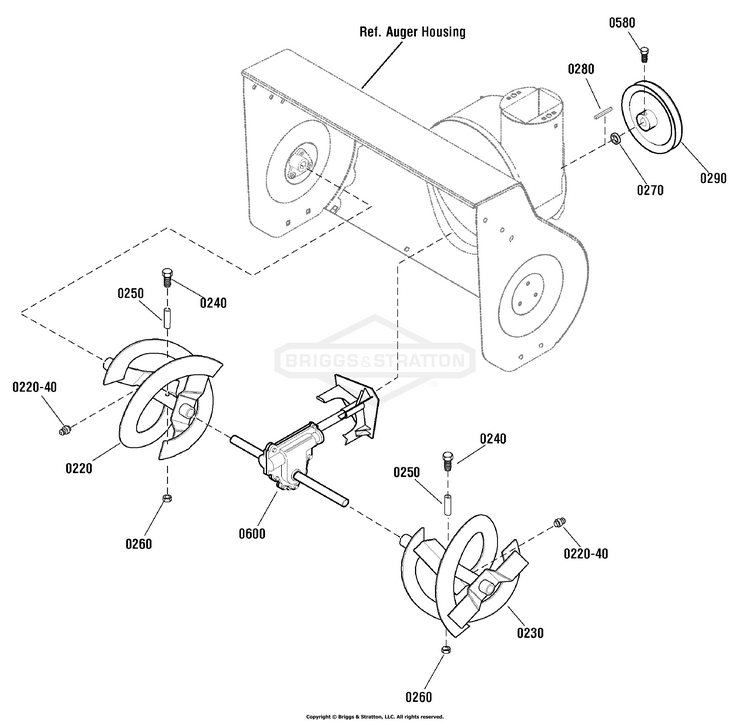

Auger Drive Group

0220

ASSEMBLY, Auger, 24, RH (Includes Ref. No. 0220-40) BS-1739262BJYP

0230

ASSEMBLY, Auger, 24, LH (Includes Ref. No. 0220-40) BS-1739261BJYP

0220-40

ZERK, FITTING, 1/4 BS-703907

0240

SCREW, 1/4-20X1.75 BS-703057

0250

SPACER, SLEEVE BS-703058

0260

NUT, 1/4-20 BS-703251

0270

SPACER,FRICTION PULLE BS-1501158MA

0280

KEY,SQUARE 3/16 X 3/4 BS-2001022MA

0290

PULLEY, 4L 8.4 x .67 BS-1501211MA

0580

SCREW, 5/16-18X.63 HH BS-577400MA

0600

GEAR CASE ASSEMBLY BS-1738602YP

KIT,SHEAR BOLT.25-20X (Includes Ref. Nos. 0240, 0250 & 0260) BS-1501216MA
