1695857 Murray - MH61900, 9TP 24" Dual Stage Snowthrower, CE (2010)

Model: 1695857

Back To Assemblies

Save Part Not Listed?
product name

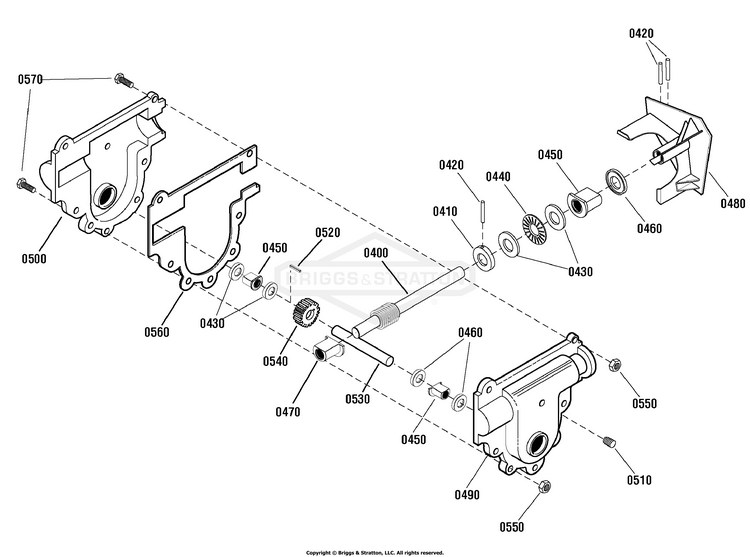

Gear Case Assembly (1738602)

...
...
0400
SHAFT, Input BS-1501191MA
...
0410
COLLAR,THRUST.753X1.2 BS-580295MA
...
0420
PIN, SPRING.250DIAX1. BS-454565MA
...
0430
WASHER, FLAT .752X1. BS-48275MA
...
0440
BEARING,, Roll, 3/4 ID x 1-1/4 OD BS-50684MA
...
0450
BRNG, FL .752IDX1.002 BS-50304MA
...
0460
SEAL, OIL, .75 X 1.19 BS-9566MA
...
0470
BRNG,FLNG.502IDX0.752 BS-50221MA
...
0480
ASSY, IMPELLER 12" BS-1740929AYP
...
0490
CASE, Gear, LH BS-10576MA
...
0500
CASE, Gear, RH BS-10577MA
...
0510
CAPSCREW, 3/8-16 X .5 BS-704213
...
0520
KEY, 3/16X.625 BS-703891
...
0530
SHAFT, Auger Output BS-1501189MA
...
0540
GEAR,WORM BS-51405MA
...
0550
NUT,25-20 HEX FLG CTR BS-15X143MA
...
0560
GASKET, Gear Box BS-51279MA
...
0570
SCREW,1/4-20X.75 BS-710025MA
