1695810 Murray - 46" Mower Deck

Model: 1695810

Save
 Part Not Listed?Part Not Listed?
product name

46" Mower Deck - Clutch Group

...
...
0010
V-BELT, 117" BS-1719911SM
...
0020
SPRING, Extension BS-1715772SM
...
0030
PULLEY, Idler BS-1736540YP
...
0040
CAPSCREW, Hex Head, 3/8-16 x 2-1/2, G5 BS-1933685SM
...
0050
WASHER BS-704128
...
0060
NUT, 3/8-16 BS-703333
...
0070
NUT, Hex Flange, MAC Lock Large, 3/8-16 BS-1960339SM
...
0080
ARM, Idler BS-1736551AYP
...
0090
SPACER, 3/8 OD x 1-1/2 OD x 1 BS-1729007SM
...
0100
CAPSCREW, 3/8-16X2 BS-703589
...
0110
WASHER, .406X1.5X.12 BS-703591
...
0120
NUT, 3/8-16 BS-703347
...
0130
HANDLE, Idler Arm BS-1755653BMYP

46" Mower Deck - Housing, Arbors & Blade

...
...
0080
KIT, DECK, 46 BS-1687625YP
...
0090
HOUSING ASSEMBLY BS-84003654
...
0091
BEARING, Ball, 20mm BS-1735399YP
...
0092
SHAFT-SPINDLE BS-1760276YP
...
0093
COVER, ARBOR BS-84003166
...
0094
SPACER, Bearing BS-1735328YP
...
0095
RING, SELF LOCKING BS-1960766YP
...
0100
SCREW, HEX, 5/16-18X1 BS-704146
...
0110
BLADE, MOWER BS-1739889AYP
...
0120
WASHER, SPRING 0.475I BS-1656916SM
...
0130
CAPSCREW, Hex Head, 7/16-14 X 1 BS-1920676SM
...
0200
PULLEY, Split, 4.6 OD BS-1735686YP
...
0210
SPACER, Lower Drive BS-1735579YP
...
0220
SPACER, Pulley BS-1736445YP
...
0240
WASHER, Belleville BS-1960769YP
...
0320
DEFLECTOR, Discharge, 46/52 BS-1687750YP
...
0330
PIVOT, HINGE BS-1736365BMYP
...
0340
BOLT, Round Head, Short Square Neck BS-703185
...
0350
NUT, 5/16-18, GR5 BS-703409
...
0360
SPRING, Torsion, Deflector BS-1736364YP
...
0361
PLATE, Deflector Closeoff BS-1737359BMYP
...
0370
ROD, Deflector BS-1736366YP
...
0380
PUSHNUT, CAP, 5/16 BS-704028
...
0390
HHCS BS-703171
...
0450
BRACKET, Belt Cover, Front BS-1736518AYP
...
0460
BRACKET, Belt Cover, Rear BS-1736519AYP
...
0480
COVER, Belt, R.H. BS-1735752YP
...
0490
COVER, Belt, L.H. BS-1735750YP
...
0500
SCREW, 5/16-18 X .75 BS-703228
...
0501
BAFFLE, Pinchoff BS-1737279AYP
...
0510
CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2 BS-1930600SM
...
0520
CONNECTOR, Washout Port BS-1756246YP
...
0530
KIT, WASHOUT PORT BS-1687721YP
...
0540
RETAINER, GR5, 5/16 BS-703297
...
0580
WASHER, 5/16 BS-703302

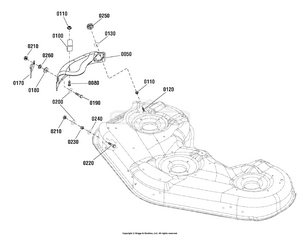

46" Mower Deck - Mulching Group

...
...
0050
COVER, Mulching BS-1751018YP
...
0080
BOLT-RD HD SH SQ NK 1 BS-1960252SM
...
0100
BRACKET, Stop BS-1737381AYP
...
0110
NUT, HEX KEPS, 1/4-20 BS-703061
...
0120
BOLT, Carriage, 1/4-20 x 1, G5 BS-1960698SM
...
0130
WASHER, FLAT BS-7091627YP
...
0170
LATCH, Boot BS-1737765AYP
...
0180
SPACER, 5/16 ID x 1 OD x 1/4 BS-1708511SM
...
0190
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
0200
WASHER-0.312(0.33IDX1 BS-1960044SM
...
0210
NUT BS-703115
...
0220
BOLT, 5/16-18X1.25 G5 BS-703446
...
0230
SPACER, Pivot BS-1723244SM
...
0240
WASHER-0.375(0.44IDX1 BS-1919384SM
...
0250
KNOB, ESNA, 1/4-20 BS-1738295YP
...
0260
WASHER, Wave BS-7026257MA

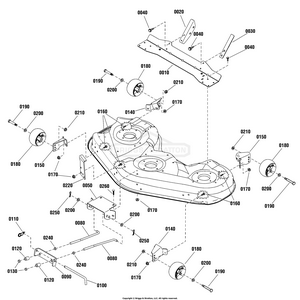

46" Mower Deck - Support Group

...
...
0010
SUPPORT, Rear Cross BS-1736070AYP
...
0020
BRACKET, Rear Mower Pickup, R.H. BS-1736072AYP
...
0030
BRACKET, Rear Mower Pickup, L.H. BS-1736073AYP
...
0040
SCREW, 5/16-18 X .75 BS-703228
...
0050
HITCH, FRONT BS-1736071BMYP
...
0080
ROD, Front Bail BS-1736081YP
...
0090
HANGER, Front Mower BS-1737059AYP
...
0100
ROD, Latch BS-1731414SM
...
0110
PIN, 5/16 X 0.375 BS-703852
...
0120
SPACER, 1/2 x 7/8 x 1 3/16 BS-1679166SM
...
0130
NUT, Hex Lock, 1/2-13 BS-1960379SM
...
0140
BRACKET, GAUGE WHEEL BS-1736074BMYP
...
0150
BRKT, GAUGE WHEEL, LH BS-1736075BMYP
...
0160
BOLT, 5/16-18X.875 BS-704065
...
0170
NUT, 5/16-18, GR5 BS-703409
...
0180
WHEEL, GAUGE BS-1736896YP
...
0190
BOLT, SHOULDER BS-1736539YP
...
0200
WASHER, 0.516IDX1OD BS-703853
...
0210
NUT, 3/8-16 Hex Flange Esna, Black BS-703158
...
0220
UP STOP BS-1736991AYP
...
0240
NUT, Hex Jam, 1/2-13 BS-1913744SM
...
0250
PIN, 3/32 X 1.6 BS-703300
...
0260
BOLT, Round Head, Short Square Neck BS-703185
...
...
...
