1695757 Murray - Turbo, 54" Mower Deck

Model: 1695757

Save
 Part Not Listed?Part Not Listed?
product name

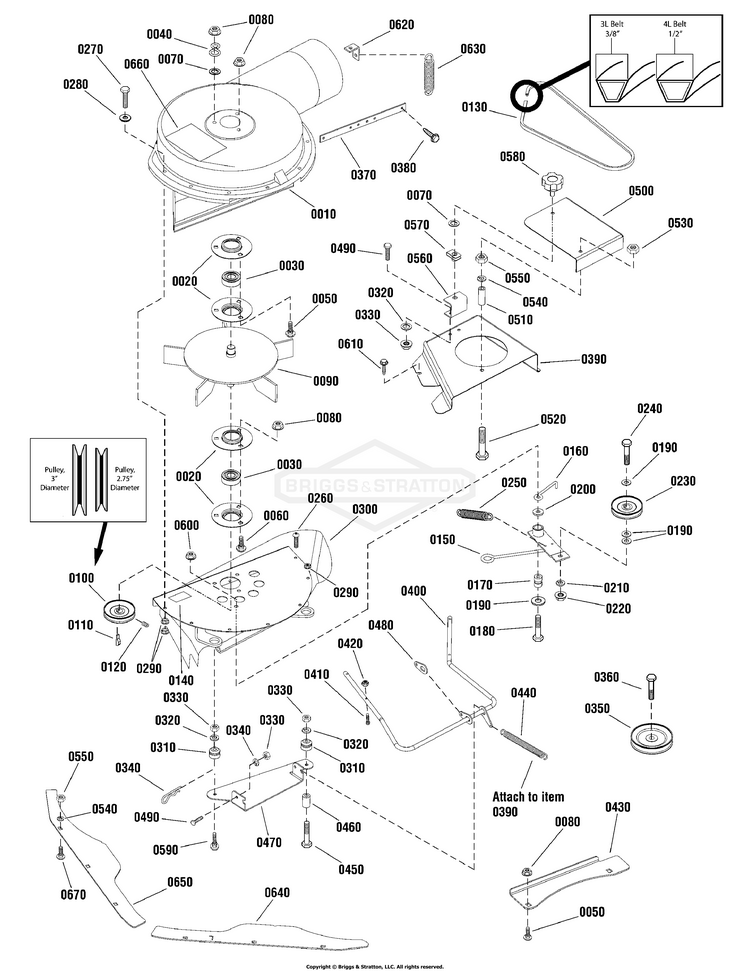

Turbo Blower & Mounting Group

...
...
0010
HOUSING, With Decal BS-1720892SM
...
0020
BEARING RETAINER - PL BS-1665982SM
...
0030
BEARING, BALL BS-2108202SM
...
0040
"S" HOOK BS-1672689SM
...
0050
BOLT, Round Head, Short Square Neck (Qty of 2 included in Ref. No. 0690) BS-703185
...
0060
CAPSCREW, 5/16-18X.75 BS-704287
...
0070
RETAINER, GR5, 5/16 BS-703297
...
0080
NUT, Hex Flange Whiz-Lock, 5/16-18 (Qty of 2 included in Ref. No. 0690) BS-703330
...
0090
FAN ASSY. (5 Blade) BS-1706631ASM
...
0100
PULLEY, Driven (For 3L V-Belt - Replaced by Service Kit Ref. No. 0700) BS-1706634SM
...
0100
PULLEY, 2-3/4" Diam., For 4L Belt (For 4L V-Belt - Included in Service Kit Ref. No. 0700) BS-1736092SM
...
0110
KEY, Woodruff BS-2860403SM
...
0120
SETSCREW, Nylok, 5/16-18 x 5/16 BS-1960619SM
...
0130
V-BELT 3L 36.2 AR (Replaced by Service Kit Ref. No. 0700) BS-1734007SM
...
0130
V-BELT, 4L 36.5 Auger (Included in Service Kit Ref. No. 0700) BS-1733051SM
...
0150
LEVER ASSEMBLY BS-1720934ASM
...
0160
BELT STOP BS-1704419SM
...
0170
BUSHING BS-1666114
...
0180
CAPSCREW, 3/8-16X2 BS-703589
...
0190
WASHER, FLAT BS-703878
...
0200
WASHER BS-704128
...
0210
LOCKWASHER, SPLIT 3/8 BS-703454
...
0220
NUT, HEX, 3/8-16 BS-703577
...
0230
PULLEY, Idler BS-2174561SM
...
0240
CAPSCREW, Hex Head, 3/8-16 x 1-1/2, G5 BS-1921969
...
0250
SPRING BS-2174896SM
...
0260
SCREW, Truss Hd., 1/4-20 x 3/4 BS-1935945SM
...
0270
CAPSCREW, Hex, 1/4-20 x 1-1/4 BS-1921961SM
...
0280
WASHER BS-703332
...
0290
NUT, 1/4-20, NYLOCK BS-703232
...
0300
PLATE ASSEMBLY BS-1720721ASM
...
0310
PILOT PIN, Tapered Spacer (Included in Ref. No. 0690) BS-1720718SM
...
0320
LOCKWASHER, Split,1/4 (Qty of 4 included in Ref. No. 0690) BS-704133
...
0330
NUT (Qty of 4 included in Ref. No. 0690) BS-703127
...
0340
PIN, Quick BS-1704628SM
...
0350
PULLEY & HUB ASSEMBLY (Included in Ref. No. 0690) BS-1720737SM
...
0360
CAPSCREW, Hex Head, 7/16-14 x 2-1/4, G8 (Included in Ref. No. 0690) BS-1927120SM
...
0370
STRIP, Reinforcement, Blower Housing BS-1706630ASM
...
0380
SCREW, 1/4-20X0.625 BS-703054
...
0390
COVER, Arbor R.H. Turbo BS-1734303ASM
...
0400
ROD & ANCHOR ASSEMBLY, Deflector BS-1720951SM
...
0410
SCREW, Truss Head Phillips, 10-24 x 3/4 (Included in Ref. No.0690) BS-1960404SM
...
0420
NUT, NYLOCK, 10-24 (Included in Ref. No. 0690) BS-703412
...
0430
SUPPORT PLATE BS-1720749ASM
...
0440
SPRING, Idler (Included in Ref. No. 0690) BS-1719590SM
...
0450
CAPSCREW,1/4-20X2.25 (Included in Ref. No. 0690) BS-704291
...
0460
SPACER, 5/8 x 1 (Included in Ref. No. 0690) BS-1720978SM
...
0470
PLATE, DEFLECTOR BS-1736095ASM
...
0480
LOCKING TAB (Included in Ref. No. 0690) BS-1720921SM
...
0490
BOLT, Hex, 1/4-20 x 5/8 (Qty of 2 included in Ref. No. 0690) BS-001X38MA
...
0500
COVER BS-1720918ASM
...
0510
SPACER-0.323IDX0.555O BS-1713588SM
...
0520
SCREW BS-703868
...
0530
NUT, HEX, 5/16-18 BS-703902
...
0540
LCKWSHR (Qty of 6 included in Ref. No. 0690) BS-703116
...
0550
HN, 5/16C GR5 YZ (Qty of 6 included in Ref. No. 0690) BS-7091511SM
...
0560
BRACKET, Belt Cover BS-1700654ASM
...
0570
NUT, SPEED, 5/16-18 L BS-1935255SM
...
0580
PLASTIC KNOB BS-1700669SM
...
0590
BOLT, CARRIAGE (Included in Ref. No. 0690) BS-703178
...
0600
NUT, Hex Two-Way Lock Flange, 3/8-16 BS-1930645
...
0610
SCREW, 1/4-20X.375 (Included in Ref. No. 0690) BS-703583
...
0620
ANCHOR, Spring BS-1668500SM
...
0630
KIT, SNOW, PIVOT SPRING, PRO BS-1687980
...
0640
BAFFLE, MULCHING, LH BS-1720613BMYP
...
0650
BAFFLE, Mulching RH BS-1721023ASM
...
0660
DECAL, Warning BS-1700259SM
...
0670
BOLT, 5/16-18X.625 G5 (Included in Ref. No. 0690) BS-703447
...
--
HARDWARE BAG BS-1660617
...
--
KIT, Pulley & Belt, 54" Turbo BS-1687419YP
...
...
...
