1695731 Murray - Dynamark 24" Dual Stage Snowthrower (2009)

Model: 1695731

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

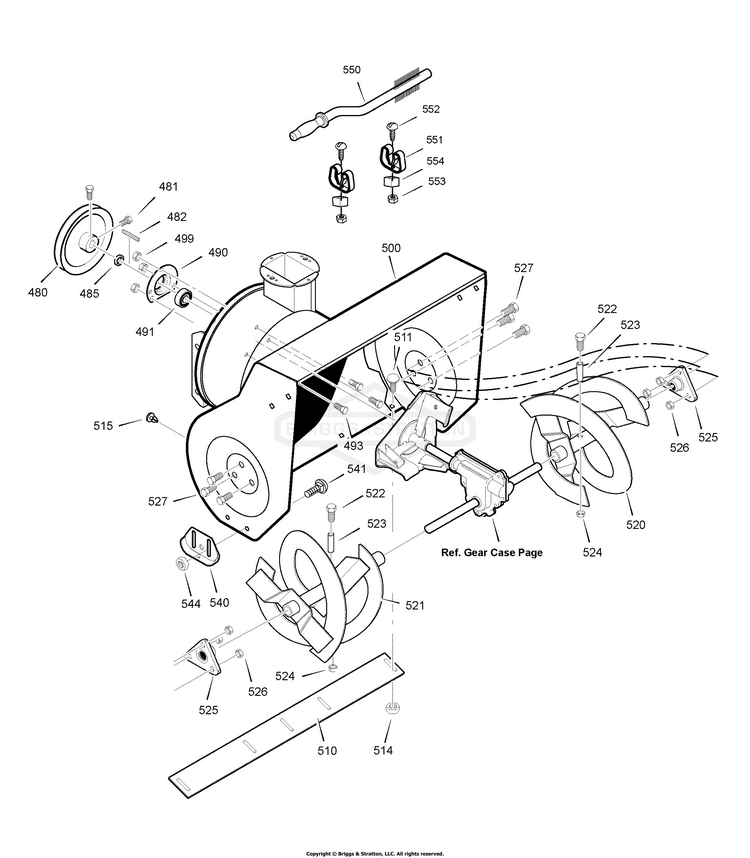

Auger Housing (1738680)

...
...
480
PULLEY, 4L 6.12X .67 BS-1501211MA
...
481
SCREW, 5/16-18X.63 HH BS-577400MA
...
482
KEY,SQUARE 3/16 X 3/4 BS-2001022MA
...
485
SPACER,FRICTION PULLE BS-1501158MA
...
490
RETAINER, BEARING BS-1756809YP
...
491
BEARING, BALL 11/16X1 BS-1705897SM
...
493
CAPSCREW,5/16-18X.625 BS-703822
...
499
NUT, 5/16-18, GR5 BS-703409
...
500
HOUSING BS-1501854E245MA
...
510
BLADE, Scraper BS-1738301AYP
...
511
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
514
NUT, 5/16-18, GR5 BS-703409
...
515
PLUG BS-309235MA
...
520
AUGER,24 A2 HY RH BS-1501440E701MA
...
521
AUGER,24 A2 HY LH BS-1501441E701MA
...
522
SCREW, 1/4-20X1.75 BS-703057
...
523
SPACER, SLEEVE BS-703058
...
524
NUT, 1/4-20 BS-703251
...
525
BEARING AUGER BLACK BS-9517MA
...
526
NUT, Hex Flange, Top Lock, 5/16-18 BS-703119
...
527
SCREW, 5/16-18 BS-703354
...
540
SKID, HGT ADJ S4 BS-1740912BMYP
...
541
BOLT, 5/16-18X.625 G5 BS-703447
...
544
NUT, 5/16-18, GR5 BS-703409
...
550
STICK-CLEANOUT W/BRUSH BS-1736094YP
...
551
CLIP,RETAINER YZ BS-1501672MA
...
552
SCREW, 10-24 x 1 1/4 BS-704086
...
553
NUT, NYLOCK, 10-24 BS-703412
...
554
BLOCK,UNIVERSAL PIVOT BS-578063MA
...
--
KIT,SHEAR BOLT.25-20X BS-1501216MA
