1695731 Murray - Dynamark 24" Dual Stage Snowthrower (2009)

Model: 1695731

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

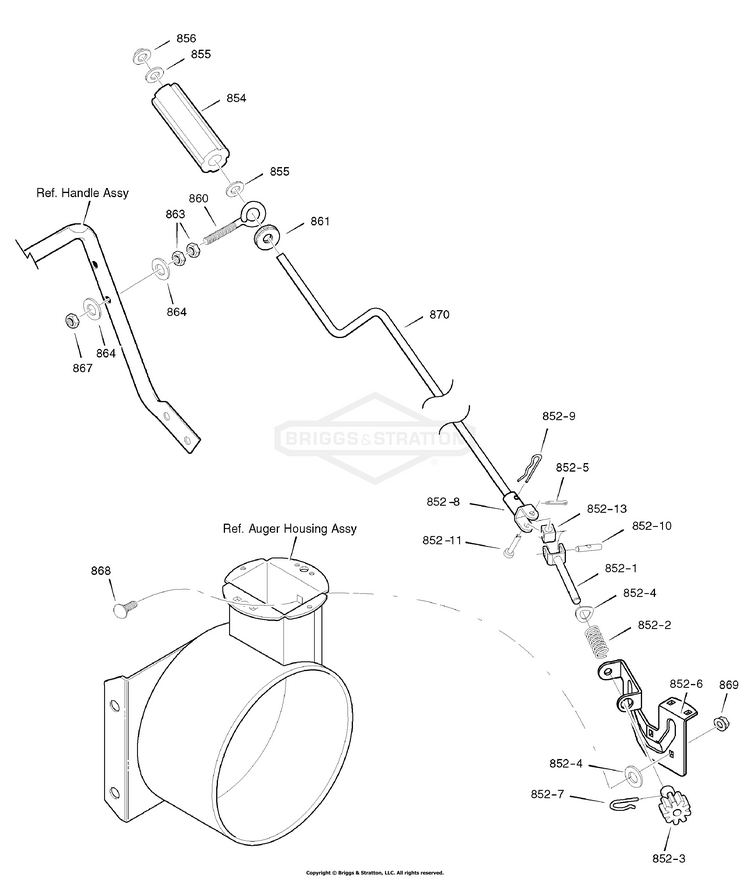

Chute Rod Group (1741718)

...
...
852-1
ROD 4.72YOKE ASY,CRAN BS-1501533YZMA
...
852-2
SPRING, COMPRESSION BS-164X37MA
...
852-3
GEAR,9 TOOTH 8DP BS-1501067MA
...
852-4
WASHER BS-017X48MA
...
852-5
PIN, COTTER .06X .50 BS-579493MA
...
852-6
BRACKET, Chute Gear BS-1740591AYP
...
852-7
PIN-HAIR, CHUTE GEAR BS-1501293MA
...
852-8
YOKE ADAPTER ASY BS-1501075YZMA
...
852-9
PIN, 3/32 X 1.6 BS-703300
...
852-10
PIN,UNIV JOINT 3/8X1. BS-578060MA
...
852-11
LF PIN, CLEVIS .25DX BS-578309MA
...
852-13
BLOCK,UNIVERSAL PIVOT BS-578063MA
...
854
KNOB, SLEEVE STD BLK BS-51443MA
...
855
WASHER, FLAT .39 X .7 BS-309312MA
...
856
NUT, Push, 3/8 BS-73664MA
...
860
EYEBOLT.38-16X6.50 .6 BS-1501456MA
...
861
GROMMET, Eyelet BS-148MA
...
863
NUT 3/8-16 HEX JAM BS-71045MA
...
864
WASHER, FLAT .406X.81 BS-71072MA
...
867
NUT BS-703117
...
868
BOLT, 1/4-20 X 3/4 BS-703440
...
869
NUT, 1/4-20, NYLOCK BS-703232
...
870
CRANK, Chute BS-1501074YZMA
