1695731 Murray - Dynamark 24" Dual Stage Snowthrower (2009)

Model: 1695731

Back To Assemblies

Save Part Not Listed?
product name

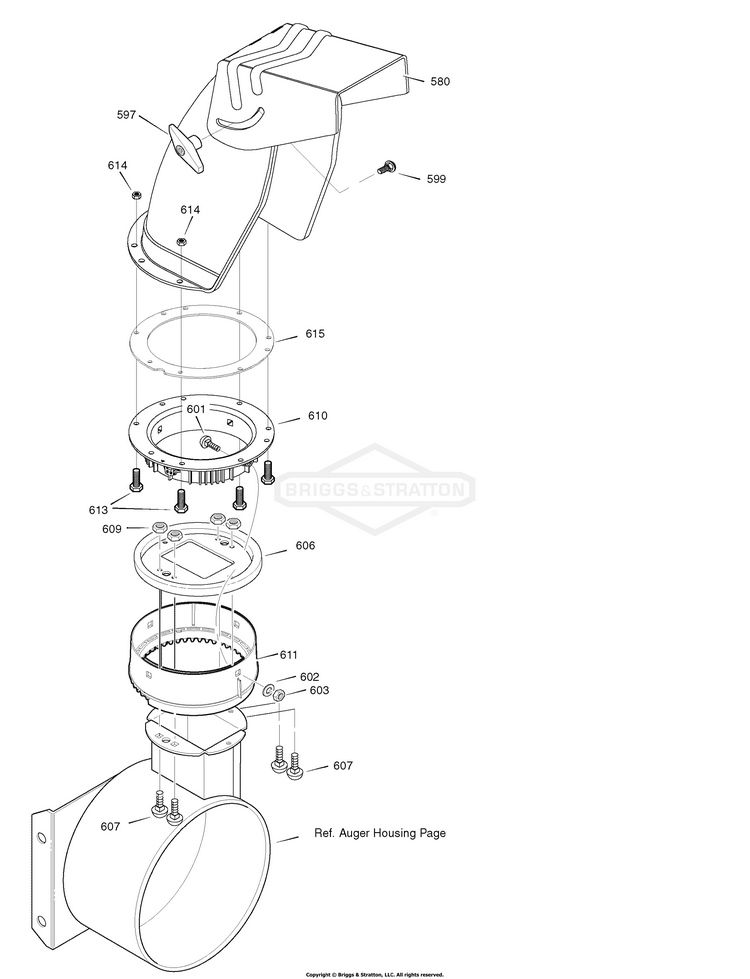

Discharge Chute (1742250)

...
...
580
CHUTE ASSEMBLY BS-1736313YP
...
597
WING KNOB BS-1501260MA
...
599
BOLT, Round Head, Short Square Neck BS-703185
...
601
BOLT, 5/16-18X1 BS-704217
...
602
WASHER BS-703350
...
603
NUT, HEX, 5/16-18 BS-703902
...
606
CHUTE COLLAR BS-1501932YZMA
...
607
BOLT, 1/4-20 X 3/4 BS-703440
...
609
NUT, 1/4-20, NYLOCK BS-703232
...
610
RING, Retainer, Inner BS-1741917YP
...
611
RING,OUTER CHUTE BS-1501282MA
...
613
CAPSCREW-HEX WSHR HD BS-1935450SM
...
614
NUT BS-5025391FS
...
615
RING, Chute Base BS-1736435AYP
