1695731 Murray - Dynamark 24" Dual Stage Snowthrower (2009)

Model: 1695731

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

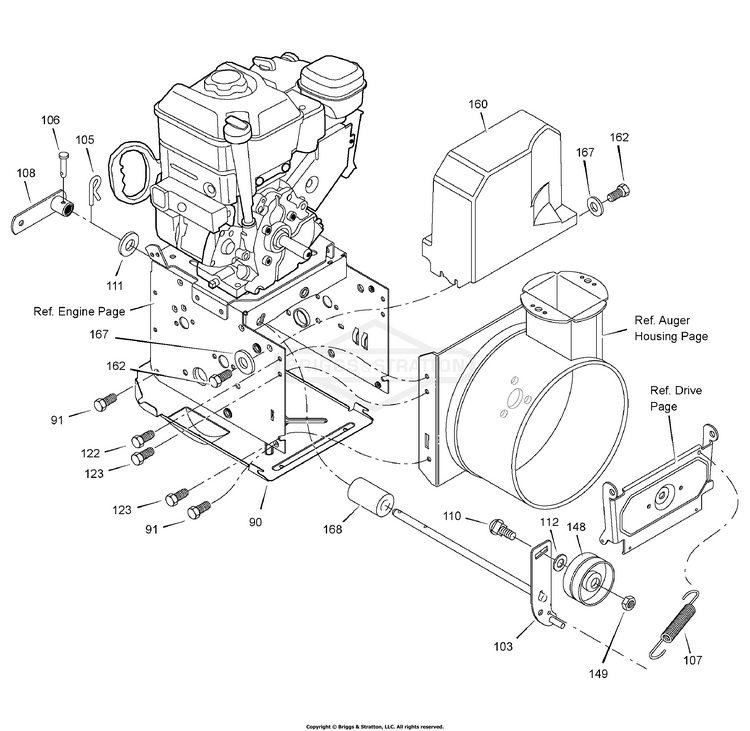

Frame (1738678)

...
...
90
COVER, Bottom BS-1753969BMYP
...
91
SCREW, 1/4-20X0.625 BS-703054
...
103
IDLER,AUG ML-STD HDL BS-1501226YZMA
...
105
PIN, 3/32 X 1.6 BS-703300
...
106
PIN, CLEVIS, ZINC BS-703313
...
107
SPRING, Tension BS-165X159MA
...
108
ARM, Control BS-1733451SM
...
110
CARRIAGE BOLT, 3/8-16 x 1-1/4, G5 BS-1960268SM
...
111
WASHER.540-0.81-.06 F BS-711617MA
...
112
WASHER BS-017X48MA
...
122
SCREW.31-18X0.50 WAHH BS-25X020MA
...
123
SCREW, 5/16-18 X .75 BS-703228
...
148
PULLEY, Idler BS-1502120MA
...
149
NUT, HEX, 3/8-16 BS-703996
...
160
COVER, BELT BS-1502169MA
...
162
SCREW, 1/4-20 X 3/4 BS-1751355YP
...
167
WASHER BS-703332
...
168
SPACER, Auger Bracket BS-1502041MA
