1695731 Murray - Dynamark 24" Dual Stage Snowthrower (2009)

Model: 1695731

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

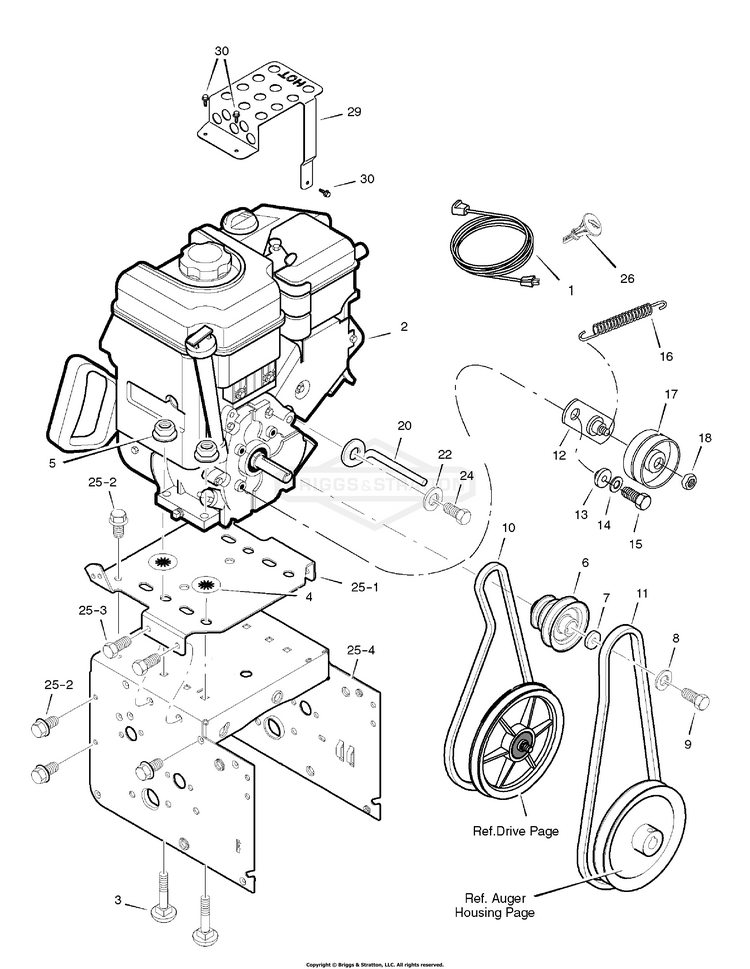

Engine (1742229)

...
...
1
CORD, Electric, 10FT. 110V BS-6219MA
...
2
ENGINE (Model# 12A113-0138-E8) BS-12A113-0138-E8
...
3
BOLT, 5/16-18X1.50 BS-704210
...
4
NUT,SPEED BS-028X76MA
...
5
NUT BS-703115
...
6
PULLEY, Engine BS-1736102YP
...
7
WASHER, 5/16 x 1-1/4 OD BS-1933468SM
...
8
WASHER, 5/16" LOCK BS-5025170SM
...
9
BOLT, HEX, 5/16-24X1 BS-703301
...
10
BELT, DRIVE BS-1733324SM
...
11
BELT BS-585416MA
...
12
KIT, IDLER ASEM BS-1687797YP
...
13
BUSHING,IDLER BRKT BS-1501065MA
...
14
WASHER, 5/16" LOCK BS-5025170SM
...
15
SCREW, 5/16-24X .75 BS-710097MA
...
16
SPRING, IDLER TRACTIO BS-53704MA
...
17
PULLEY, Idler BS-1502120MA
...
18
NUT, HEX, 3/8-16 BS-703996
...
20
BELT GUIDE BS-1739070YP
...
22
WASHER, 5/16" LOCK BS-5025170SM
...
24
SCREW, 5/16-24X .75 BS-710097MA
...
25-1
FRAME, STD DRIVE BS-1735753BIYP
...
25-2
SCREW, 1/4-20X0.625 BS-703054
...
25-3
SCREW.31-18X0.50 WAHH BS-25X020MA
...
25-4
FRAME, Motor Box BS-1740572BNYP
...
26
KEY SET BS-794696
...
29
HEAT SHIELD, Muffler BS-1734732SM
...
30
SCREW, Hex-Washer BS-1736103SM
