1695716 Murray - Dynamark, 21" Single Stage Snow Thrower (2009)

Model: 1695716

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

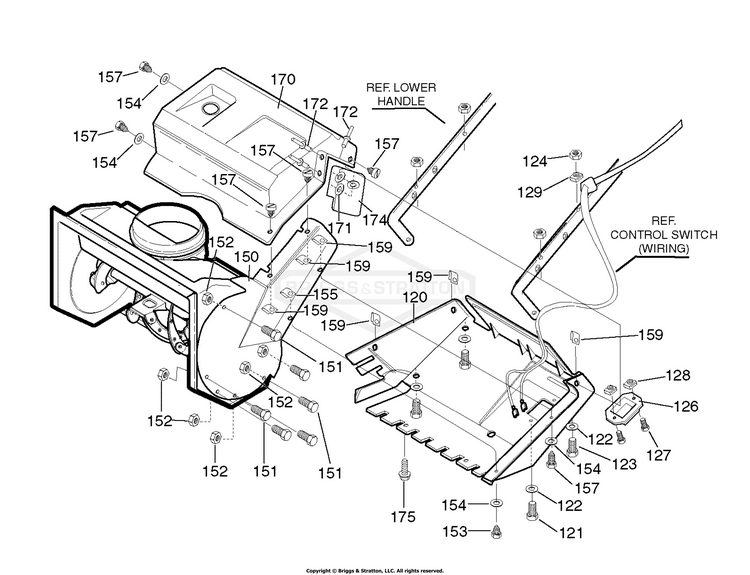

Belt Cover Assembly

...
...
120
BOTTOM COVER BS-584589MA
...
121
BOLT, 1/4-20 X 1-1/4" BS-5025010X10SM
...
122
WASHER BS-703332
...
123
SCREW, 1/4-20 x 1.50 BS-70971MA
...
124
NUT, 1/4-20 BS-703251
...
126
COVER, CARB BS-326212MA
...
127
SCREW, 1/4-14X .75 SL BS-313685MA
...
128
NUT, 1/4-10 BS-578109MA
...
129
CLIP,CABLE.38 C951PC BS-583435MA
...
150
COVER,BELT,20 2CY 653 BS-57036MA
...
151
SCREW, 10-24 x .50 BS-12342MA
...
152
NUT#10-24 MCLEANLOCK BS-015X81MA
...
153
SCREW.25-20X0.62 HHC BS-579052MA
...
154
WASHER BS-703332
...
155
NUT, 1/4-20 TINN BS-578107MA
...
157
SCREW, 1/4-14X .75 SL BS-313685MA
...
159
NUT, 1/4-10 BS-578109MA
...
170
TOP COVER BS-584590MA
...
171
WASHER, FLT BS-901736MA
...
172
RIVET BS-902973MA
...
174
SIDE COVER BS-58046MA
...
175
SCREW 10-14 x 0.63 BS-26X292MA
