1695716 Murray - Dynamark, 21" Single Stage Snow Thrower (2009)

Model: 1695716

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

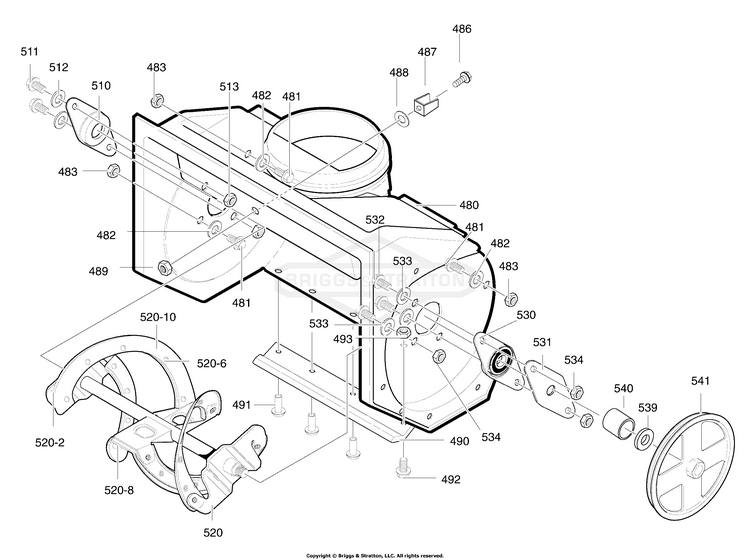

Auger Housing Assembly

...
...
480
HOUSING ASSEMBLY BS-330312MA
...
481
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
482
WASHER BS-703332
...
483
NUT, 1/4-20 BS-703251
...
486
SCREW.25-20X0.62 HHC BS-579052MA
...
487
BRACKET, STOP BS-331126MA
...
488
FLATWASHER BS-331211MA
...
489
NUT,25-20 HEX FLG CTR BS-15X143MA
...
490
SCRAPER BAR BS-55323MA
...
491
RIVET BS-577707MA
...
492
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
493
NUT,25-20 HEX FLG CTR BS-15X143MA
...
510
BRNG, FLNG BS-577023MA
...
511
SCREW, 1/4-20 x 1.00 BS-710263MA
...
512
WASHER BS-703332
...
513
NUT,25-20 HEX FLG CTR BS-15X143MA
...
520
AUGER,20 2CY BLACK BS-302783MA
...
520-2
AUGER BLADE BS-302565MA
...
520-6
RIVET, .250DIAX.5 BS-49838MA
...
520-8
BLADE,CENTER <57121 BS-335992MA
...
520-10
AUGER,20 2CY BLACK BS-302783MA
...
530
PLATE&BEARING ASY BS-583459MA
...
531
BEARING RETAINER BS-334287MA
...
532
SCREW.25-20X0.62 HHC BS-579052MA
...
533
WASHER BS-703332
...
534
NUT, 1/4-20 BS-703251
...
539
WASHER.640-1.25-.06 F BS-40677MA
...
540
SPACER, SLEEVE BS-578101MA
...
541
PULLEY, POLY V -AUGER BS-583363MA
