1695716 Murray - Dynamark, 21" Single Stage Snow Thrower (2009)

Model: 1695716

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

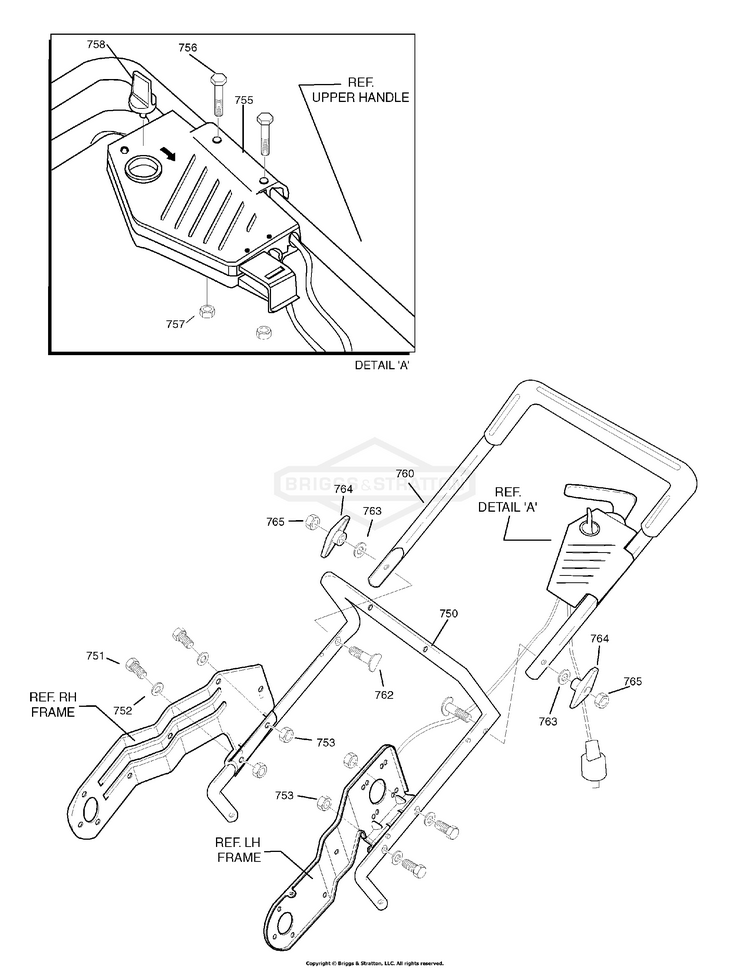

Handle Assembly

...
...
750
HNDL,LWR 20IN SNOW BS-313487E701MA
...
751
BOLT, 1/4-20 X 1-1/4" BS-5025010X10SM
...
752
WASHER BS-703332
...
753
NUT, 1/4-20 BS-703251
...
755
ASSEMBLY, SWITCH BOX BS-342757MA
...
756
SCREW, 10-24 BS-581060MA
...
757
NUT, #10-24 BS-71055MA
...
758
KEY, SWITCH BOX BS-583356MA
...
760
UPPER HANDLE ASSEMBLY BS-761117MA
...
762
BOLT, 5/16-18X2.OO CU BS-337584MA
...
763
WASHER, FORM .344 ID BS-311936MA
...
764
T KNOB BS-1501260MA
...
765
HN, 5/16C GR5 YZ BS-7091511SM
