1695716 Murray - Dynamark, 21" Single Stage Snow Thrower (2009)

Model: 1695716

Back To Assemblies

Save Part Not Listed?
product name

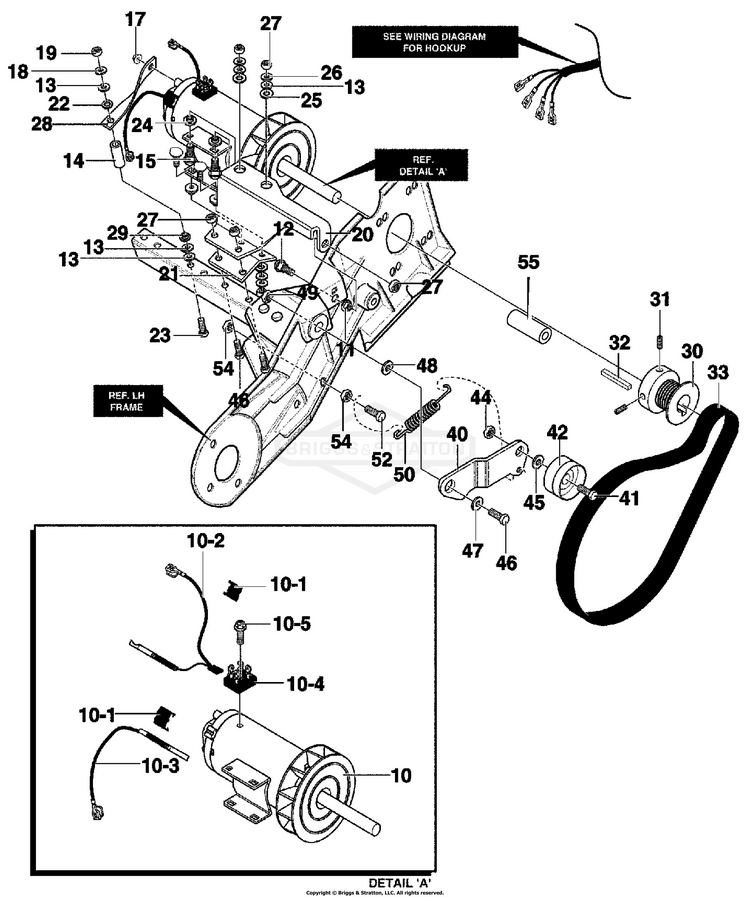

Motor Assembly

...
...
10
MOTOR, ELECTRIC BS-760912MA
...
10-1
BRUSH CAP BS-761142MA
...
10-2
BRUSH CUT-OUT ASSEMBLY BS-761143MA
...
10-3
BRUSH ASSEMBLY BS-761144MA
...
10-4
RECTIFIER BS-761146MA
...
10-5
SCREW, 10-24 BS-761145MA
...
11
NUT,RETAINER.31-18X0. BS-710288MA
...
12
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
13
WASHER, PLASTIC .315X BS-6711MA
...
14
TUBE, INSULATOR BS-761203MA
...
15
BOLT, 5/16-18 x 1.00 BS-3316MA
...
17
NUT#10-24 MCLEANLOCK BS-015X81MA
...
18
WASHER BS-703332
...
19
NUT, 1/4-20 BS-703251
...
20
BRACKET, UPPER MOTOR MOUNT BS-760932E701MA
...
21
BRACKET, LOWER MOTOR MOUNT BS-760931E701MA
...
22
FLATWASHER, NYLON BS-583372MA
...
23
SCREW, 1/4-20 x 1.00 BS-710263MA
...
24
INSULATOR, MOTOR BS-760934MA
...
25
INSULATOR WASHER BS-760933MA
...
26
WASHER BS-703350
...
27
NUT, HEX, 5/16-18 BS-703902
...
28
BRACE, MOTOR BS-760984E701MA
...
29
SHOULDER WASHER, NYLON BS-583371MA
...
30
PULLEY, MOTOR BS-760981MA
...
31
SCREW, 1/4-20 x .38 BS-102570MA
...
32
SQUARE KEY BS-71095MA
...
33
BELT BS-37X135MA
...
40
IDLER BRACKET BS-583395MA
...
41
SCREW, 3/8-16 x 1.50 BS-710082MA
...
42
IDLER PULLEY BS-583391MA
...
44
NUT, HEX, 3/8-16 BS-703996
...
45
WASHER, FLAT .406X.81 BS-71072MA
...
46
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
47
WASHER BS-703350
...
48
SPACER, SLEEVE BS-53794MA
...
49
NUT.31-18 HEX CTRLK BS-71391MA
...
50
IDLER SPRING -AUGER DRIVE BS-760988MA
...
52
SCREW, 1/4-20 x 1.25 BS-308231MA
...
54
NUT BS-703127
...
55
INSULATOR, TUBE BS-1501906MA
...
--
MANUAL, OWNER’S BS-1737803
...
--
ILLUSTRATED PARTS LIST BS-1739925
