1695556 Murray - C950-52844-0, Craftsman, 22" Single Stage Snow Thrower (2008)

Model: 1695556

Back To Assemblies

Save Part Not Listed?
product name

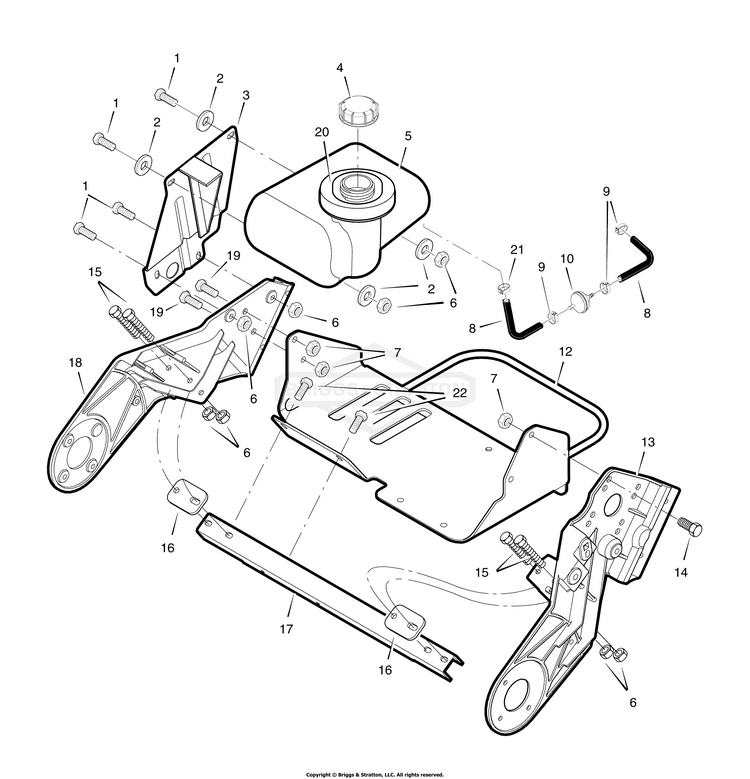

Frame

...
...
1
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
2
WASHER BS-703332
...
3
Bracket, Fuel Tank BS-1741771HYP
...
4
CAP, FUEL, VENTED BS-5101651SM
...
5
TANK, Fuel BS-1738435YP
...
6
NUT, 1/4-20 BS-703251
...
7
NUT.31-18 HEX CTRLK BS-71391MA
...
8
LINE, Fuel (Cut to length) BS-791893
...
9
Clamp, Fuel Line BS-323387MA
...
10
Filter, Fuel Line BS-298090S
...
12
Cradle Assembly, Engine BS-1501849E701MA
...
13
Frame, LH BS-1501872E701MA
...
14
Screw, 5/16-18 x 0.63 BS-48901MA
...
15
Screw, 1/4-20 x 2.00 BS-180044MA
...
16
Plate, Mounting Support BS-335351MA
...
17
Support, Frame BS-1501851MA
...
18
Frame, RH BS-1741988AYP
...
19
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
20
Ring, Foam BS-1740032MA
...
21
CLAMP, SCREW TYPE BS-47345MA
...
22
SCREW, 1/4-20X0.625 BS-703054
