1695419 Murray - 36" Tiller

Model: 1695419

Back To Assemblies

Save Part Not Listed?
product name

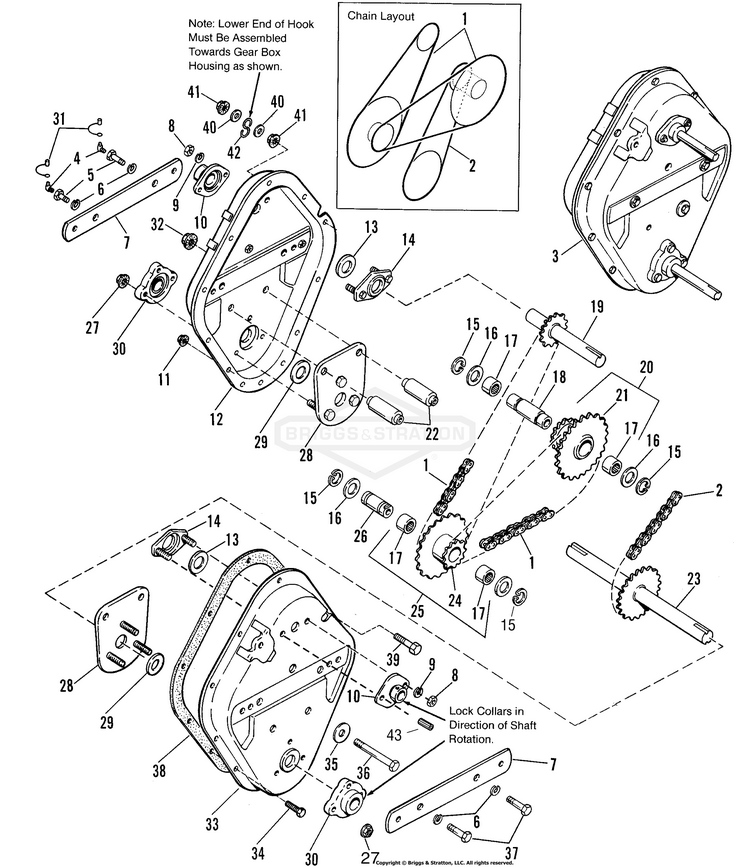

Housing Group

...
...
1
CHAIN BS-2105336SM
...
2
CHAIN BS-2178174SM
...
3
TRANSMISSION SUB ASSY. (Includes Ref. Nos. 1-16, 18-38 on this page & Includes Ref. Nos.1-5, 7, 11, 17, 18, 19, 34, 36 & 38 in the 36" Tiller Drive Group) BS-1650841SM
...
4
FITTING, Grease BS-2815019SM
...
5
BOLT, Side R.H. BS-2105132SM
...
6
WSHR,1/2,LCK,HELICAL BS-703341
...
7
BAR, Side BS-2105320ASM
...
8
HN, 5/16C GR5 YZ BS-7091511SM
...
9
WASHER, 5/16" LOCK BS-5025170SM
...
10
BEARING BS-1669337SM
...
11
NUT BS-703164
...
12
CASE ASSY., Half, R.H. BS-2105366ASM
...
13
SEAL BS-2105365SM
...
14
PLATE ASSY., Upper Bearing BS-1669338SM
...
15
RETAINER, EXT RING, 1 BS-703993
...
16
WASHER BS-2860208SM
...
18
SPACER, Inter. BS-2105192SM
...
19
SHAFT ASSY., Pulley BS-2105298SM
...
20
SPROCKET & BEARING ASSY. (Includes Ref. Nos. 17 & 21) BS-1650975SM
...
25
SPROCKET & BEARING ASSY. (Includes Ref. Nos. 17 & 24) BS-1650976SM
...
17
BEARING, Roller BS-2105195SM
...
22
SPACER-0.562IDX1.00 O BS-2105360ASM
...
23
SHAFT ASSY., Tine BS-2178177SM
...
26
SPACER, Internal BS-2105292SM
...
27
LOCKNUT, Hex, Jam, 3/8-16 BS-1930645
...
28
PLATE ASSY. BS-1669298SM
...
29
SEAL BS-2105357SM
...
30
BEARING BS-2105309SM
...
31
CAP, Grease BS-2105363SM
...
32
NUT-HEX FLANGE 1/2-1 BS-1930644SM
...
33
CASE ASSY., Half, L.H. BS-2105367ASM
...
34
CAPSCREW,5/16-18X.625 BS-703822
...
35
WASHER, 1/2 BS-1918431
...
36
CAPSCREW, Hex Hd., 1/2-13 x 4, Gr. 8 BS-1926158SM
...
37
CAPSCREW, 1/2-20X1 BS-703880
...
38
GASKET BS-2105373SM
...
39
CAPSCREW, Hex Head, 5/16-1 8 x 1-1 /4 BS-1921977
...
40
WASHER, FLAT BS-703878
...
41
NUT, HEX FLNG,5/16-18 BS-704067
...
42
"S" HOOK BS-1679204SM
...
43
ANCHOR, Spring BS-1707599SM
