1695419 Murray - 36" Tiller

Model: 1695419

Back To Assemblies

Save Part Not Listed?
product name

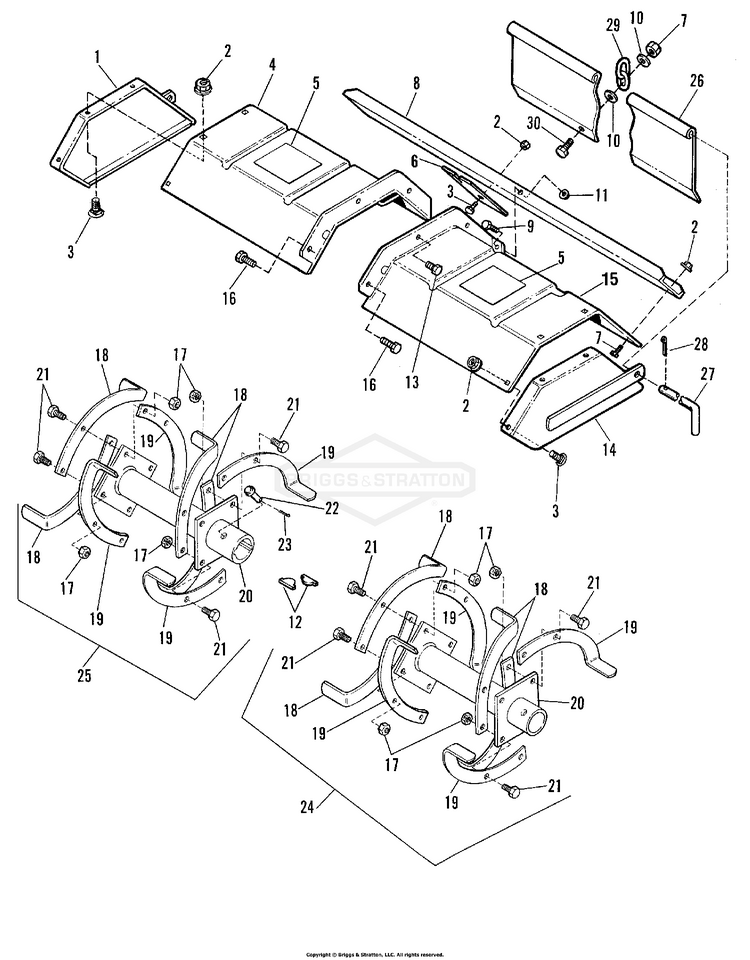

Tine & Deflector Group

...
...
1
PLATE, End, R.H. BS-1707990ASM
...
2
NUT, Hex Flange Whiz-Lock, 5/16-18 BS-703330
...
3
BOLT, 5/16-18X.625 G5 BS-703447
...
4
DEFLECTOR ASSY., R.H. BS-2105369ASM
...
5
DECAL, Danger BS-1679700SM
...
6
SHIELD BS-2105354ASM
...
7
NUT, HEX FLNG, 1/4-20 BS-703916
...
8
CHANNEL, Brace, Pivot BS-1707938ASM
...
9
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
...
10
WASHER, 1/4 BS-703229
...
11
NUT, Hex, Flange, 3/8-16 BS-1930645
...
12
KEY, HI PRO, 1/4 x 2 BS-2105337SM
...
13
BOLT, 3/8-16X0.75 BS-703955
...
14
PLATE, End, L.H. BS-1707991ASM
...
15
Deflector Assembly, L.H. BS-2105370ASM
...
16
SCREW BS-704038
...
17
LOCKNUT, Hex, 7/16-20 BS-1928867SM
...
18
BLADE, Tine, R.H. BS-2105376ASM
...
19
BLADE, Tine, L.H. BS-2105375ASM
...
20
HUB & PLATE ASSY. BS-1651504ASM
...
21
CAPSCREW, 7/16-20 x 1-1/2 BS-1920353SM
...
22
PIN, Hitch BS-2105249SM
...
23
PIN, Cotter, 1/8 x 3/8 BS-1918451SM
...
24
BLADE ASSY., L.H. BS-1650461SM
...
25
BLADE ASSY., R.H. BS-1650460SM
...
26
DEFLECTOR BS-1707945A
...
27
ROD, Deflector BS-1707939SM
...
28
CLIP, Spring BS-1918448SM
...
29
CHAIN BS-1707951SM
...
30
CAPSCREW,1/4-20X0.875 BS-703819
