1695419 Murray - 36" Tiller

Model: 1695419

Save
 Part Not Listed?Part Not Listed?
product name

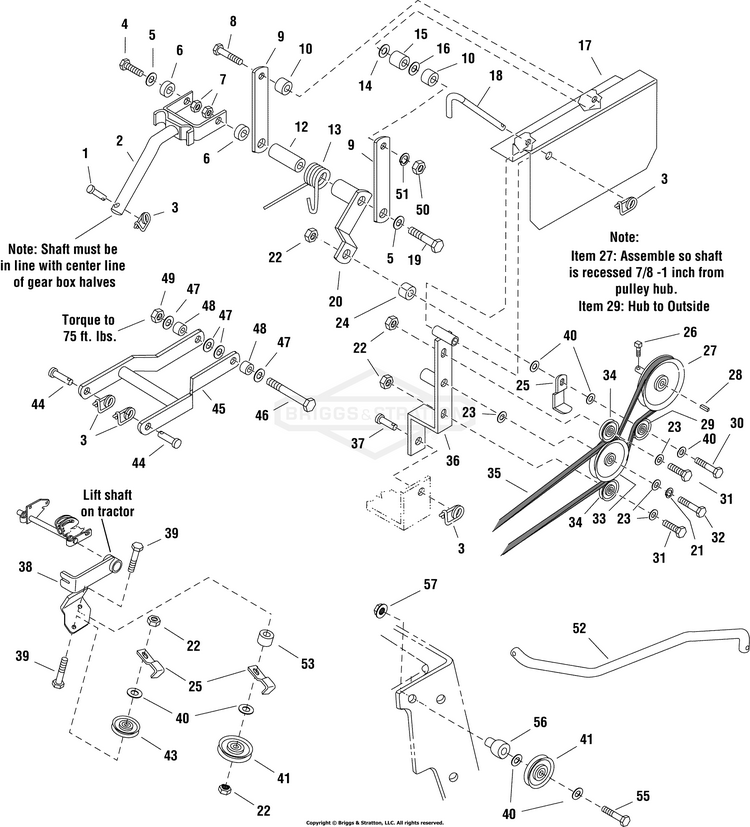

Drive Group

...
...
1
PIN, 0.375 X 2.00 BS-704241
...
2
BAR ASSY., Lift BS-1707569ASM
...
3
PIN, 5/16 X 0.375 BS-703852
...
4
HHCS, 7/16-14X1.25 BS-703579
...
5
WASHER-0.437(0.47IDX0 BS-1925125SM
...
6
SPACER BS-2105346SM
...
7
NUT-HEX FLANGE 7/16-1 BS-1930650SM
...
8
CAPSCREW,5/16-18X2.75 BS-703869
...
9
SUPPORT, Rear Belt Guard BS-2105359ASM
...
10
SPACER BS-1704716SM
...
12
SPACER BS-2105339ASM
...
13
SPRING, Torsion BS-1707593SM
...
14
WASHER BS-2860171SM
...
15
BUSHING BS-703121
...
16
WASHER BS-703332
...
17
GUARD, Belt BS-1707564ASM
...
18
ROD, Pivot BS-1657562SM
...
19
CAPSCREW, Hex Hd., 7/16-14 x 3-1/2 BS-1930585SM
...
20
LEVER ASSY., Clutch BS-2105295ASM
...
21
LOCKWASHER, SPLIT 3/8 BS-703454
...
22
NUT, 3/8-16 Hex Flange Esna, Black BS-703158
...
23
WASHER, FLAT BS-703878
...
24
SPACER BS-1709923SM
...
25
BELT GUIDE BS-1708352ASM
...
26
SCREW, Square Head Set, 3/8-16 x 1/2 G8 BS-1960474SM
...
27
PULLEY, W/Hub, 7.96 OD x .752ID x .562 BS-1723854SM
...
28
KEY, Parallel BS-2157427SM
...
29
PULLEY, IDLER BS-1721133SM
...
30
HHCS, 3/8-16 X 3.500 BS-703182
...
31
CAPSCREW, Hex Head, 3/8-16 x 1-3/4, Black BS-1921971
...
32
SCREW BS-703871
...
33
PULLEY, Idler BS-1706510SM
...
34
PULLEY, 1.875 OD, .375 ID, .97 Hi, Idler WD BS-1706511SM
...
35
V-BELT,167.40" Long BS-1723478SM
...
36
ARM ASSY., Idler BS-1708961ASM
...
37
PIN BS-1708298SM
...
38
ARM ASSEMBLY, Tiller Idler BS-1735064ASM
...
39
SCREW BS-703872
...
40
WASHER BS-704128
...
41
PULLEY, Idler BS-1724387SM
...
43
PULLEY, w/Bearing BS-1721134SM
...
44
PIN, Round Head Drilled, 7/16 x 1-3/4 BS-1753526
...
45
FRAME ASSY. BS-1651844ASM
...
46
CAPSCREW, Hex Hd., 1/2-13 x 5 BS-1926159SM
...
47
WASHER, FLAT BS-703451
...
48
SPACER BS-2105386SM
...
49
NUT-HEX FLANGE 1/2-1 BS-1930644SM
...
50
HN, 5/16C GR5 YZ BS-7091511SM
...
51
LCKWSHR BS-703116
...
52
ROD, Diff Lock, 15" Long BS-1735052SM
...
53
SPACER BS-1667812SM
...
55
CAPSCREW,3/8-16X2.5 BS-703873
...
56
SPACER,3/8X3/4X15/16 BS-1706644SM
...
57
LOCKNUT BS-703793

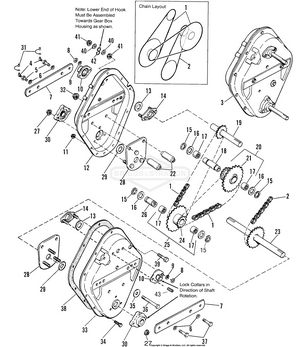

Housing Group

...
...
1
CHAIN BS-2105336SM
...
2
CHAIN BS-2178174SM
...
3
TRANSMISSION SUB ASSY. (Includes Ref. Nos. 1-16, 18-38 on this page & Includes Ref. Nos.1-5, 7, 11, 17, 18, 19, 34, 36 & 38 in the 36" Tiller Drive Group) BS-1650841SM
...
4
FITTING, Grease BS-2815019SM
...
5
BOLT, Side R.H. BS-2105132SM
...
6
WSHR,1/2,LCK,HELICAL BS-703341
...
7
BAR, Side BS-2105320ASM
...
8
HN, 5/16C GR5 YZ BS-7091511SM
...
9
LCKWSHR BS-703116
...
10
BEARING BS-1669337SM
...
11
NUT BS-703164
...
12
CASE ASSY., Half, R.H. BS-2105366ASM
...
13
SEAL BS-2105365SM
...
14
PLATE ASSY., Upper Bearing BS-1669338SM
...
15
RETAINER, EXT RING, 1 BS-703993
...
16
WASHER BS-2860208SM
...
18
SPACER, Inter. BS-2105192SM
...
19
SHAFT ASSY., Pulley BS-2105298SM
...
20
SPROCKET & BEARING ASSY. (Includes Ref. Nos. 17 & 21) BS-1650975SM
...
25
SPROCKET & BEARING ASSY. (Includes Ref. Nos. 17 & 24) BS-1650976SM
...
17
BEARING, Roller BS-2105195SM
...
22
SPACER-0.562IDX1.00 O BS-2105360ASM
...
23
SHAFT ASSY., Tine BS-2178177SM
...
26
SPACER, Internal BS-2105292SM
...
27
LOCKNUT, Hex, Jam, 3/8-16 BS-1930645
...
28
PLATE ASSY. BS-1669298SM
...
29
SEAL BS-2105357SM
...
30
BEARING BS-2105309SM
...
31
CAP, Grease BS-2105363SM
...
32
NUT-HEX FLANGE 1/2-1 BS-1930644SM
...
33
CASE ASSY., Half, L.H. BS-2105367ASM
...
34
CAPSCREW,5/16-18X.625 BS-703822
...
35
WASHER, 1/2 BS-1918431
...
36
CAPSCREW, Hex Hd., 1/2-13 x 4, Gr. 8 BS-1926158SM
...
37
CAPSCREW, 1/2-20X1 BS-703880
...
38
GASKET BS-2105373SM
...
39
CAPSCREW, Hex Head, 5/16-1 8 x 1-1 /4 BS-1921977
...
40
WASHER, FLAT BS-703878
...
41
NUT, HEX FLNG,5/16-18 BS-704067
...
42
"S" HOOK BS-1679204SM
...
43
ANCHOR, Spring BS-1707599SM

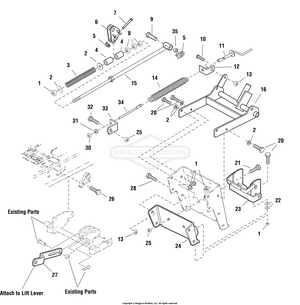

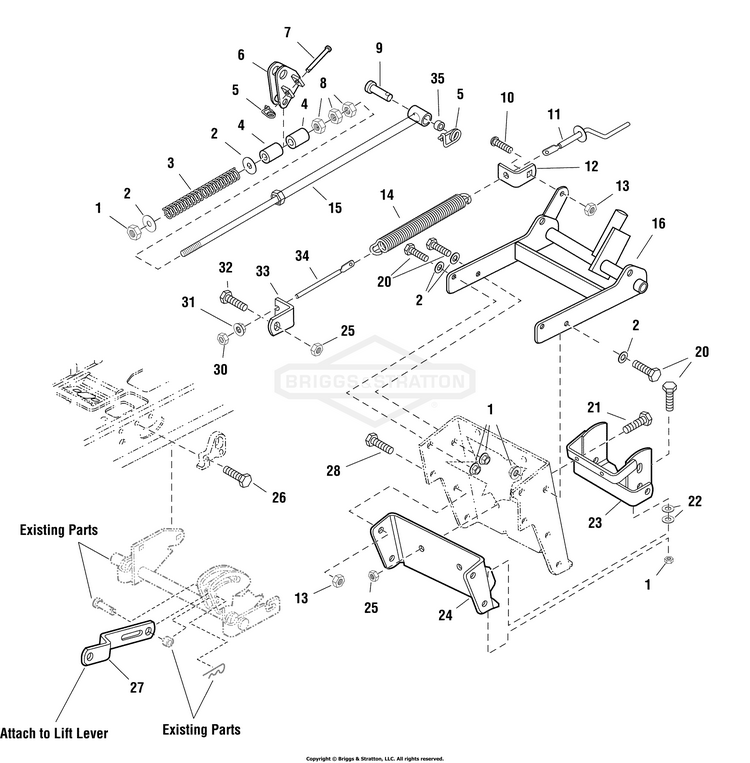

Lift Group

...
...
1
NUT, LOCK, 1/2-13 BS-703567
...
2
WASHER, 1/2 BS-1918431
...
3
SPRING BS-2171011SM
...
4
SPACER BS-1668662SM
...
5
PIN, 5/16 X 0.375 BS-703852
...
6
LEVER ASSEMBLY, Rear Hitch BS-1723790ASM
...
7
PIN, Hitch BS-2105249SM
...
8
NUT,1/2-13,GR5,HEX,ZC BS-703340
...
9
PIN, Yoke BS-1960277SM
...
10
BOLT, RD SQ 3/8-16X1 BS-703815
...
11
CRANK ASSEMBLY BS-1723840ASM
...
12
BRACKET, Crank BS-1723841ASM
...
13
NUT BS-703117
...
14
SPRING, Extension BS-1723412SM
...
15
ROD & TUBE ASSEMBLY BS-1686941SM
...
16
HITCH ASSEMBLY BS-1723107ASM
...
20
CAPSCREW, 1/2-13X1.5 BS-703571
...
21
CAPSCREW, Hex Head, 1/2-13 x 1-1/4 BS-1921977
...
22
WASHER, 0.516IDX1OD BS-703853
...
23
LOWER HITCH ASSY. BS-1707470ASM
...
24
HITCH SUPPORT BS-1722608ASM
...
25
NUT, HEX, 5/16-18 BS-703902
...
26
CAPSCREW, Hex Head, 5/16-18 x 1, G8, Black BS-1926149SM
...
27
BAR, Lift, 9-7/8 Long BS-1723795ASM
...
28
SCREW BS-703407
...
30
NUT, Hex, Jam Centerlock, 1/2-13 BS-1924650SM
...
31
NUT, Large Flange, 1/2-13 BS-1960515SM
...
32
CAPSCREW, 5/16-18X1 BS-703585
...
33
BRACKET BS-1723842ASM
...
34
ROD, Threaded BS-1723844SM
...
35
SPACER BS-2175647SM

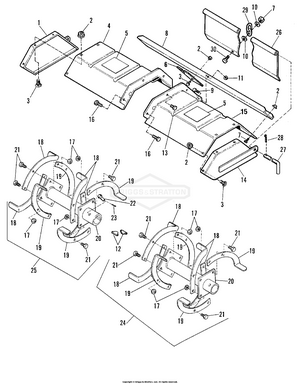

Tine & Deflector Group

...
...
1
PLATE, End, R.H. BS-1707990ASM
...
2
NUT, Hex Flange Whiz-Lock, 5/16-18 BS-703330
...
3
BOLT, 5/16-18X.625 G5 BS-703447
...
4
DEFLECTOR ASSY., R.H. BS-2105369ASM
...
5
DECAL, Danger BS-1679700SM
...
6
SHIELD BS-2105354ASM
...
7
NUT, HEX FLNG, 1/4-20 BS-703916
...
8
CHANNEL, Brace, Pivot BS-1707938ASM
...
9
SCREW BS-703407
...
10
WASHER, 1/4 BS-703229
...
11
NUT, Hex, Flange, 3/8-16 BS-1930645
...
12
KEY, HI PRO, 1/4 x 2 BS-2105337SM
...
13
BOLT, 3/8-16X0.75 BS-703955
...
14
PLATE, End, L.H. BS-1707991ASM
...
15
Deflector Assembly, L.H. BS-2105370ASM
...
16
SCREW BS-704038
...
17
LOCKNUT, Hex, 7/16-20 BS-1928867SM
...
18
BLADE, Tine, R.H. BS-2105376ASM
...
19
BLADE, Tine, L.H. BS-2105375ASM
...
20
HUB & PLATE ASSY. BS-1651504ASM
...
21
CAPSCREW, 7/16-20 x 1-1/2 BS-1920353SM
...
22
PIN, Hitch BS-2105249SM
...
23
PIN, Cotter, 1/8 x 3/8 BS-1918451SM
...
24
BLADE ASSY., L.H. BS-1650461SM
...
25
BLADE ASSY., R.H. BS-1650460SM
...
26
DEFLECTOR BS-1707945A
...
27
ROD, Deflector BS-1707939SM
...
28
CLIP, Spring BS-1918448SM
...
29
CHAIN BS-1707951SM
...
30
CAPSCREW,1/4-20X0.875 BS-703819
...
...
...
