1695323 Murray - ST1332S, Dual Stage Snow Thrower (2007)

Model: 1695323

Back To Assemblies

Save Part Not Listed?
product name

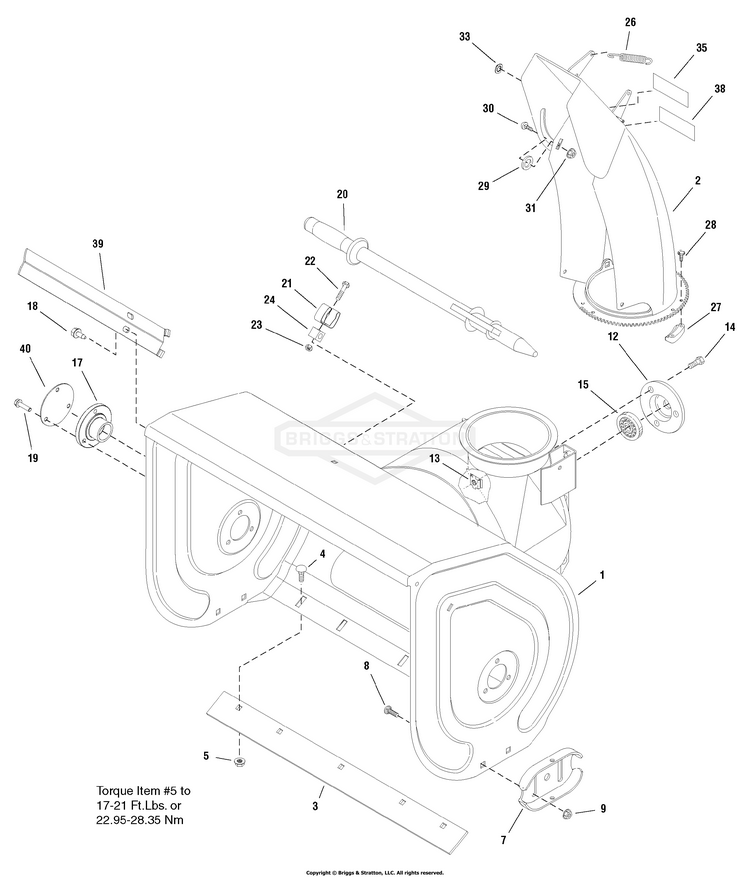

Auger Housing and Chute Group - 28", 30" & 32"

...
...
1
AUGER HOUSING ASSEMBLY, 28" Auger (Used on Model ST9528 & ST1028S) BS-MT1734565FSM
...
1
AUGER HOUSING ASSEMBLY, 30" Auger (Used on Model ST1130S) BS-MT1734742FSM
...
1
AUGER HOUSING ASSEMBLY, 32" Auger (Used on Model ST1332S) BS-MT1734566FSM
...
2
CHUTE & DEFLECTOR ASSEMBLY BS-MT1732744FSM
...
3
BLADE, Scraper, 28" (Used on Model ST9528 & ST1028S) BS-MT1709947ASM
...
3
BLADE, Scraper, 30" (Used on Model ST1130S) BS-MT1732385ASM
...
3
BLADE, Scraper, 32" (Used on Model ST1332S) BS-MT1709948ASM
...
4
CARRIAGE BOLT, 5/16-18 x 5/8 G5 BS-MT1960699SM
...
5
NUT, Hex Flange Two-Way Lock, 5/16-18 BS-MT1935048SM
...
7
SKID, Shoe Reversible BS-MT1727854ASM
...
8
CARRIAGE BOLT, 3/8-16 x 3/4 G5 BS-MT1960711SM
...
9
NUT, Hex Flange ESNA, 3/8-16 BS-MT1960687SM
...
12
BEARING, Retainer BS-MT1665982ASM
...
13
RETAINER, Nut, 5/16-18 BS-MT1930659SM
...
14
SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4 BS-MT1960738SM
...
15
BEARING, Greased BS-MT2108202SM
...
17
BUSHING, Auger Flange BS-MT1733103SM
...
18
SCREW, Hex Washer Head Taptite 5/16-18 x 3/4 (Used on Models ST1028S, ST1130S & ST1332S) BS-MT1664847SM
...
19
SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4 BS-MT1931202SM
...
20
STICK, Cleanout w/Brush BS-MT1733209SM
...
21
CLIP,RETAINER YZ BS-1501672MA
...
22
SCREW, Hex Washer Head Slot BS-MT2860604SM
...
23
NUT, Hex Lock 10-24 w/Nylon Insert BS-MT1933896SM
...
24
BLOCK,UNIVERSAL PIVOT BS-578063MA
...
26
SPRING, Extension BS-MT1733455SM
...
27
RETAINER, SPOUT BS-MT7011938SM
...
28
CAPSCREW, Hex Washer Head Taptite, #10C x 5/8 GR5 BZ BS-MT1960001SM
...
29
WASHER, Nylon, .388 x 1.12 x .030 BS-MT2860210SM
...
30
CARRIAGE BOLT, 5/16-18 x 3/4 G5 BS-MT1931333SM
...
31
NUT, Hex Flange ESNA, 5/16-18 BS-MT1960686SM
...
33
NUT, Push for .312 DIA Stud Capped .625OD BS-MT1932718SM
...
35
DECAL, Hinge Upper BS-MT1734738SM
...
38
DECAL, Hinge Lower BS-MT1734739SM
...
39
CUTTER, Drift (Used on Models ST1028S, ST1130S & ST1332S) BS-MT1733102ASM
...
40
COVER, Bushing BS-MT1734932ASM
