1695323 Murray - ST1332S, Dual Stage Snow Thrower (2007)

Model: 1695323

Save Part Not Listed?

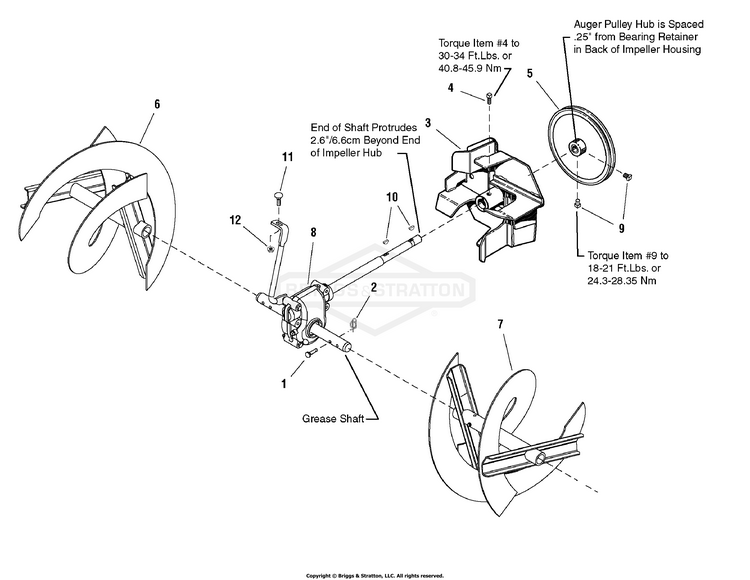

Auger Drive Group - 26", 28", 30" & 32"

PIN, Shear BS-MT1668344SM

COTTER PIN, 1/4" Self Locking BS-MT7023590SM

IMPELLER ASSEMBLY BS-MT1612187ASM

SCREW, Set Square Head Cup Point, 3/8-16 x 1/2 G8 BS-MT1960474SM

PULLEY, 8.40 OD .752ID .720WD W/Hub BS-MT1732185SM

AUGER ASSEMBLY, 24" & 26" R.H. (Used On ST8526) BS-MT1734674ASM

AUGER ASSEMBLY, 28" & 30" R.H. (Used On ST9528, ST1028S & ST1130S) BS-MT1734676ASM

AUGER ASSEMBLY, 32" R.H. (Used On ST1332S) BS-MT1734678ASM

AUGER ASSEMBLY, 24" & 26" L.H. (Used On ST8526) BS-MT1734673ASM

AUGER ASSEMBLY, 28" & 30" L.H. (Used On ST9528, ST1028S & ST1130S) BS-MT1734675ASM

AUGER ASSEMBLY, 32" L.H. (Used On ST1332S) BS-MT1734677ASM

GEAR BOX ASSEMBLY BS-MT1732303SM

SCREW, Set Square Head Cup Point, 5/16-18 x 1/2 G8 BS-MT1928721SM

KEY, Woodruff BS-MT2818312SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5 BS-MT1931333SM

NUT, Hex Flange Whiz Lock, 5/16-18 BS-MT1931277SM

TUBE (Used On ST8526 & ST1130S) BS-MT1733406SM
