1695319 Murray - ST8526, Dual Stage Snow Thrower (2007)

Model: 1695319

Back To Assemblies

Save Part Not Listed?
product name

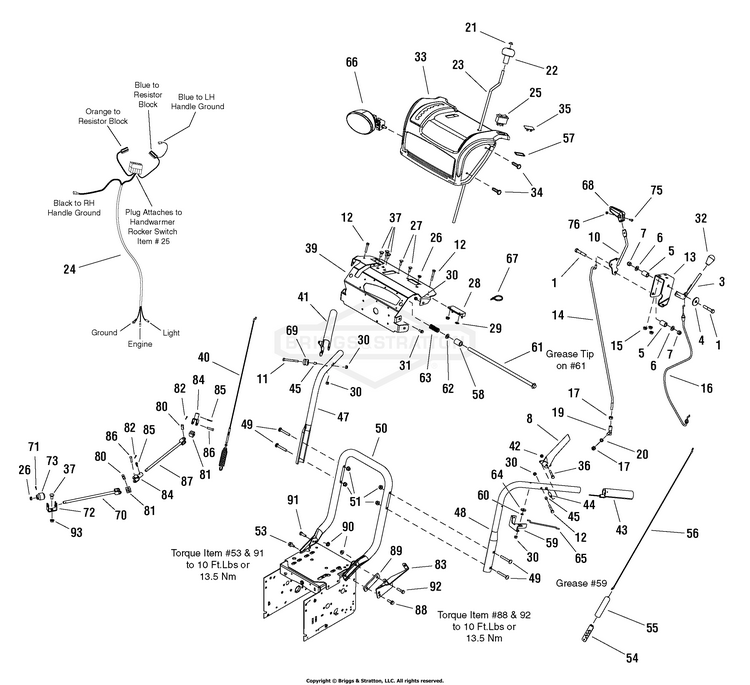

Handles and Controls Group

...
...
1
CAPSCREW, Hex Head 3/8-16 x 2 G5 BS-MT1923701SM
...
3
ROD, Remote Chute BS-MT1732427SM
...
4
WASHER, 3/8 BS-MT1924356SM
...
5
SPRING,.509 DIA X0.75 BS-50786MA
...
6
WASHER, 3/8 BS-MT1918266SM
...
7
NUT, Hex Lock ESNA Light 3/8-16 NC3B BS-MT1919439SM
...
8
HANDLE, Clutch L.H. BS-MT1722667SM
...
10
ROD & PLATE ASSEMBLY, Speed Control BS-MT1733205SM
...
11
CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5 BS-MT1923282SM
...
12
CAPSCREW, Hex Head 1/4-20 x 1-3/4 G5 BS-MT1921962SM
...
13
BRACKET, Speed & Deflector Control 12GA BS-MT1733045ASM
...
14
ROD, Link Speed Control BS-MT1734354SM
...
15
NUT, Hex Flange 5/16-18, Whiz Lock Small BS-MT1931277SM
...
16
CABLE, Deflector Control BS-MT1732971SM
...
17
NUT, Hex 5/16-24 BS-MT2820263SM
...
19
BALLJOINT,STEEL YZ BS-50782MA
...
20
LOCKWASHER, Spring 5/16 BS-MT1917356SM
...
21
NUT, Push Pal 5/16 Diameter Stud Capped BS-MT1960093SM
...
22
KNOB, Spinner BS-MT1714084SM
...
23
ROD, Chute Control BS-MT1715658SM
...
24
HARNESS, Wiring Handwarmers (Used on ST1130S & ST1332S) BS-MT1732738SM
...
25
SWITCH, Rocker Hand Warmer (Used on ST1130S & ST1332S) BS-MT1732563SM
...
26
BUSHING BS-MT1667588SM
...
27
CARRIAGE BOLT, 1/4-20 x 3/4 G5 (Used on ST1130S & ST1332S) BS-MT1931317SM
...
28
RESISTOR BLOCK, Hand Warmers (Used on ST1130S & ST1332S) BS-MT1724037SM
...
29
NUT, Hex KEPS 1/4-20 Conical Washer (Used on ST1130S & ST1332S) BS-MT1960685SM
...
30
NUT, Hex Lock ESNA Light 1/4-20 BS-MT1920397SM
...
31
SCREW, Hex Washer Head Taptite 1/4-20 x 5/8 BS-MT1927429SM
...
32
KNOB, Interior Thread 3/8-16 BS-MT1732470SM
...
33
COVER, Panel 16GA BS-MT1733778FSM
...
34
SCREW, Truss Head Torx Drive 1/4-20 x 3/4 BS-MT1960715SM
...
35
PLUG, Dash Hole (Used on ST8526 & ST1028S) BS-MT1709188SM
...
36
CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5 BS-MT1922837SM
...
37
CARRIAGE BOLT, 5/16-18 x 3/4 G5 BS-MT1931333SM
...
39
SUPPORT, Dash Panel Cover BS-MT1732064ASM
...
40
CABLE & SPRING ASSEMBLY, Auger Drive R.H. BS-MT1732471SM
...
41
HANDLE, Clutch R.H. BS-MT1722638SM
...
42
NUT, Hex Centerlock 1/4-20 BS-MT1923358SM
...
43
GRIP, Black Soft 1" Diameter (Used on ST8526 & ST1028S) BS-MT1726317SM
...
43
HAND GRIP, Heated 1" Diameter (Used on ST1130S & ST1332S) BS-MT1723965SM
...
44
SPACER, Handle BS-MT1715655SM
...
45
SPACER BS-MT1678392SM
...
47
HANDLE, Upper R.H. Tubular BS-MT1734587ASM
...
48
HANDLE, Upper L.H. Tubular BS-MT1734586ASM
...
49
CARRIAGE BOLT, 5/16-18 x 2-1/4 G5 BS-MT1960723SM
...
50
HANDLE, Lower Tubular BS-MT1732781ASM
...
51
NUT, Hex Flange 5/16-18 ESNA BS-MT1960686SM
...
53
SCREW, Hex Washer Head Taptite 5/16-18 x 3/4 BS-MT1664847SM
...
54
BRACKET, CABLE ADJ BL BS-313441MA
...
55
BOOT, CLUTCH SPRING BS-308146MA
...
56
CABLE, Drive BS-MT1502113MA
...
57
SHIM, Spacer 18GA (Used on ST8526 & ST1028S) BS-MT1733730SM
...
58
SPACER BS-MT1679166SM
...
59
BRACKET, Free Hand Control BS-MT1733505ASM
...
60
SPACER, Powdered Metal BS-MT1733095SM
...
61
ROD & SPRING ASSEMBLY, w/Pin BS-MT1733509SM
...
62
WASHER, 1/2 BS-MT1960027SM
...
63
SPRING, Compression BS-MT2108360SM
...
64
WASHER, 1/4 BS-MT1960353SM
...
65
ROD, Hold Down BS-MT1722630SM
...
66
HEADLIGHT ASSEMBLY, Oval Clear (Used on ST1028S ST1130S & ST1332S) BS-MT1732322SM
...
67
TIE, Self Locking (Used on ST1130S & ST1332S) BS-MT1701011SM
...
68
KNOB, Slot Speed BS-MT1733192SM
...
69
CABLE SPOOL, Auger Control BS-579860MA
...
70
ROD & YOKE ASSEMBLY, Chute BS-MT1732761SM
...
71
PIN, Spring BS-MT2816168SM
...
72
SUPPORT, Worm 10GA BS-MT1611911SM
...
73
WORM, Chute L.H. BS-MT1668186SM
...
75
SCREW, Round Head Phillips #10-24 x 3/4 BS-MT1960589SM
...
76
NUT, Hex Lock 10-24 W/Nylon Insert BS-MT1933896SM
...
80
PIN,UNIV JOINT 3/8X1. BS-578060MA
...
81
BLOCK,UNIVERSAL PIVOT BS-578063MA
...
82
PIN, COTTER .06X .50 BS-579493MA
...
83
SUPPORT, Chute Rod BS-MT1733737ASM
...
84
YOKE & TUBE ASSEMBLY, Chute BS-MT1733611SM
...
85
PIN-HAIR, CHUTE GEAR BS-1501293MA
...
86
LF PIN, CLEVIS .25DX BS-578309MA
...
87
ROD & YOKE ASSEMBLY, Chute BS-MT1733182SM
...
88
SCREW, Hex Washer Head Taptite 5/16-18 x 1 BS-MT1960373SM
...
89
SPACER, Block BS-MT1733379ASM
...
90
NUT, Hex Flange 5/16-18 Two-Way Lock BS-MT1935048SM
...
91
CAPSCREW, Hex Head 5/16-18 x 1 BS-MT1921333SM
...
92
CAPSCREW, Hex Head 5/16-18 x 1-1/4 G5 BS-MT1921977SM
...
93
NUT, Hex Keps Conical Washer, 5/16-18 BS-MT1960684SM
