product name

1695196 Murray - Hitch, Sub Frame

Model: 1695196

Save
 Part Not Listed?Part Not Listed?
product name

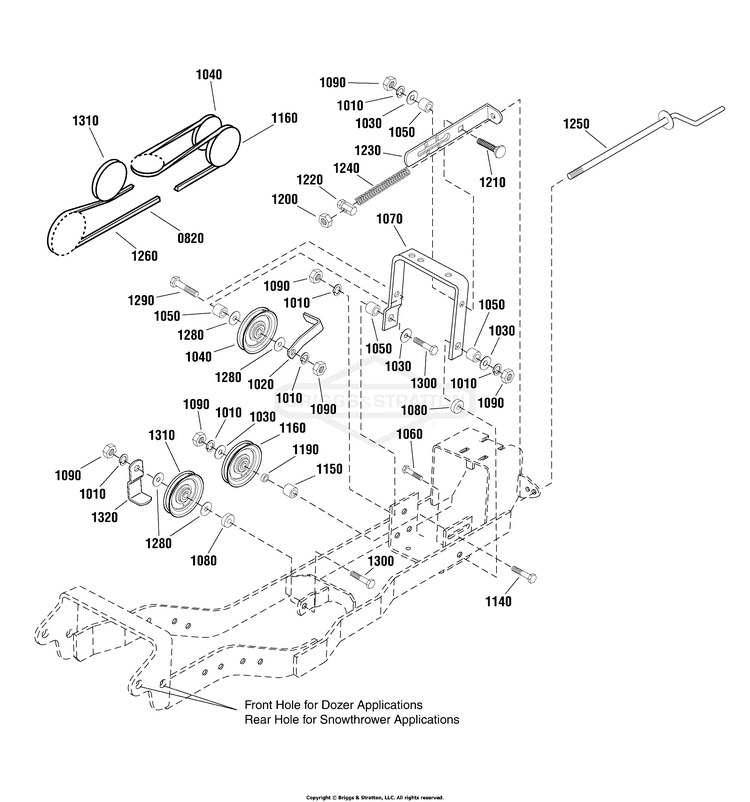

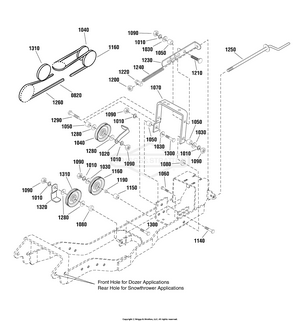

Drive Group - Sub Frame

...
...
0820
BELT, Drive, 48" BS-1703372SM
...
1010
LOCKWASHER, SPLIT 3/8 BS-703454
...
1020
STOP, Belt BS-2162115ASM
...
1030
WASHER, FLAT BS-703878
...
1040
PULLEY, Idler BS-2171247SM
...
1050
SPACER BS-2158227SM
...
1060
CAPSCREW, 3/8-16X2 BS-703589
...
1070
PIVOT BRACKET BS-1722963ASM
...
1080
SPACER BS-1667811SM
...
1090
NUT, HEX, 3/8-16 BS-703577
...
1140
SCREW,3/8-16X2.750 BS-704037
...
1150
SPACER BS-1667812SM
...
1160
PULLEY & BEARING ASMY BS-1666287ASM
...
1190
SPACER BS-1666294SM
...
1200
NUT, Hex Lock, 3/8-16 BS-1930645
...
1210
CARRIAGE BOLT, 3/8-16 x 1-1/4, G5 BS-1960268SM
...
1220
TRUNNION BS-1704743SM
...
1230
GUIDE & WASHER ASSY BS-1722972ASM
...
1240
SPRING BS-1668282SM
...
1250
ROD & WASHER ASMY-ADJ BS-1757604YP
...
1260
BELT, Drive, 42" BS-1703371SM
...
1280
WASHER BS-704128
...
1290
SCREW BS-703872
...
1300
CAPSCREW, Hex Head, 3/8-16 x 1-3/4 BS-1921971
...
1310
PULLEY, Idler BS-1724387SM
...
1320
GUARD, Belt BS-1677135ASM

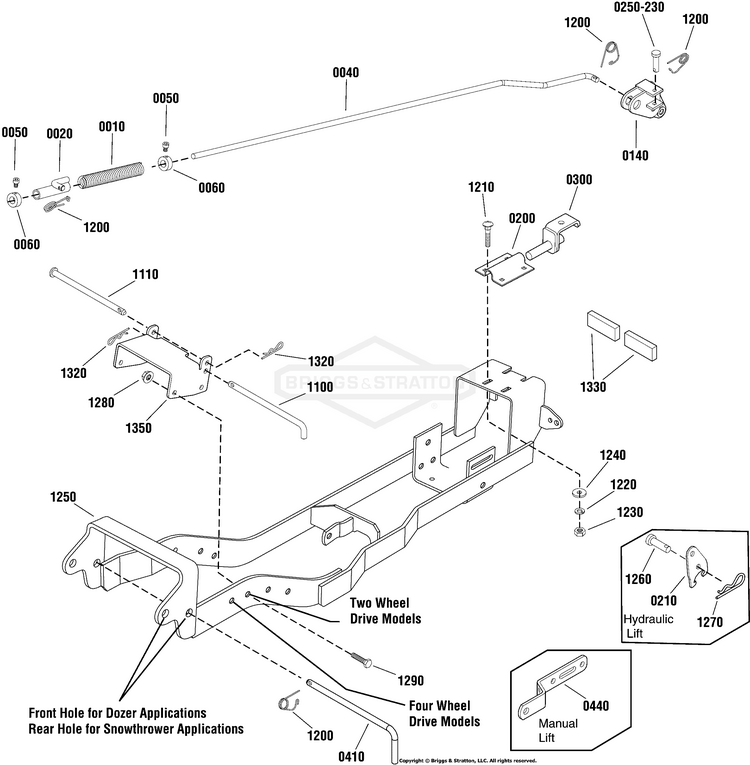

Hitch Group

...
...
0010
SPRING BS-2171011SM
...
0020
TUBE & PIN ASSEMBLY BS-1723115SM
...
0040
ROD, Rear Lift BS-1722946SM
...
0050
SCREW, Square Head Set, 5/16-18 x 1/2 G8 BS-1928721SM
...
0060
COLLAR BS-703150
...
0140
LIFT LEVER ASSEMBLY BS-1724025ASM
...
0200
CLAMP, Adjusting BS-1653768ASM
...
0210
PLATE, Presser Lock BS-1722469SM
...
0250-230
PIN, Hitch BS-2105249SM
...
0300
SHAFT & HOOK ASSEMBLY BS-1723292ASM
...
0410
ROD, Hitch BS-1723309SM
...
0440
BAR, Lift, 9-7/8 Long BS-1723795ASM
...
1100
ROD-.500DIA 09.25 LG BS-1733812SM
...
1110
ROD-.500DIA 8.75 LG BS-1734050SM
...
1200
PIN, 5/16 X 0.375 BS-703852
...
1210
BOLT, CRRG, 5/16-18X1 BS-703800
...
1220
LCKWSHR BS-703116
...
1230
HN, 5/16C GR5 YZ BS-7091511SM
...
1240
WASHER, 5/16 BS-703298
...
1250
PUSH BAR ASSEMBLY, Hitch Sub Frame BS-1733779A
...
1260
PIN, Flat Head Drilled, 1/2 x 2-1/8 Long BS-1722819SM
...
1270
CLIP, Hair Pin BS-1960033SM
...
1280
LOCKNUT BS-703793
...
1290
SCREW BS-703407
...
1320
PIN, 3/32 X 1.6 BS-703300
...
1330
REFLECTOR, Rear Red 1-3/8 x 3 BS-1701600SM
...
1350
LATCH-PUSH BAR .250TH BS-1733814ASM
...
...
...
