1695195 Murray - Hitch, Sub Frame

Model: 1695195

Save Part Not Listed?
product name

Popular Parts

Popular Parts

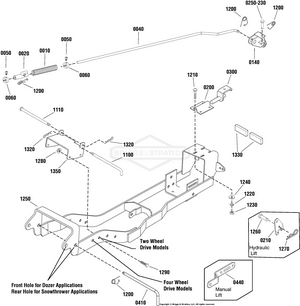

Hitch Group

...
...
0010
SPRING BS-2171011SM
...
0020
TUBE & PIN ASSEMBLY BS-1723115SM
...
0040
ROD, Rear Lift BS-1722946SM
...
0050
SCREW, Square Head Set, 5/16-18 x 1/2 G8 BS-1928721SM
...
0060
COLLAR BS-703150
...
0140
LIFT LEVER ASSEMBLY BS-1724025ASM
...
0200
CLAMP, Adjusting BS-1653768ASM
...
0210
PLATE, Presser Lock BS-1722469SM
...
0250-230
PIN, Hitch BS-2105249SM
...
0300
SHAFT & HOOK ASSEMBLY BS-1723292ASM
...
0410
ROD, Hitch BS-1723309SM
...
0440
BAR, Lift, 9-7/8 Long BS-1723795ASM
...
1100
ROD-.500DIA 09.25 LG BS-1733812SM
...
1110
ROD-.500DIA 8.75 LG BS-1734050SM
...
1200
PIN, 5/16 X 0.375 BS-703852
...
1210
BOLT, CRRG, 5/16-18X1 BS-703800
...
1220
WASHER, 5/16" LOCK BS-5025170SM
...
1230
HN, 5/16C GR5 YZ BS-7091511SM
...
1240
WASHER, 5/16 BS-703298
...
1250
PUSH BAR ASSEMBLY, Hitch Sub Frame BS-1733779A
...
1260
PIN, Flat Head Drilled, 1/2 x 2-1/8 Long BS-1722819SM
...
1270
CLIP, Hair Pin BS-1960033SM
...
1280
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
1290
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
...
1320
PIN, 3/32 X 1.6 BS-703300
...
1330
REFLECTOR, Rear Red 1-3/8 x 3 BS-1701600SM
...
1350
LATCH-PUSH BAR .250TH BS-1733814ASM
