1695000 Murray - ST1130S, Dual Stage Snow Thrower (2006)

Model: 1695000

Back To Assemblies

Save Part Not Listed?
product name

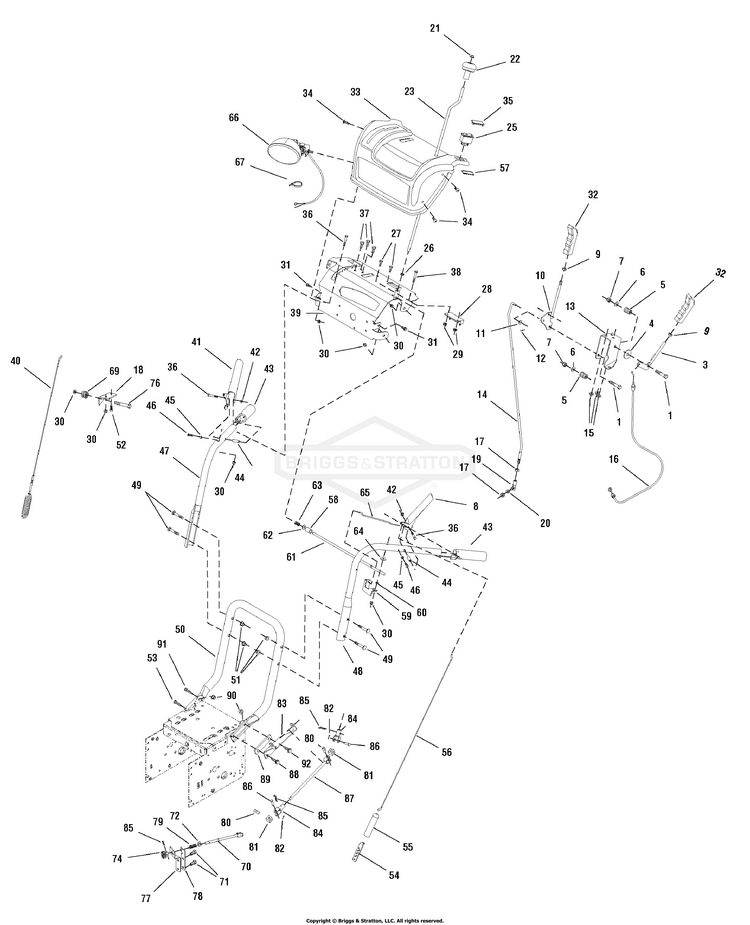

Handles and Controls Group

...
...
1
CAPSCREW, Hex Head 3/8-16 x 2 G5 BS-MT1923701
...
3
ROD, Chute BS-MT1732427
...
4
WASHER, 3/8 BS-MT1924356
...
5
SPRING BS-MT50786
...
6
WASHER, 3/8 BS-MT1918266
...
7
NUT, Hex Lock ESNA Light, 3/8-16 BS-MT1919439
...
8
GRIP, Clutch L.H. BS-MT1722667
...
9
NUT, Hex Jam, 3/8-16 BS-MT1917421
...
10
ROD & BRACKET ASSEMBLY, Speed BS-MT1733614
...
11
WASHER, 1/4 BS-MT1921319
...
12
COTTER PIN BS-MT1918447
...
13
BRACKET, Control BS-MT1733045A
...
14
ROD BS-MT1732531
...
15
NUT, Hex Flange Whiz Lock, 5/16-18 BS-MT1931277
...
16
CABLE, Deflector Control BS-MT1732971
...
17
NUT, Hex 5/16-24 BS-MT2820263
...
18
BRACKET, Spout Cable BS-MT1733481A
...
19
BALLJOINT, Steel BS-MT50782
...
20
LOCKWASHER, Spring 5/16 BS-MT1917356
...
21
NUT, Push Pal Stud Capped 3/8 BS-MT1960093
...
22
KNOB, Spinner BS-MT1714084
...
23
ROD, Chute Control BS-MT1715658
...
24
HARNESS, Wiring Hand Warmers (Used on ST1130S & ST1332S) BS-MT1732738
...
25
SWITCH, Rocker Hand Warmer (Used on ST1130S & ST1332S) BS-MT1732563
...
26
BUSHING BS-MT1667588
...
27
CARRIAGE BOLT, 1/4-20 x 3/4 G5 BS-MT1931317
...
28
RESISTOR BLOCK (Used on ST1130S & ST1332S) BS-MT1724037
...
29
NUT, Hex KEPS, 1/4-20 Conical Washer BS-MT1960685
...
30
NUT, Hex Lock ESNA Light 1/4-20 BS-MT1920397
...
31
SCREW, Hex Washer Head Taptite, 1/4-20 x 5/8 BS-MT1927429
...
32
GRIP, Lever BS-MT306689
...
33
COVER, Panel BS-MT1732416F
...
34
SCREW, Truss Head Torx Drive 1/4-20 x 3/4 BS-MT1960715
...
35
PLUG, Hole (Used on ST1028S) BS-MT1709188
...
36
CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5 BS-MT1922837
...
37
CARRIAGE BOLT, 5/16-18 x 3/4 G5 BS-MT1931333
...
38
CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5 BS-MT1921962
...
39
SUPPORT, Dash Panel Cover BS-MT1732064A
...
40
CABLE & SPRING ASSEMBLY, Auger Drive R.H. BS-MT1732471
...
41
GRIP, Clutch R.H. BS-MT1722638
...
42
NUT, Hex Centerlock 1/4-20 BS-MT1923358
...
43
HAND GRIP, Heated (Used on ST1130S & ST1332S) BS-MT1723965
...
43
GRIP (Used on ST1028S) BS-MT1726317
...
44
SPACER, Handle BS-MT1715655
...
45
SPACER BS-MT1715654
...
46
SCREW, Pan Head Torx, 1/4-20 x 3/4 Thread Cut BS-MT1960671
...
47
HANDLE, Upper R.H. BS-MT1732783A
...
48
HANDLE, Upper L.H. BS-MT1732782A
...
49
CARRIAGE BOLT, 5/16-18 x 2-1/4 G5 BS-MT1960723
...
50
HANDLE, Lower BS-MT1732781A
...
51
NUT, Hex Flange ESNA, 5/16-18 BS-MT1960686
...
52
SCREW, Pan Head Torx BS-MT1725702
...
53
SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 BS-MT1664847
...
54
BRACKET, Cable BS-MT313441
...
55
BOOT, Control Spring BS-MT308146
...
56
CABLE, Front Drive BS-MT1502113
...
57
SHIM, Hole Plug (Used on ST1028S) BS-MT1733730
...
58
SPACER BS-MT1679166
...
59
BRACKET, Free Hand BS-MT1733505A
...
60
SPACER, Powerdered Metal BS-MT1733095
...
61
ROD & SPRING ASSEMBLY, with Pin BS-MT1733509
...
62
WASHER, 1/2 BS-MT1960027
...
63
SPRING, Compression BS-MT210836
...
64
WASHER, 1/4 BS-MT1960353
...
65
ROD, Hold Down BS-MT1722630
...
66
HEADLIGHT ASSEMBLY, Oval Clear BS-MT1732322
...
67
TIE, Self Locking BS-MT2825094
...
69
SPOOL CABLE, Auger Control BS-MT579860
...
70
ROD & YOKE ASSEMBLY, Chute BS-MT1732362
...
71
CAPSCREW, Hex Head 3/8-16 x 3/4 G5 BS-MT1921965
...
72
WASHER, 5/16 BS-MT1918265
...
74
GEAR, 9 Tooth BS-MT1501067
...
76
CARRIAGE BOLT, 1/4-20 x 1-1/4 G5 BS-MT1931320
...
77
BRACKET, Chute Gear BS-MT1732283F
...
78
BRACKET, Spring BS-MT1733422A
...
79
SPRING, Compression BS-MT164X37
...
80
PIN, Universal Joint BS-MT578060
...
81
BLOCK, Universal Pivot BS-MT578063
...
82
PIN, Cotter BS-MT579493
...
83
SUPPORT, Chute Rod BS-MT1733737A
...
84
YOKE & TUBE ASSEMBLY, Chute BS-MT1733611
...
85
PIN, Hair Chute Gear BS-MT1501293
...
86
PIN, Clevis BS-MT578309
...
87
ROD & YOKE ASSEMBLY, Chute BS-MT1733182
...
88
SCREW, Hex Washer Head Taptite 5/16-18 x 1 BS-MT1960373
...
89
SPACER, Block BS-MT1733379A
...
90
NUT, Hex Flange Two-Way Lock, 5/16-18 BS-MT1935048
...
91
CAPSCREW, Hex Head, 5/16-18 x 1 G5 BS-MT1921333
...
92
CAPSCREW, Hex Head, 5/16-18 x 1-1/4 G5 BS-MT1921977
