1695000 Murray - ST1130S, Dual Stage Snow Thrower (2006)

Model: 1695000

Save Part Not Listed?

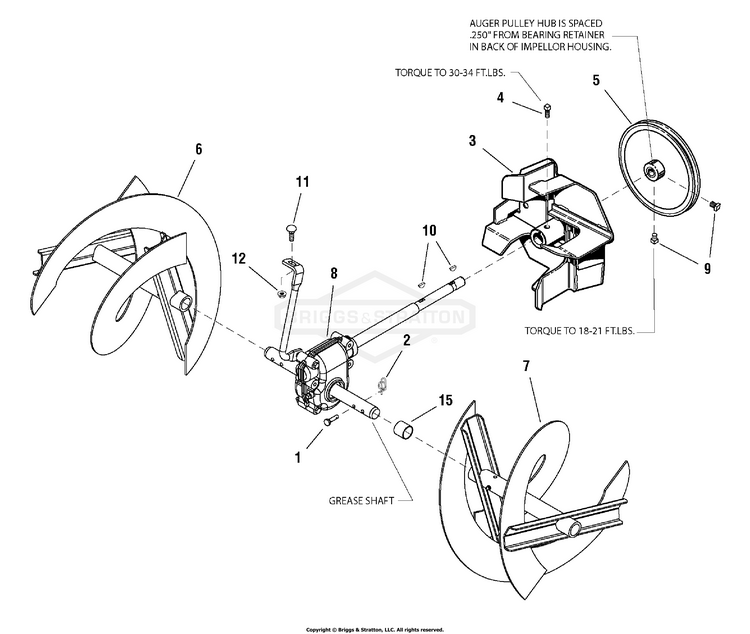

Auger Drive Group - 28", 30" & 32"

PIN, Shear BS-MT1668344

COTTER PIN, 1/4" Self Locking BS-MT7023590

IMPELLER ASSEMBLY BS-MT1612187A

SCREW, Set Square Head Cup Point, 3/8-16 x 1/2 G8 BS-MT1960474

PULLEY, 8.40 OD .752ID .720WD W/Hub BS-MT1732185

AUGER ASSEMBLY, 28" & 30" R.H. (Used On ST1028S & ST1130S) BS-MT1718785A

AUGER ASSEMBLY, 32" R.H. (Used On ST1332S) BS-MT1718787A

AUGER ASSEMBLY, 28" & 30" L.H. (Used On ST1028S & ST1130S) BS-MT1718784A

AUGER ASSEMBLY, 32" L.H. (Used On ST1332S) BS-MT1718786A

GEAR BOX ASSEMBLY BS-MT1732303

SCREW, Set Square Head Cup Point, 5/16-18 x 1/2 G8 BS-MT1928721

KEY, Woodruff BS-MT2818312

CARRIAGE BOLT, 5/16-18 x 3/4 G5 BS-MT1931333

NUT, Hex Flange Whiz Lock, 5/16-18 BS-MT1931277

TUBE (Used On ST1130S) BS-MT1733406
