1694997 Murray - ST8526, Dual Stage Snow Thrower (2006)

Model: 1694997

Back To Assemblies

Save Part Not Listed?
product name

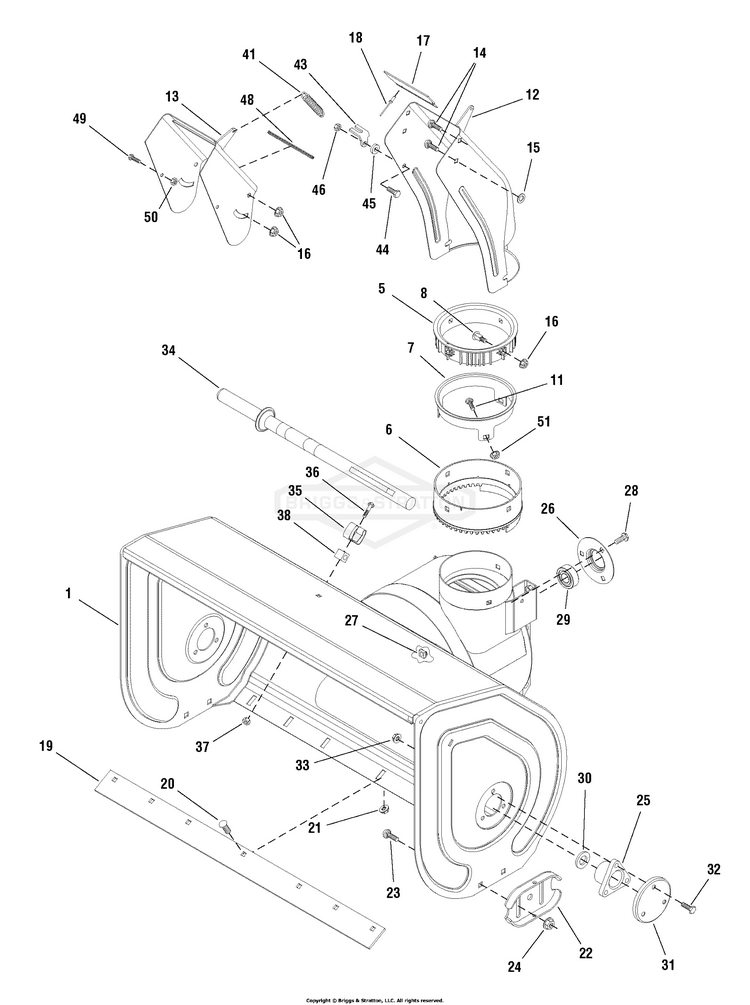

Auger Housing and Chute Group - 26" & 28"

...
...
1
HOUSING ASSEMBLY, 26" BS-MT1732294
...
1
HOUSING ASSEMBLY, 28" (Used On ST9528) BS-MT1733637
...
5
RING, Retainer, Inner (Used On ST8526) BS-MT337227
...
6
RING, Outer Chute BS-MT1734349
...
7
ADAPTER, Chute Ring 14GA BS-MT1732087
...
8
CARRIAGE BOLT, 5/16-18 x 1 BS-MT2X100
...
11
CARRIAGE BOLT, 5/16-18 x 5/8 G5 BS-MT1931332
...
12
CHUTE & BRACKET ASSEMBLY, Lower BS-MT761169E511
...
13
CHUTE ASSEMBLY BS-MT725631F
...
14
CARRIAGE BOLT, 5/16-18 x 3/4 G5 BS-MT1931333
...
15
WASHER BS-MT12021
...
16
NUT, Hex Flange ESNA, 5/16-18 BS-MT1960686
...
17
FLAP, Chute Insert BS-MT762322
...
18
RIVET, Pop BS-MT2831243
...
19
BLADE, Scraper for 28" (Used on Model ST9528) BS-MT1709947A
...
19
BLADE, Scraper 26" (Used On ST8526) BS-MT1732384A
...
20
CARRIAGE BOLT, 5/16-18 x 5/8 G5 BS-MT1960699
...
21
NUT, Hex Flange Two-Way Lock, 5/16-18 BS-MT1935048
...
22
SKID, Shoe Reversible BS-MT1727854A
...
23
CARRIAGE BOLT, 3/8-16 x 3/4 G5 BS-MT1960711
...
24
NUT, Hex Flange ESNA, 3/8-16 BS-MT1960687
...
25
BEARING, Auger BS-1665980SM
...
26
BEARING, Retainer BS-MT1665982A
...
27
RETAINER, Nut, 5/16-18 BS-MT1930659
...
28
SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4 BS-MT1960738
...
29
BEARING, Greased BS-MT1729578
...
30
SPACER BS-MT1663189
...
31
CAP, Bearing BS-MT1668639F
...
32
CAPSCREW, Hex Head, 5/16-18 x 7/8 G5 BS-MT1923325
...
33
NUT, Hex Flange Whiz Lock, 5/16-18 BS-MT1931277
...
34
STICK, Cleanout w/Brush BS-MT1733209
...
35
CLIP, Retainer BS-MT1501672
...
36
SCREW, Hex Washer Head Slot BS-MT2860604
...
37
NUT, Hex Lock 10-24 with Nylon Insert BS-MT1933896
...
38
BLOCK, Universal Pivot BS-MT578063
...
41
SPRING, Extension BS-MT1733455
...
43
BRACKET, Remote Chute (Item must pivot freely) BS-MT723120
...
44
CAPSCREW, Hex Head, 5/16-18 x 3/4 G5 BS-MT1921332
...
45
WASHER BS-MT73787
...
46
NUT, Hex Centerlock, 5/16-18 BS-MT1923362
...
48
EDGING, with Adhesive BS-MT1732533
...
49
BOLT, Shroud 1/4 x 5/16-1/4 BS-MT310088
...
50
NUT, Hex Flange Centerlock, 1/4-20 BS-MT1960608
...
51
NUT, Hex Keps Conical Washer, 5/16-18 BS-MT1960684
