1694997 Murray - ST8526, Dual Stage Snow Thrower (2006)

Model: 1694997

Save Part Not Listed?

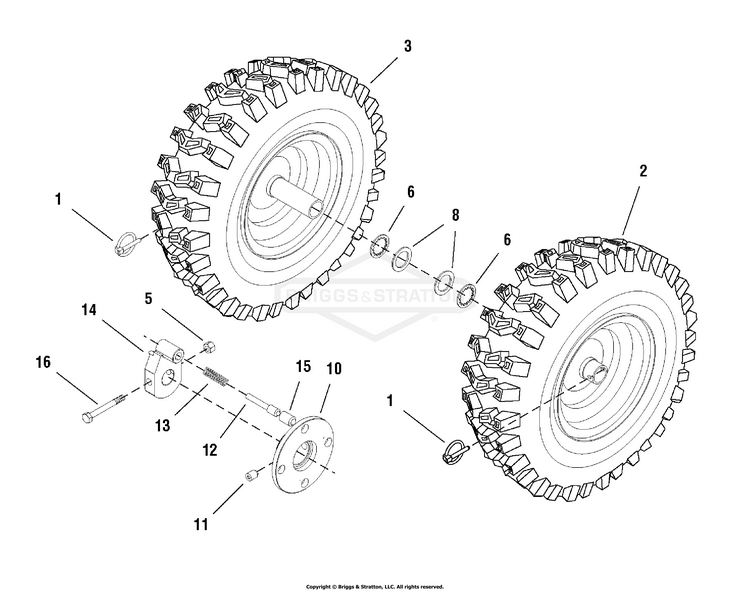

Wheels and Tires Group

PIN, Klik BS-MT1679697

WHEEL & TIRE ASSEMBLY, L.H. BS-MT1732826

WHEEL & TIRE ASSEMBLY, L.H. SNOW XTRAC 16 x 4.8-8 BS-MT1732996

WHEEL & TIRE ASSEMBLY, R.H. BS-MT1732825

WHEEL & TIRE ASSEMBLY, R.H. SNOW XTRAC 16 x 4.8-8 BS-MT1732997

NUT, Hex Lock ESNA Light, 1/4-20 NC3B Black (Used On ST9528) BS-MT1920397

RETAINING RING, Extertal, #75 0.750 Self Lock BS-MT1657528

WASHER, Flat .765 x 1.12 x .06 YZ BS-MT712120

DISC, Wheel Lock (Used On ST9528) BS-MT1501032E

SCREW, 3/8-16 x 1/2 Hex-18 (Used On ST9528) BS-MT2001066

PIN, Wheel Lock 1/4-20 0.7 (Used On ST9528) BS-MT1501856YZ

SPRING, Compression (Used On ST9528) BS-MT164X34

HUB, Wheel Lock Centered (Used On ST9528) BS-MT1501857

KNOB, Wheel Lock (Used On ST9528) BS-MT1501855

CAPSCREW, 1/4-20 x 2-1/4 Hex Head GR (Used On ST9528) BS-MT73839

Model: 1AHF08390

$16.00

In Stock

Replaced By :

Add To Cart Add To Cart

Save

View All Details
