1694997 Murray - ST8526, Dual Stage Snow Thrower (2006)

Model: 1694997

Back To Assemblies

Save Part Not Listed?
product name

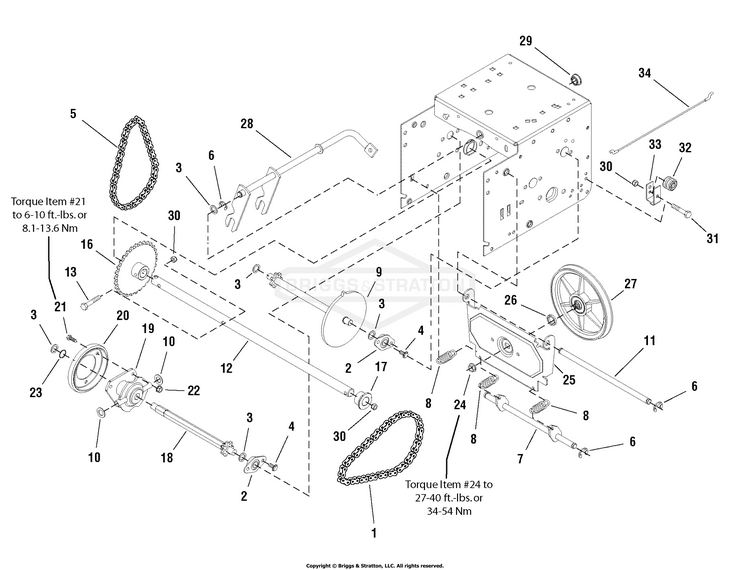

Traction Drive Group - Standard

...
...
1
CHAIN, Roller BS-MT579851
...
2
RETAINER & BUSHING ASSEMBLY BS-MT334163
...
3
WASHER BS-MT579858
...
4
SCREW, Hex Washer Head Taptite, 5/16-18 x 1/2 BS-MT1924856
...
5
CHAIN, Roller BS-MT579868
...
6
RETAINER, Ring 7/16 BS-MT11X30
...
7
SPRING LINK ASSEMBLY BS-MT1502105 YZ
...
8
SPRING, Extension BS-1736469YP
...
9
SPROCKET, Set BS-MT1501090
...
10
WASHER, 1/2 BS-MT1960027
...
11
AXLE, Swing Plate BS-MT1501092 YZ
...
12
AXLE, Bushing BS-MT1501563
...
13
BOLT, Hex 1/4-20 x 1-3/4 G8 BS-MT01X193
...
16
SPROCKET, Axle BS-MT1501089
...
17
BEARING, Axle D-Hole BS-MT1501114
...
18
HEX SHAFT & SPROCKET ASSEMBLY BS-MT1501100
...
19
HUB, Friction Wheel & Bearing BS-MT337029
...
20
WHEEL, Friction BS-MT1501435
...
21
CAPSCREW, Hex Head 1/4-20 x 5/8 G5 BS-MT1921959
...
22
NUT, Hex KEPS 1/4-20 BS-MT1928372
...
23
RING, Retaining Extension BS-MT579859
...
24
NUT, 3/8-24 Flange Lock BS-MT15X114
...
25
PLATE, Swinging BS-MT1501057 YZ
...
26
SPACER, Friction Pulley BS-MT1501158
...
27
FRICTION PULLEY ASSEMBLY BS-MT1501115
...
28
SPEED SELECT ASSEMBLY BS-MT1501110 YZ
...
29
BEARING, Flange BS-MT579944
...
30
NUT, Hex Lock ESNA Light 1/4-20 BS-MT1920397
...
31
CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5 BS-MT1922837
...
32
SPOOL CABLE, Auger Control BS-MT579860
...
33
BRACKET, Cable Spool BS-MT1501059 YZ
...
34
CABLE, Front Drive Lower All BS-MT1501122
