product name

1694875 Murray - Power Source

Model: 1694875

Save
 Part Not Listed?Part Not Listed?
product name

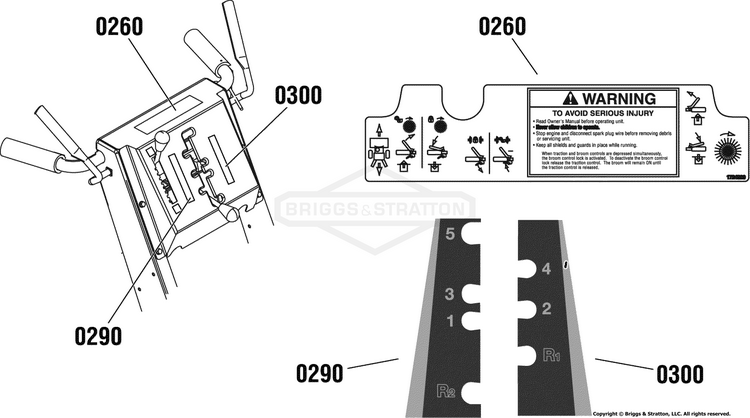

Decal Group

...
...
0260
DECAL, Dash BS-1724620SM
...
0290
DECAL, Shift Pattern, RH BS-1714245SM
...
0300
DECAL, Shift Pattern, LH BS-1714246SM

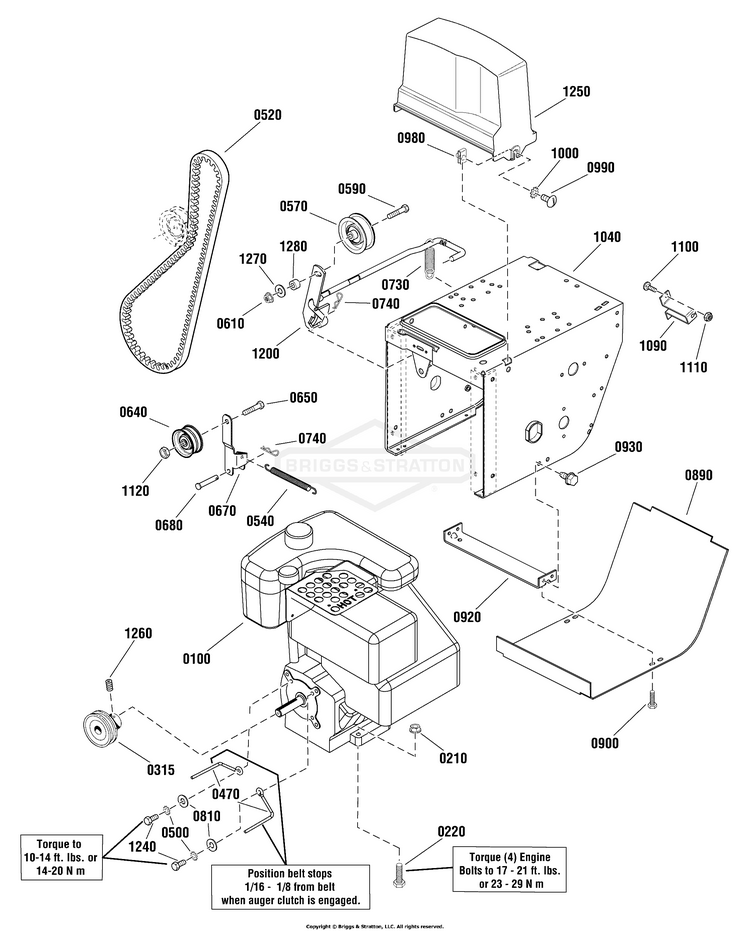

Engine & Frame Group

...
...
0100
*ENGINE, 9.0HP KOHLER (Models Series: PH-951501) BS-PH-951501
...
0210
NUT, Hex Flange 5/16-18 BS-2831277SM
...
0220
SCREW BS-704288
...
0315
PULLEY, Double BS-1676493SM
...
0470
STOP, Belt BS-1731178SM
...
0500
LCKWSHR BS-703116
...
0520
V-BELT, 3L BS-1676461SM
...
0540
KIT, SNOW, PIVOT SPRING, PRO BS-1687980
...
0570
PULLEY, Idler BS-1726348SM
...
0590
BOLT, 3/8-16X1.75 BS-703812
...
0610
LOCKNUT BS-703793
...
0640
PULLEY, Idler BS-1668477SM
...
0650
SCREW, Hex Head, 3/8-16 x 1-1/2 BS-1960647SM
...
0670
ARM, Idler BS-1703046ASM
...
0680
PIN BS-703145
...
0730
SPRING BS-703144
...
0740
PIN, 13X1.19 BS-703430
...
0810
WASHER, 5/16 BS-1919326SM
...
0890
COVER, Bottom BS-706523
...
0900
SCREW, HEX, 1/4-20X.5 BS-704130
...
0920
SUPPORT, TIE BAR BS-1727004BMYP
...
0930
SCREW, 5/16-18 X .75 BS-703228
...
0980
NUT, SPEED, 5/16-18 L BS-1935255SM
...
0990
SCREW, 5/16-18 X 3/4, Slotted Truss Head, Blk BS-1918249SM
...
1000
LOCKWASHER, External Tooth 5/16 BS-2820426SM
...
1040
FRAME BS-706524
...
1090
SUPPORT, CLUTCH CABLE BS-1720404BMYP
...
1100
BOLT,1/4-20X.75 BS-703101
...
1110
NUT, HEX KEPS, 1/4-20 BS-703061
...
1120
NUT, Hex, Top Lock 3/8-16 BS-1928731SM
...
1200
CLUTCH, ROD BRAKE ARM BS-1729646BMYP
...
1240
CAPSCREW, Hex Head 5/16-24 x 3/4 BS-1921515SM
...
1250
COVER, Belt BS-1724630
...
1260
SCREW, Set, Square Head 5/16-18 x 5/8 BS-1930540SM
...
1270
WASHER, FLAT BS-703878
...
1280
SPACER BS-1667811SM

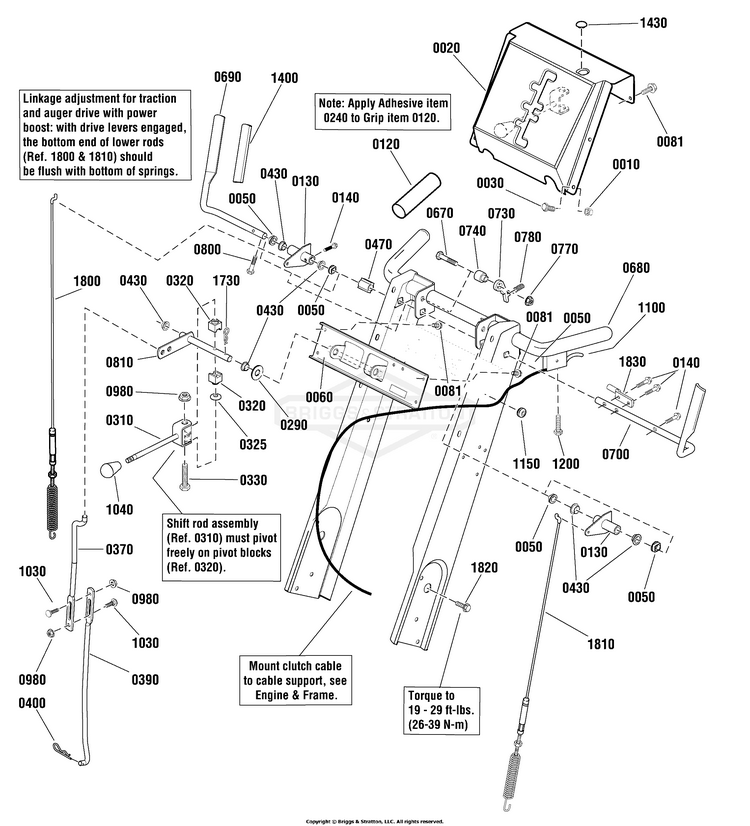

Handles & Controls Group

...
...
0010
NUT BS-703161
...
0020
DASHBOARD BS-1667800ZSM
...
0030
CAPSCREW-HEX WSHR HD BS-1935450SM
...
0050
BUSHING BS-1732732SM
...
0060
BRKT, SHIFT CONTROL BS-1723935BMYP
...
0081
BOLT, GR5, 1/4X.0750 BS-703466
...
0120
GRIP, Black BS-1726317SM
...
0130
LEVER, Clutch Assembly BS-1725205ASM
...
0140
SCREW, Washer Head 12-24 x 1 BS-1960471SM
...
0290
WASHER, FLAT BS-703451
...
0310
ROD ASSEMBLY BS-703053
...
0320
BLOCK, PIVOT BS-703050
...
0325
WASHER, Curved BS-1668681SM
...
0330
SCREW, Hex Whiz Lock 1/4-20 x 2 1/4 BS-1960705SM
...
0370
ROD, 11 3/8 Long BS-1726304SM
...
0390
ROD, 15 5/16 Long BS-1666255SM
...
0400
PIN, 13X1.19 BS-703430
...
0430
BUSHING, 1/2 - 3/4 x 1/4 BS-1668185SM
...
0470
GUIDE, CONTROL BS-703213
...
0670
SCREW, 5/16-18 x 1-1/2, Hex Flange, Whiz Lock BS-1933689SM
...
0680
HANDLE ASSEMBLY BS-1729855JSM
...
0690
HANDLE, Clutch RH BS-1727128SM
...
0700
HANDLE-CLUTCH LH FORM BS-1727127SM
...
0730
LATCH, CONTROL BS-703214
...
0740
SPACER BS-703049
...
0770
NUT BS-703115
...
0780
SPRING, Free Hand BS-1750475YP
...
0800
SCREW BS-703162
...
0810
PIVOT BS-703052
...
0980
NUT, HEX KEPS, 1/4-20 BS-703061
...
1030
BOLT,1/4-20X.75 BS-703101
...
1040
KNOB BS-1732470SM
...
1100
HANDLE & CABLE ASSEMBLY BS-1718791SM
...
1150
GROMMET, 1/2 BS-1664022SM
...
1200
SCREW, Pan head BS-1725702SM
...
1400
GRIP, Handle Clutch BS-1668608SM
...
1430
PLUG, Button BS-1724489SM
...
1730
PIN, 3/32 X 1.6 BS-703300
...
1800
CABLE & SPRING ASSEMBLY, Auger, R.H., ZC/YL BS-1735148SM
...
1810
CABLE & SPRING ASSEMBLY, LH BS-1728115SM
...
1820
SCREW, Hex Head Serrated Flange Tapping, 5/16-18 X 1 BS-1960729SM
...
1830
ROD, Control BS-1677453SM

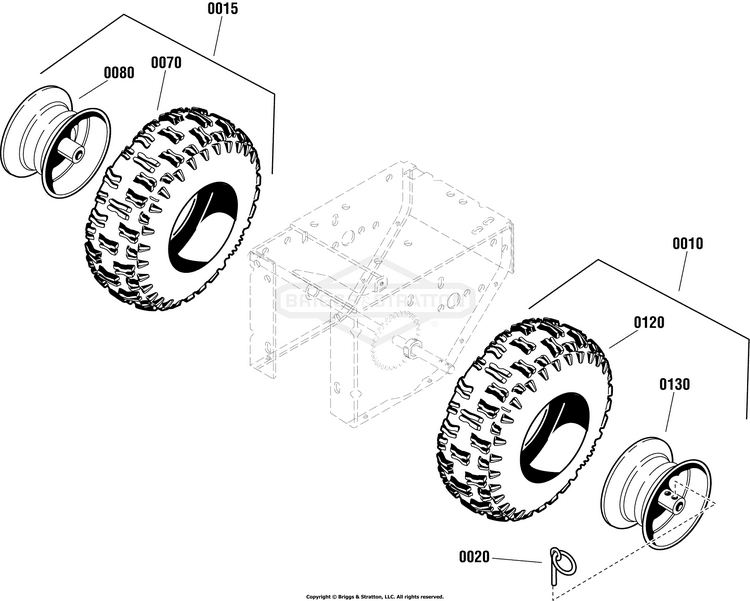

Tire & Wheel Group

...
...
0010
WHEEL & TIRE ASSEMBLY, LH (Includes Reference Numbers 3, 5 & 7) BS-1720306SM
...
0120
TIRE, "Snow Hog" (1691707 & 1691708 only) BS-1612000SM
...
0130
HUB, Wheel, LH BS-1720307SM
...
0015
WHEEL & TIRE ASSY. (1691707 & 1691708 only) BS-1714235SM
...
0070
TIRE, "Snow Hog" (1691707 & 1691708 only) BS-1612000SM
...
0080
WHEEL & HUB ASSY. BS-1714242SM
...
0020
PIN BS-703160

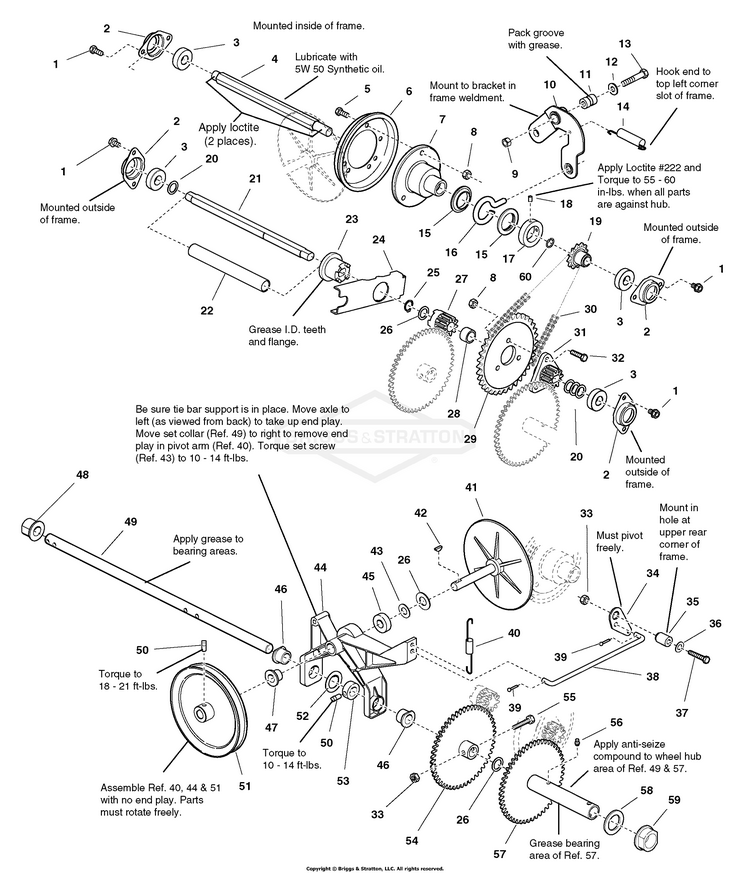

Traction Drive Group

...
...
1
SCREW, 5/16-18.625 BS-703949
...
2
RETAINER, BEARING BS-703155
...
3
BEARING, BALL 11/16X1 BS-1705897SM
...
4
SHAFT, Hex, 3/4 x 11-3/8 Lg, w/Groove BS-1736100SM
...
5
CAPSCREW, 5/16-18X.75 BS-704287
...
6
DISC, Friction with Insert BS-1725428SM
...
7
HUB, Friction Disc BS-1665995SM
...
8
NUT, Hex KEPS, Conical Washer, 5/16-18 BS-703222
...
9
NUT, 3/8-16 Hex Flange Esna, Black BS-703158
...
10
ARM ASSEMBLY, Shift with Bushing BS-1669256
...
11
BUSHING, 19/50 ID x 3/4 OD x 1-3/100 LG BS-1666114
...
12
WASHER, FLAT BS-703878
...
13
CAPSCREW, 3/8-16X2 BS-703589
...
14
SPRING-EXTN BS-703157
...
15
COLLAR, Thrust, 1-1/4 ID x 2 OD BS-1678956SM
...
16
PIN, LOOP 3/8 Dia. x 2-3/32 Lg BS-1666207SM
...
17
COLLAR, Set, 1.251 ID x 2.00 OD x .50 Long BS-1667335SM
...
18
SET SCREW BS-703139
...
19
SPROCKET, 10 Tooth BS-1726931SM
...
20
WASHER, 5/8 BS-2860164SM
...
21
JACKSHAFT, Double D BS-1718752SM
...
22
SPRING, Compression BS-1720298SM
...
23
CLUTCH, Sliding, 1/5LG, Powdered Metal BS-1718689SM
...
24
ARM, CLUTCH, E-COAT BS-1720078BMYP
...
25
RETAINER, EXT, 3/4 BS-703979
...
26
WSHR BS-703151
...
27
GEAR, 10 Tooth, Stationary, Clutch BS-1718688SM
...
28
SPACER BS-703154
...
29
SPROCKET, 36 Tooth BS-1667330SM
...
30
CHAIN, Roller, 22" Lg BS-1666980SM
...
31
GEAR, 10 Tooth, Double D BS-1718687SM
...
32
CAPSCREW, 5/16-18X1 BS-703585
...
33
NUT BS-703115
...
34
BELLCRANK BS-1700473SM
...
35
BUSHING BS-703121
...
36
WASHER BS-703332
...
37
SCREW BS-704288
...
38
ROD, Pivot, 9-15/100 LG BS-1726467SM
...
39
PIN, 13X1.19 BS-703430
...
40
SPRING BS-703148
...
41
DRIVE DISC with SPINDLE BS-1719879SM
...
42
KEY, 3/16X.625 BS-703891
...
43
WASHER, 5/8 BS-703580
...
44
PIVOT ARM (Includes Ref. Nos 45, 46, 47 & 48) BS-1755734YP
...
45
BALL BEARING, Auger Axle BS-1665521SM
...
46
BUSHING, 3/4 ID x 1 OD x 3/4 LG, Powdered Metal BS-1666425SM
...
47
BUSHING, 5/8 ID x 13/16 OD x 3/4 LG, Powdered Metal BS-1666855SM
...
48
BUSHING, 377/100 ID x 1-13/100 OD x 1 LG, Powdered Metal BS-1666001SM
...
49
AXLE BS-1720299SM
...
50
SCREW, Square Head Set, 5/16-18 x 1/2 G8 BS-1928721SM
...
51
WELDMENT, PULLEY ASSY BS-703147
...
52
WASHER BS-1919394
...
53
COLLAR BS-703150
...
54
GEAR & HUB ASSEMBLY, 50 Tooth BS-1720300SM
...
55
CAPSCREW, Hex Hd., 5/16-18 x 1-1/2 BS-1930570SM
...
56
FITTING, Lube, 1/4-20 Tapered BS-2812808SM
...
57
GEAR & HUB ASMY W/BUS BS-1755727YP
...
58
WASHER, 1-3/16 BS-2860169SM
...
59
BUSHING BS-1720305SM
...
60
RING, Retaining BS-2172206SM
...
...
...
