1694863 Murray - 44" Mower Deck

Model: 1694863

Save
 Part Not Listed?Part Not Listed?
product name

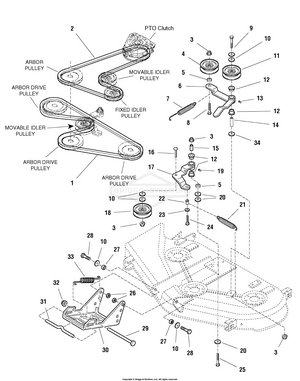

44" Mower Deck - Clutch & Support Group

...
...
1
BELT, 83.1 BS-1721532SM
...
2
V-BELT, P.T.O. 44" Mower Deck BS-1727773SM
...
3
NUT, Hex Flange, 3/8-16 BS-1960339SM
...
4
PULLEY, Idler BS-2171247SM
...
5
SPACER BS-1667811SM
...
6
WELDMENT, Idler Arm BS-1726815ASM
...
7
SPRING, Extension BS-1714062SM
...
8
BOLT, 3/8-16X1.75 BS-703858
...
9
CAPSCREW,3/8-16X3.25 BS-703874
...
10
WASHER, FLAT BS-703878
...
11
PULLEY, Idler (Includes Ref. Nos. 12 & 13) BS-1706510SM
...
12
BUSHING-0.628IDX BS-1676148SM
...
13
FITTING, Lube, 1/4-20 Tappered BS-2812808SM
...
14
SPACER, Hardened BS-1657242SM
...
15
SPACER-0.39 IDX0.625O BS-1674669SM
...
16
CARRIAGE BOLT, 3/8-16 x 1-1/4, G5 BS-1960268SM
...
17
LEVER ASSEMBLY, Idler (Includes Ref. Nos. 12 & 19) BS-1718561SM
...
18
PULLEY, Idler BS-1724387SM
...
19
ZERK, FITTING, 1/4 BS-703907
...
20
WASHER, .406X1.5X.12 BS-703591
...
21
SPRING, Extension BS-1656936SM
...
22
SPACER BS-1701159SM
...
23
WASHER BS-703332
...
24
CAPSCREW, Hex Head, 1/4-20 x 1-1/6 BS-1933958SM
...
25
BOLT BS-84007037
...
26
NUT BS-703117
...
27
SPACER, Powdered Metal BS-1708973SM
...
28
HHCS,3/8-16X1.250,GR8 BS-703969
...
29
ROD, Hitch, 1/2 x 7-5/8 BS-1713578SM
...
30
HITCH BS-1727593A
...
31
ROD, 3/8 x 8 BS-1715759SM
...
32
PUSHNUT, CAP TYPE BS-703179
...
33
SPRING, Extension, 4-1/8 BS-2156302SM
...
34
WASHER BS-704128

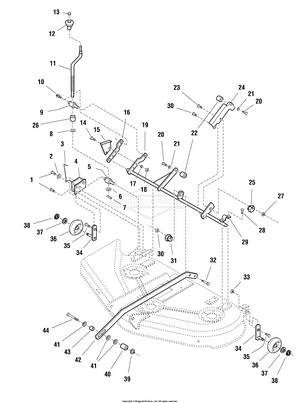

44" Mower Deck - Height Adjustment Group

...
...
1
SCREW BS-703167
...
2
WASHER, 5/16 BS-703298
...
3
ROD, Indicator Height of Cut BS-1704114SM
...
4
PLATE & BRACKET ASSEMBLY, Guage Wheel BS-1726424ASM
...
5
TRUNNION, 1-1/4 BS-1724009SM
...
6
WASHER, Detent BS-1704097SM
...
7
PIN-SPRING .188 X 1.0 BS-2816001SM
...
8
WASHER, 0.516IDX1OD BS-703853
...
9
TRUNNION, 1-1/4 BS-1715892SM
...
10
ZERK, FITTING, 1/4 BS-703907
...
11
CRANK, Height Adjustment BS-1727681SM
...
12
KNOB, Spinner, Soft BS-1714084SM
...
13
PUSHNUT, 3/8 BS-703948
...
14
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
15
BRKT, HEIGHT OF CUT E BS-1704116BMYP
...
16
ARM, Rear BS-1726409ASM
...
17
LCKWSHR BS-703116
...
18
HN, 5/16C GR5 YZ BS-7091511SM
...
19
ARM ASSEMBLY, Roller Bar 44" BS-1727768ASM
...
20
SCREW BS-703407
...
21
LOCKWASHER, SPLIT 3/8 BS-703454
...
22
SPACER, Support BS-1716010SM
...
23
BOLT, 5/16-18X1.25 G5 BS-703446
...
24
ARM, Rear Adjustable BS-1718136ASM
...
25
CAM, Eccentric, Hex BS-1714879SM
...
26
SPACER, .66 X 7/8 X 1 1/4 BS-1709195SM
...
27
NUT, Hex Flange Collar Lock, 5/16-18 BS-2860643SM
...
28
SCREW, 5/16-18 X .75 BS-703228
...
29
STRAP, ROCKER SHAFT BS-1761690HYP
...
30
NUT, Hex Flange, 3/8-16 BS-2860681SM
...
31
NUT, Hex Adjusting, 11/16 BS-1704082SM
...
32
BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2 BS-1931352SM
...
33
NUT, HEX FLNG, 1/4-20 BS-703916
...
34
SHAFT & BAR ASSEMBLY, Roller Fixed Arm BS-1716020ASM
...
35
CAPSCREW, Hex Head, 1/4-20 x 3/4, G5 BS-1923341SM
...
36
GAUGE WHEEL BS-1714760SM
...
37
WASHER BS-703128
...
38
RETAINER, RING, 1/2 BS-703976
...
39
NUT, CNTR LCK, 3/8-16 BS-703893
...
40
SPACER BS-1674440SM
...
41
WASHER BS-704128
...
42
ARM, Pitch 44" BS-1729653SM
...
43
SPACER-0.385IDX0 BS-1611705SM
...
44
CAPSCREW, 3/8-16X2 BS-703589

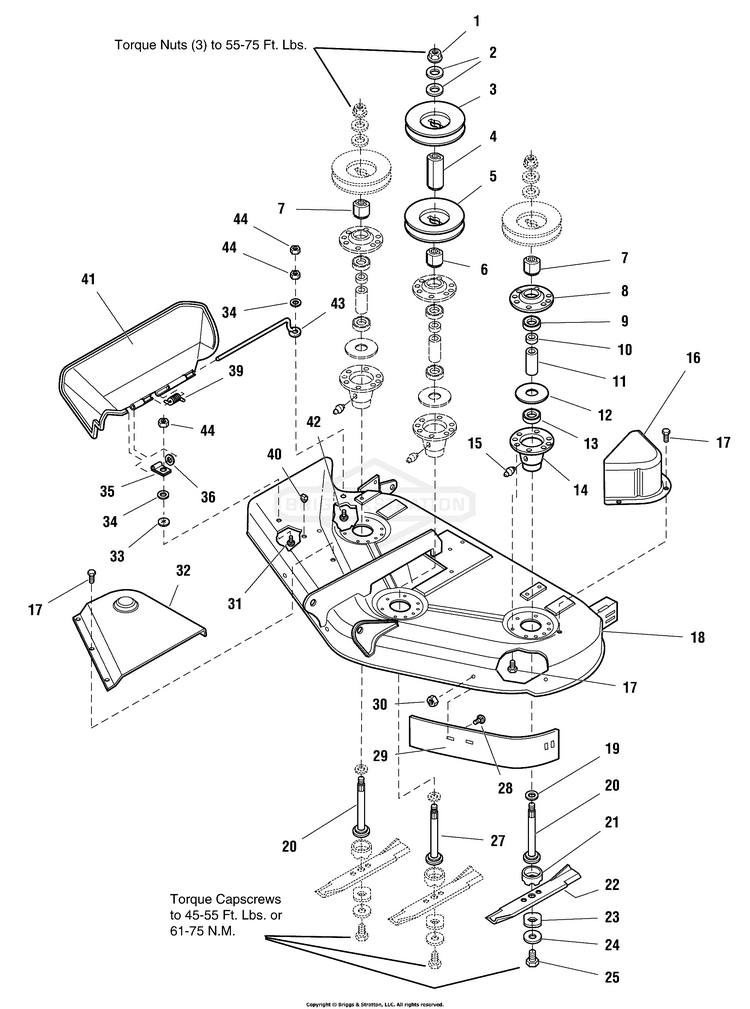

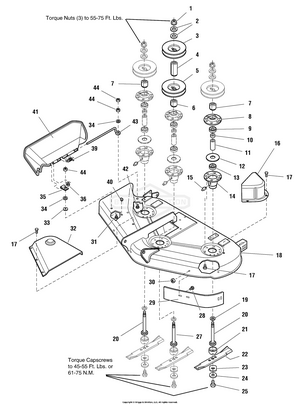

44" Mower Deck - Housing & Arbor Group

...
...
1
NUT, Hex Plange Non-Locking, 9/16-18 BS-1714419SM
...
2
WASHER, Bellville .56ID x 1.34 OD x .05T BS-1713675SM
...
3
PULLEY, LH, .49" Shallow-Groove OD 4" BS-1720387SM
...
4
HUB, Spacer, 2-13/32 BS-1713158SM
...
5
PULLEY, .49" Shallow-Groove OD 4.25" BS-1713098SM
...
6
HUB, 35/64 BS-1713533SM
...
7
HUB, Serated, 35/64 BS-1713197SM
...
8
HOUSING-ARBOR TOP - B BS-1655729ASM
...
9
BEARING, BALL BS-2108202SM
...
10
SPACER, Bearing Sleeve BS-1715724SM
...
11
SPACER, Tube BS-1732544SM
...
12
GASKET, Foam BS-1707335SM
...
13
BEARING, BALL 11/16X1 BS-1705897SM
...
14
HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting (Includes Ref. No. 15) BS-1713338ASM
...
15
ZERK, FITTING, 1/4 BS-703907
...
16
COVER, ARBOR BS-84002518
...
17
SCREW, 5/16-18 X .75 BS-703228
...
18
HOUSING ASSEMBLY, 44" Mower Deck BS-1729763C
...
19
WASHER, Cup BS-1713619SM
...
20
SHAFT, Arbor with Extruded Washers (short) BS-1713195SM
...
21
SHIELD, Grass, Lower Arbor BS-1713196SM
...
22
BLADE, 44" MULCH BS-1716696ASM
...
23
WASHER, Hex BS-1713089SM
...
24
WASHER, SPRING 0.475I BS-1656916SM
...
25
HHCS, 7/16-14X1.25 BS-703579
...
27
SHAFT, Arbor with Extruded Washers (Long) BS-1713612SM
...
28
BOLT, Round Head, Short Square Neck BS-703185
...
29
BAFFLE, Blowout, Short BS-1724538ASM
...
30
NUT, Hex Flange Whiz Lock, 5/16-18 BS-1927557SM
...
31
CARRIAGE BOLT, 1/4-20 x 7/8, G5 BS-1931318SM
...
32
COVER, Arbor BS-1703601SM
...
33
BOLT, PUSHNUT 1/4 BS-703826
...
34
WASHER, 1/4 BS-703229
...
35
CLAMP, WIRE, .312DIA BS-1704873SM
...
36
WASHER, 5/16 BS-1919326SM
...
39
Sring, Torsion BS-1723938SM
...
40
PLUG, Button BS-1705115SM
...
41
DEFLECTOR, Discharge BS-1705449SM
...
42
BOLT, 1/4-20 X 1.5 BS-704214
...
43
ROD-.283DIA 11.65LG D BS-1706709SM
...
44
SPACER, .66 X 7/8 X 1 1/4 BS-1709195SM
...
...
...
